Overview
The Schaller humimeter PMP provides non-destructive water-content measurements in supported paper and solid-board stacks. It complements sword humidity meters where a direct moisture-content reading is needed.
Key features

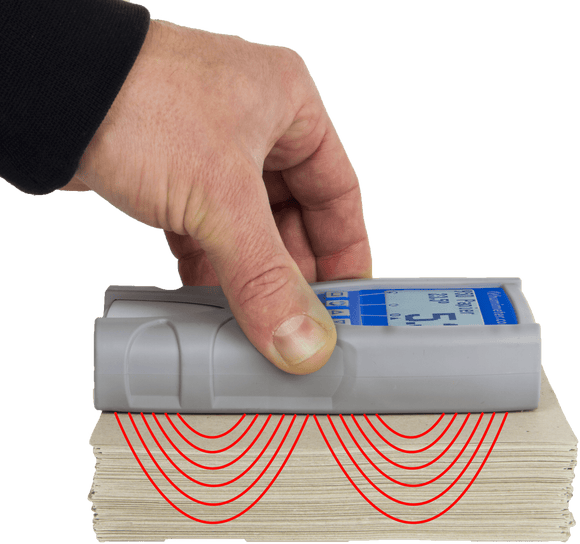

- Surface-contact measurement
- 20 mm nominal measuring depth
- Proof plate and wooden case included
Applications
- Paper stock quality
- Printing preparation
- Solid-board stack checks
Specifications
| Water content | 1–15% |
|---|---|
| Resolution | 0.1% |
| Nominal measuring depth | 20 mm |
| Operating temperature | 0–50 °C |
| Dimensions | 147 × 75 × 30 mm |
| Net weight | 265 g including batteries |
Included equipment and kit selection

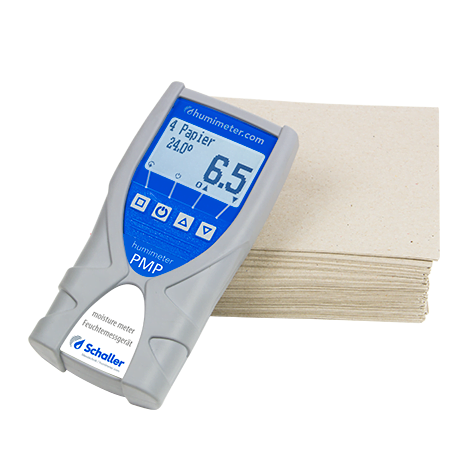

Meter 13770, protective cover, wooden case, proof plate and batteries. USB configuration adds module 12278, cable and LogMemorizer basic software. Certificate choices add factory material-moisture report 10600.
Optional accessories and selection notes
Select PM5 for paper-roll applications or RH5-series humidity measurement for corrugated board as appropriate. PMP is not offered as a universal roll or corrugated-board meter.
