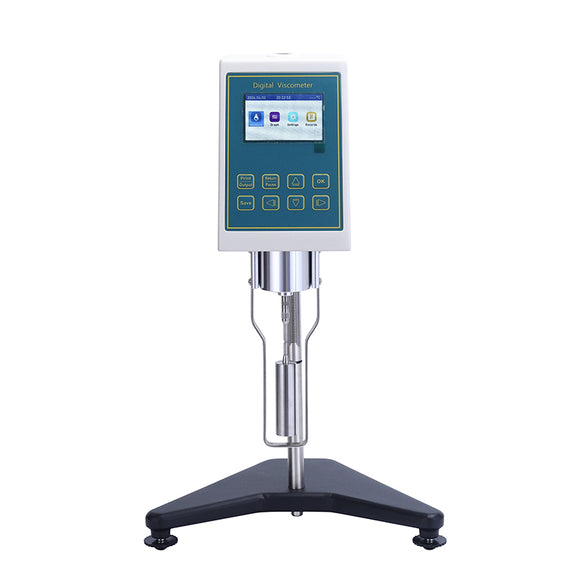

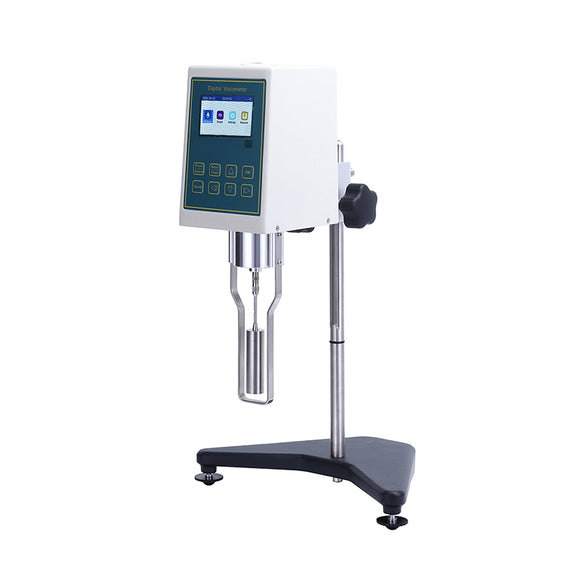

Digital Viscometer | Rotational Viscosity Tester – LV-C

Product Description:

The LV-C Digital Rotational Viscometer is a high-end viscosity measurement instrument designed for professional labs, research facilities, and production environments. With a wide measuring range of 6–1×10⁶ cps, this model is suitable for testing everything from low-viscosity liquids to high-viscosity gels and pastes.

The LV-C features a 3-inch TFT color display, real-time digital readings, and stepless rotor speed adjustment from 0.1 to 200 rpm, allowing for fine-tuned control across a wide variety of sample types.

It includes 4 standard rotors (#1–#4) with an optional #0 rotor for ultra-low viscosity samples. A temperature sensor is also included for accurate thermal readings during testing. The RS232 interface enables data output for lab records or printer logging.

Whether you work in R&D, quality control, or manufacturing, the LV-C provides fast, accurate, and repeatable viscosity measurements with modern digital convenience.

Key Features:

• Wide measurement range: 6 to 1×10⁶ cps

• Stepless speed control: 0.1–200 rpm

• High accuracy: ±1%, repeatability ±0.5%

• Viscosity resolution: 0.01 mPa·s

• 3-inch full-color TFT display for easy readability

• 4 rotors included: #1, #2, #3, #4

• Optional #0 rotor for ultra-low viscosity (0.1–100 mPa·s)

• Built-in RS232 port for PC/printer connectivity

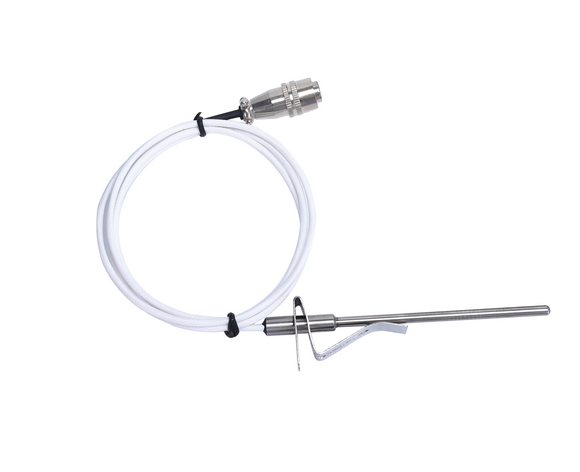

• Temperature sensor included (±0.1°C accuracy)

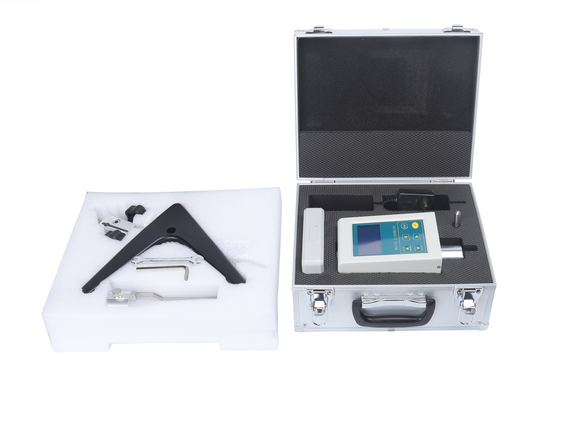

• Comes in a durable aluminum box with protective foam

Technical Specifications:

• Model: LV-C

• Display: 3-inch TFT full-color screen

• Measuring Range: 6–1×10⁶ cps

• Viscosity Readability: 0.01 mPa·s

• Accuracy: ±1%

• Repeatability: ±0.5%

• Rotor Speed: 0.1–200 rpm (stepless)

• Rotor Types: #1, #2, #3, #4 (standard); optional #0 rotor

• Temperature Sensor: Included (±0.1°C accuracy)

• Power Supply: AC110–240V DV5V / 5W

• RS232 Output: Included

• Working Environment: 5–40°C, ≤80% humidity

• Dimensions: 38 × 32 × 29 cm

• Weight: 6.0 kg

• Packing: Aluminum box + carton

Industries Used In:

• Paint and coatings

• Lubricants and greases

• Cosmetics and personal care

• Adhesives and sealants

• Pharmaceuticals

• Food and beverage QC

• Chemical R&D laboratories

Alternative Names:

High-Accuracy Viscometer
Digital Lab Viscometer
TFT Display Viscosity Meter
Rotational Viscosity Tester
Advanced Fluid Consistency Tester
