Product Description:

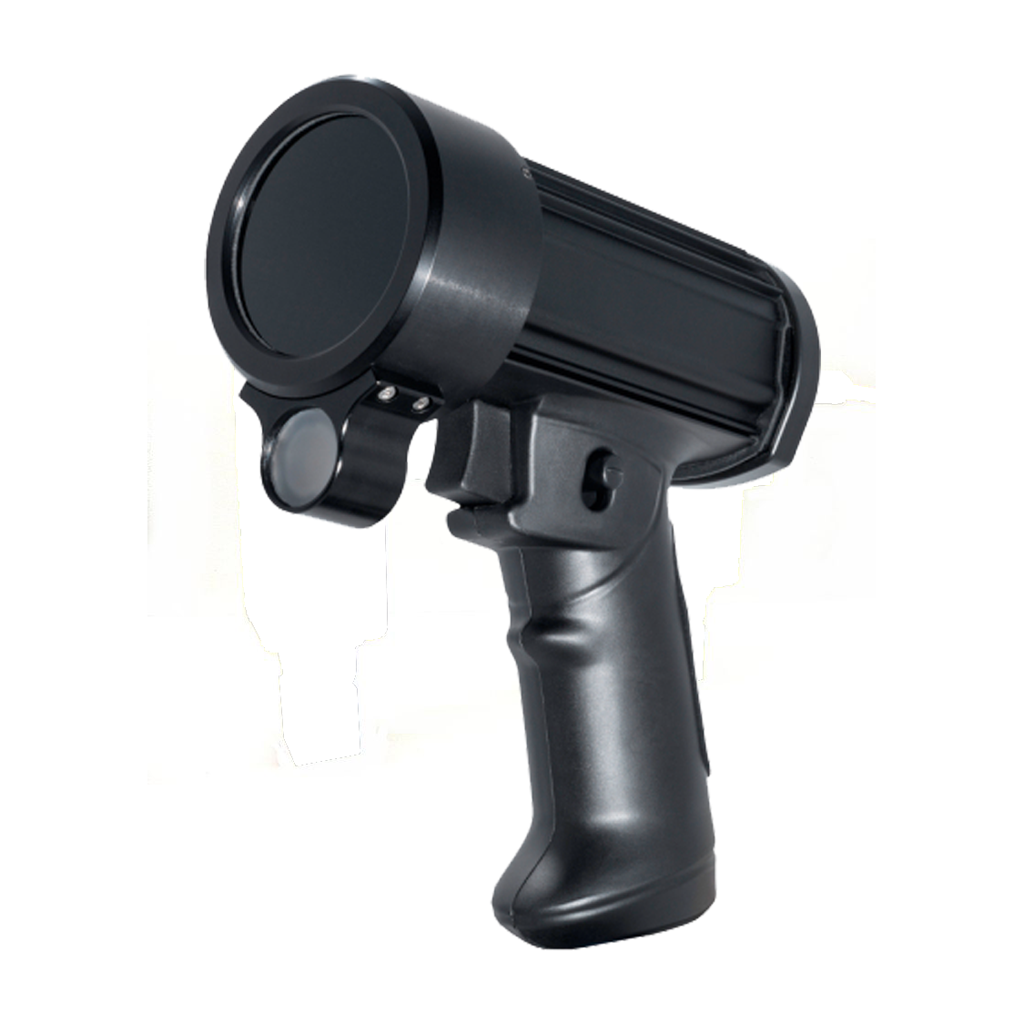

MR® 974 AN / MR® 974 Quattro-Light UV Inspection Lamp
Designed for professional UV inspection applications, the MR® 974 AN and MR® 974 models deliver powerful, uniform UV-A light with a compact, robust design. With 4 high-performance UV LEDs (365nm), a wide light distribution, and rugged IP64-rated housing, this lamp is ideal for both lab and field testing environments.
Key Features:
-
High UV-A Output: Approx. 45 W/m² (±10%) at 38 cm with a light cone diameter of 20 cm (≥10 W/m²).
-
4 UV-A LEDs + 1 White LED: Integrated white light for orientation with automatic switching (MR® 974 AN only).
-
Compact & Lightweight: Small form factor (L150 × H180mm, Ø70mm); weighs just 400–600 g.
-
Dual Power Options (MR® 974 AN):
-
Battery Mode: Up to 3 hours of operation on dual Li-ion 18650 batteries (3.7 V, 3400 mAh).
-
Mains Power: 100–230V AC (50–60 Hz), 12V DC converter.
-
-
White Light Filter: Ensures reduced visible light output (< 5 lx) for operator safety and better inspection clarity.
-
Robust Housing: IP64-rated—dust-tight and splash-proof for industrial environments.
-
Auto-Switch Feature (MR® 974 AN): Seamless transition from UV to white light for user convenience.
-
UV Risk Classification: Class 2 per DGZfP EM06.
-
Compliant with Rolls-Royce & ASTM E3022 Standards:
-
Calibrated to meet RRES 90061 Rev. 0 & ASTM E3022.
-
Certification available upon request.
-
Technical Specifications:
| Feature | MR® 974 AN | MR® 974 |
|---|---|---|
| UV Intensity (at 38 cm) | ~45 W/m² (±10%) | ~45 W/m² (±10%) |
| Light Cone Diameter | Ø 20 cm | Ø 20 cm |
| Wavelength (Peak) | 365 nm ± 3 nm | 365 nm ± 3 nm |
| White Light Output | < 5 lx | < 5 lx |
| Power Supply | Battery & Mains | Mains only |
| Battery Runtime | ~3 hours | – |
| Charge Time | ~8 hours | – |
| Cable Length | 5 m (optional 10 m) | 5 m (optional 10 m) |
| Weight | Approx. 600 g | Approx. 400 g |
| Dimensions | 150 × 180 mm, Ø70 mm | 150 × 180 mm, Ø70 mm |
| Protection Rating | IP64 (Dust & Splash Proof) | IP64 |
| LED Lifetime | ~10,000 hours | ~10,000 hours |
| Compliance | ASTM E3022, RRES 90061 | ASTM E3022, RRES 90061 |
