Tension Dynamometer PCE-MTS500-FD 300 KIT

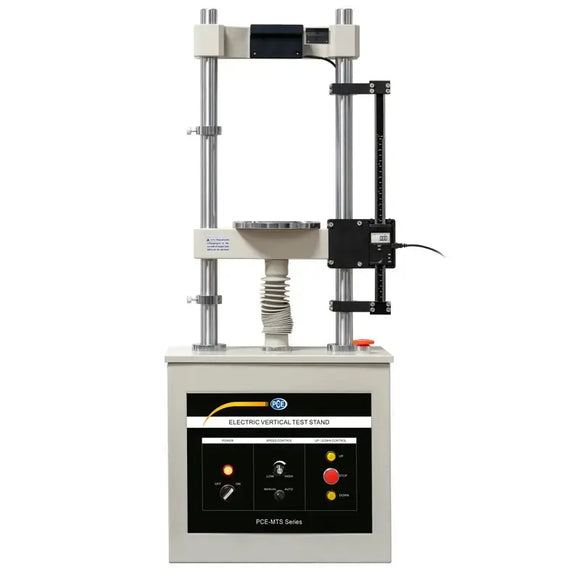

Motorized tension dynamometer test stand up to 5000 N, All force measuring devices of the PCE series with internal and external force measuring cell adaptable, Large stroke, Adjustable feed speed

The maximum force range of the motorized test stand is 500 kg. The use of the motorized test bench requires a power connection. The feed speed is variably adjustable between 30 mm/min and 230 mm/min. The precise measurement procedure is thus guaranteed with the motorized test stand. The force test stand is compatible with the following device series: PCE-FB series, PCE-FM series, PCE-LFG series and the PCE-PTR 200.

Attention: A force measuring device must always be ordered as an option for the motorized test stand!



Wherever the human body reaches its limits in terms of force measurement, the motorized test stand comes into play. The user of the motorized test stand is obliged to prepare a risk analysis. If it emerges from this that the type of application and the samples pose a risk to the user, a safety device may be required, especially in the case of the test stand operated by an electric motor.

*** N.B. The mounting plate ADP-UNI accessory must be ordered for internal load cell force gauges ***

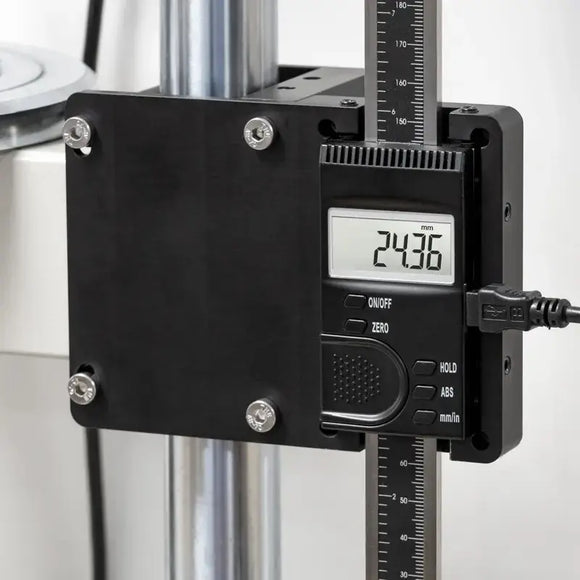

PCE-DFG FD 300 force-displacement adapter / Incl. software / 11 components

The PCE-DFG FD 300 is a useful extension to the material test stand PCE-MTS 500 in connection with a force measuring device (e.g. PCE-DFG N 5K). This extension allows force-displacement diagrams and curves to be created. The software included in the scope of delivery offers the user an optimized interface for evaluating diagrams and graphs. In this way, material tests can be carried out with forces of up to 5000 N (500 kg / 1102 lb).
