Tablet Hardness Tester FG-104T

R 9,250.00

Tax includedShipping calculated at checkout

Tomlin Tools SKU: FG-104T

Add R 2,000.00 more for FREE shipping!

Shipping
Ships in 5-10 business days

Warranty
1 year standard warranty

Description Specifications Downloads Shipping

Description

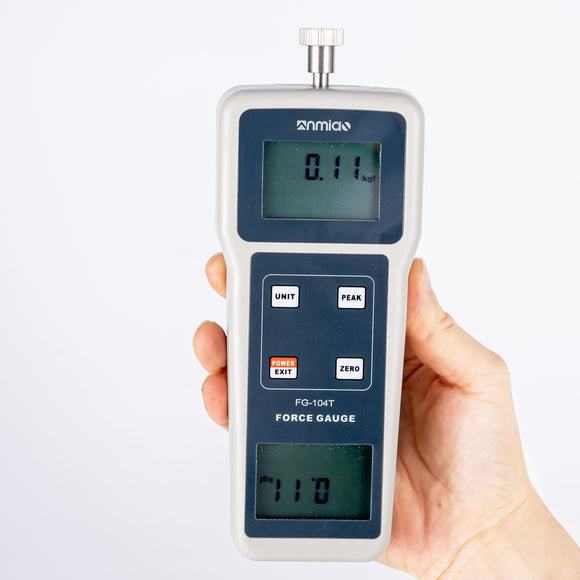

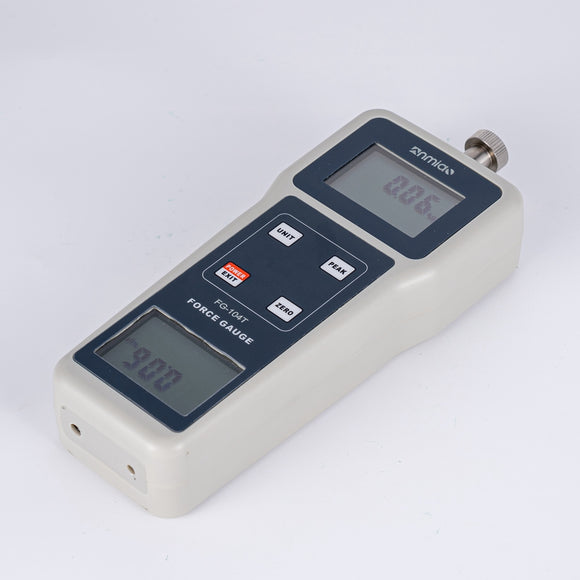

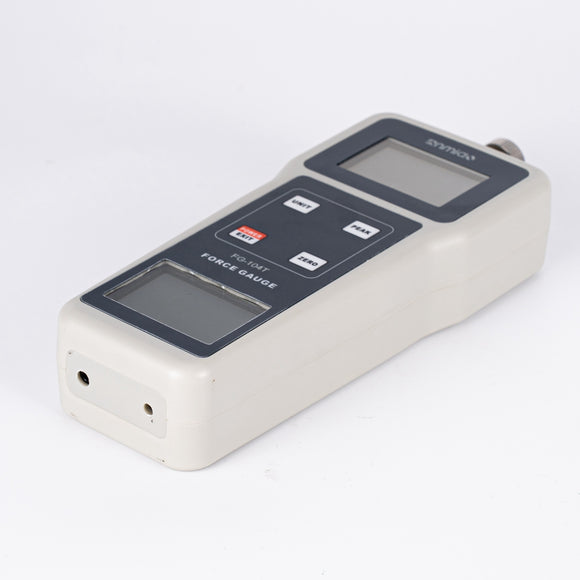

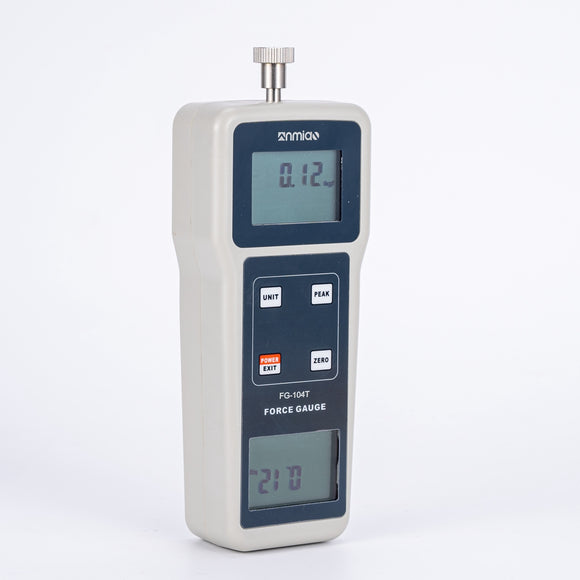

The TOMLIN FG-104T Tablet Hardness Tester is a high-precision, digital display tester specifically designed to evaluate the hardness of tablets. With easy operation, portability, and high-resolution measurements, it is ideal for use in both laboratory and industrial settings. The tester ensures reliable results within a recommended test range of 10%–100% of its full scale, with usage below 1% not advised.

Key Features

  • High Precision & Resolution: Delivers accurate measurements with an easy-to-read digital display.
  • Multiple Units of Measurement: Supports Newton (N), kilogram (kg), pound (lb), and gram (g) with simple unit conversion.
  • Peak Hold Function: Retains peak readings until manually reset.
  • Automatic Shutdown: Automatically powers off after 10 minutes of inactivity to conserve energy, or can be shut down manually.
  • Power Options: Operates on alkaline batteries or a 5V DC power supply for versatile use.
  • Fixture Zeroing: Includes a ZERO key to eliminate fixture weight for precise measurements.
  • Test Scope:
    • 0 kgf ~ 20 kgf
    • 0 N ~ 196 N
    • 0 F ~ 4426 F
  • Resolution:
    • 0.01 kgf, 0.1 N, 0.0126 F
  • Diameter of Test Range: 15 mm
  • Precision: ±0.5% FS (range) + 1 digital peak
  • Measurement Units: kgf, gf, N, lbf
  • Measurement Modes: Peak and instantaneous value
  • Display: Four-line liquid crystal display with directional and double-screen outputs

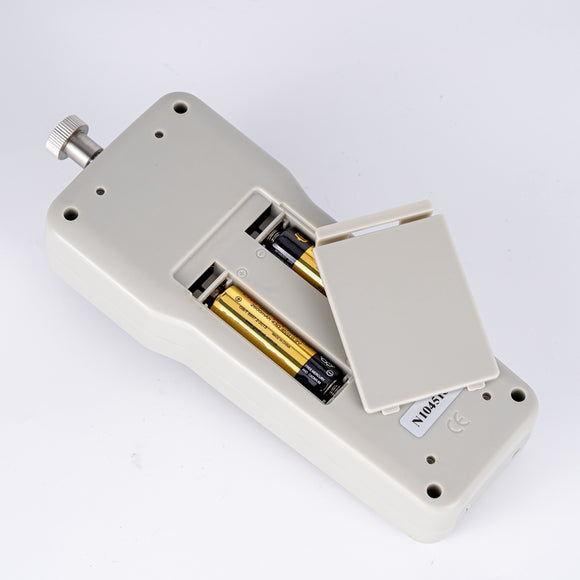

  • Power Supply: 2 alkaline batteries or 5V DC power supply
  • Working Temperature: 0°C ~ 50°C
  • Working Humidity: ≤80% RH
  • Weight: 390 g
  • Size: 211 mm x 80 mm x 36 mm

Standard Accessories

  • Main Unit
  • Calibration Fixtures

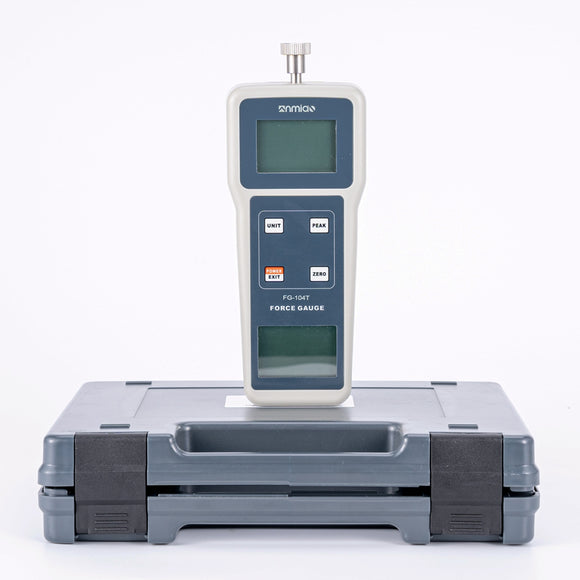

  • Carrying Case
  • Operation Manual

Applications

  • Tablet Manufacturing: Ensures uniform hardness for quality control during production.
  • Pharmaceutical Labs: Ideal for research and development purposes.
  • Industrial Use: Suitable for testing the hardness of small compressed objects in various industries.

Alternative Names

  • Digital Tablet Hardness Tester
  • TOMLIN FG-104T Hardness Analyzer
  • Pharmaceutical Tablet Tester

PDF Specification Sheet - Download Here
