Surface Roughness Tester 132C

Product Description:

The Surface Roughness Tester adopts computer technology and is compatible with four standards: ISO, DIN, and JIS. It is widely used in production sites to measure the surface roughness of various machinery-processed components.

Product Features:

High accuracy inductance sensor.
Measures multiple parameters: Ra, Rz.
Low power consumption indication.
Can measure surface roughness in various parts: planar, curved surface, small hole, slot, and irregular surface.
Electromechanical integration design with small volume and light weight.
Convenient with measuring value storage function and data storage query.
Uses DSP chip control and data processing for high speed and low power consumption.
LCD digital display with backlight function.
Provides USB data output for connection to a PC.
Offers the option for Bluetooth data output.
Product Parameters:

Measuring Range:
Ra: 0.05-10.00um/1.000-400.0uinch
Rz: 0.020-100.0um/0.780-4000uinch
Accuracy: ±15%
Fluctuation of display value: 10%
Resolution: 0.001?m, 0.01?m, 0.1?m

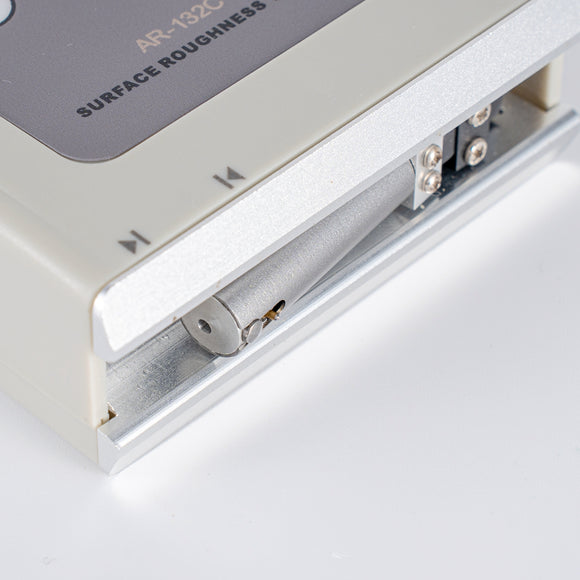

Probe:
Radius: 10?m
Material: Diamond
Measurement Force: 16mN(1.6gf)
Angle: 90°
Vertical Radius: 48mm
Maximum Driving Stroke: 12.5mm/0.5inch
Cutoff Length: 0.25mm, 0.8mm, 2.5mm
Driving Speed:
Measuring:
Sampling Length: 0.25mm, Vt: 0.135mm/s
Sampling Length: 0.8mm, Vt: 0.5mm/s
Sampling Length: 2.5mm, Vt: 1mm/s
Returning: Vt=1mm/s
Evaluation length: 1~2L cut off optional (0.25mm sampling length = 1L)

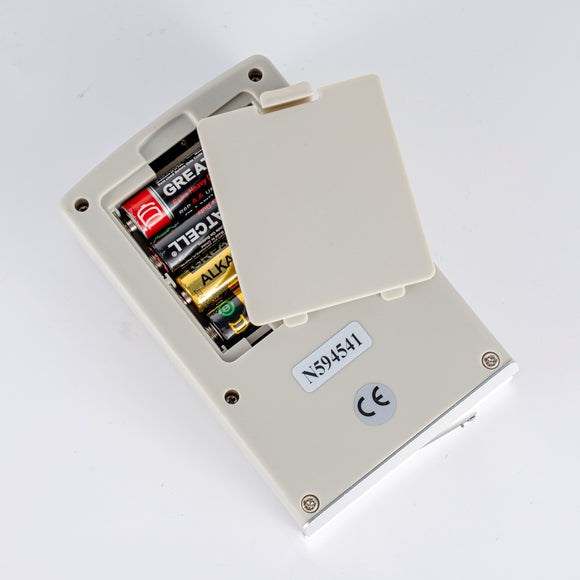

Power Supply: 4x1.5vAA Um-3 Battery
Size: 140x75x33 mm
Weight: 280 g (Not including batteries)
Product Accessories:

Standard Accessories:

Main Unit
Small Screwdriver

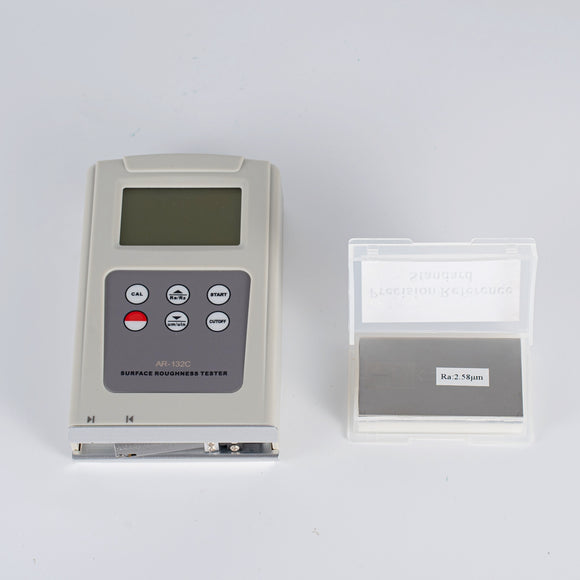

Standard Boilerplate
Standard Sensors

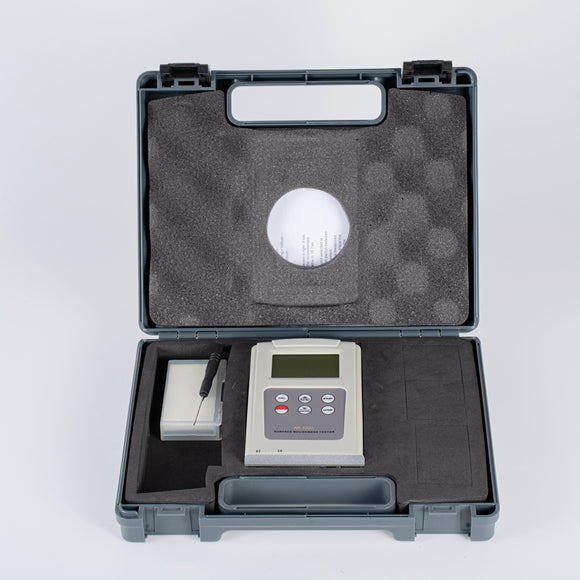

Carrying Case
Operation Manual
Optional Accessories:

USB data output
RS-232 data output
Bluetooth™ data output
Buying Guide:

When choosing the model number of the Amittari instrument, the default option is standard delivery. If you require other optional accessories, please inform our customer service representative. The following are three basic optional accessory choices:

Standard Accessories + USB data output
Standard Accessories + Bluetooth data output
Bluetooth Accessories:

Most Amittari instruments can be supplied with Bluetooth data output function (except a few instruments). Bluetooth data output is included in optional accessories and not part of the standard delivery. Please indicate the desired distance of 10 meters to 100 meters. For Bluetooth data output, kindly contact our customer service representative.
