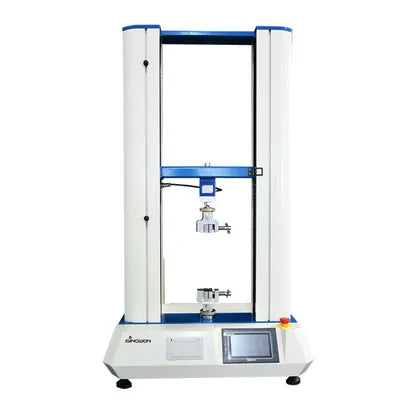

Twin Column Tensile Compression Testing Machine SL-8162
Product Introduction:
SL-8162 is a small tensile and pressure testing machine developed by our company, mainly suitable for industries such as hardware, rubber and plastic, paper products, color printing and packaging, adhesive tapes, luggage and handbags, textiles, pharmaceuticals, daily chemicals, food, wire electronics, etc. It can conduct tests on various materials, semi-finished products, and finished products in the forms of tension, compression, bending, bending, shearing, tearing, peeling, etc.
Optional:
- Additional 1m Heighten Single
Column Additional - Additional 1m Heighten Double
Column Additional - Additional Consumable Sensors (1-500kgf/ 1000-2000kgf/ 5000-10000kgf
- External Computer
Specifications:
| Model | SL-8162 | SL-8162B |
| Code# | 752-212 | 752-212B |
| Capacity | 2,5,10,20,50,100,200,500kg (optional) | |
| Displays | Power and Extension Display | |
| Accuracy | Better than ±1.0% | |
| Force resolution | 1/10, 000 | |
| Effective force measurement range | 1~100%F.S | |
| Accuracy of deformation indication | Better than ±1.0% | |
| Speed | 1～500mm/min, optional | |
| Max. Stroke | Max.700mm, grips excluded | |
| Effective test space | 300mm left and right, front and back | |
| Measurement unit switching | Kgf, gf, N, kN, Ibf | |
| Stress unit switching | MPa, kPa, kgf/cm2, Ibf/in2 | |
| Transformation unit switching | Mm, cm, in | |
| Stop method | Upper and lower limit safety settings, emergency stop button, program force and elongation settings, specimen damage detection | |
| Spotting method | Manual point selection and pre-set point selection (20 points) function during the test process | |
| PC Linked | N/A | Yes |
| Accessary | Standard Grips 1 pair, cable 1 pics, manual 1 set, quality pass 1 pics, warranty 1 pics | Standard Grips 1 pair, cable 1 pics, manual 1 set, quality pass 1 pics, warranty 1 pics |
| Dimension | Around 630*400*1100mm(W×D×H) | |
| Weight | Around 55kg | |
| Motor | AC servo | |
| Power | 1PH, AC220V, 50/60Hz, 10A or customized | |
Professional testing software meets the relevant provisions of more than thirty national standards such as GB228-87 and GB228-2002. It can also conduct testing and data processing according to GB, ISO, JIS, ASTM, DIN, and various standards provided by users, and has good scalability.
Downloads
Data Sheet Link
