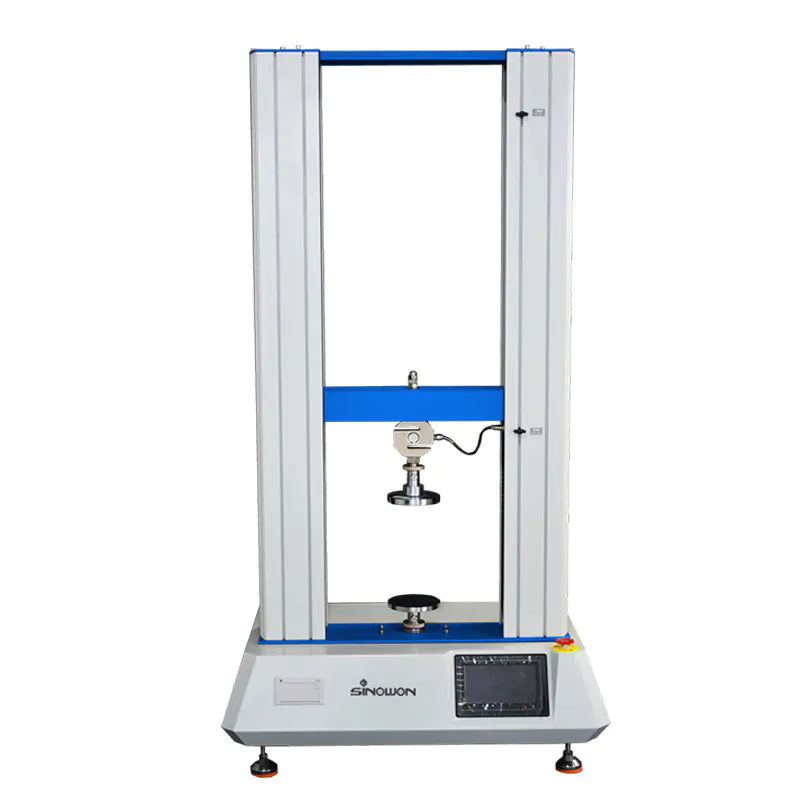

The SL-8160/ ST-1160 Universal Tensile Pressure Testing Machine is engineered for exceptional accuracy and ease of use, making it ideal for industries such as rubber and plastic, paper products, packaging, textiles, pharmaceuticals, food, electronics, and more. Capable of testing both finished and semi-finished products, it supports a wide range of physical property tests including tensile, compressive, bending, tearing, peeling, adhesion, and shear.
Key Features:
-

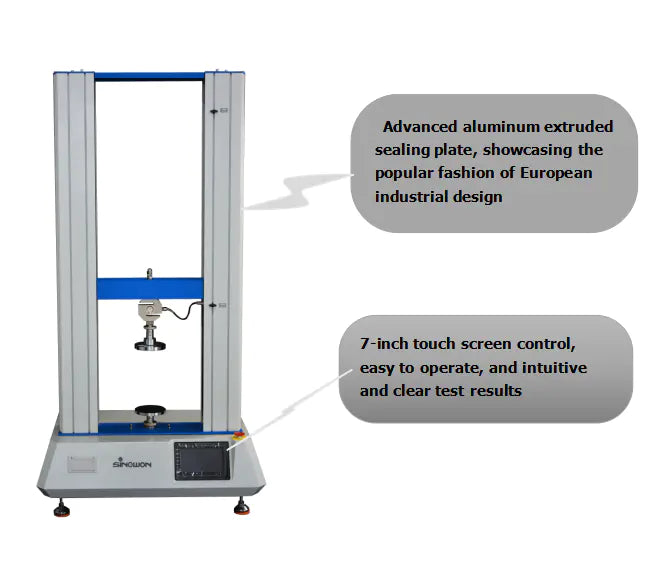

Advanced Industrial Design: Aluminum extruded sealing plate with European-inspired aesthetics, treated with advanced baking paint for durability.
-
Intuitive Operation: 7-inch touch screen for easy control and clear, real-time test results.
-
High Measurement Accuracy: Built-in high-precision, low-resistance rolling screw and guide column.
-
Flexible Testing: Compatible with multiple fixtures for different testing requirements.
-
Convenient Data Output: Results and curves can be displayed on a color LCD or printed instantly.
-
Reliable Performance: Stable operation, fast data acquisition, and easy maintenance.
Specifications:
| Model | SL-8160 | SL-8160B |
| Code# | 752-202 | 752-202B |
| Capacity | 500,1000,2000kg, optional | |
| Display | Power and Extension Display | |
| Accuracy |
Better than ±1.0% |
|
| Force resolution | 1/10,000 | |
| Effective force measurement range | 1~100%F.S | |
| Accuracy of deformation indication | Better than±1.0% | |
| Test speed range | 1～500mm/min | |
| Test maximum stroke | Max.1000mm, grip excluded | |
| Effective test space | Left, right 400mm, back and forth | |
| Power unit switching | Kgf, gf, N, kN, Ibf | |
| Stress unit switching | MPa, kPa, kgf/cm2, Ibf/in2 | |
| Transformation unit switching | mm,cm,in | |
| Stop method | Upper and lower limit safety settings, emergency stop button, program force and elongation settings, specimen damage detection | |
| Pointing Method | Manual point selection and pre-set point selection (20 points) function during the test process | |
| PC Linked | N/A | Yes |
| Standard items | 1 pair of standard fixtures, 1 micro printer, 1 equipment power cord, 1 operation manual, 1qualiy pass, and 1 warranty card | 1 pair of standard fixtures, 1 micro printer, 1 equipment power cord, 1 operation manual, 1qualiy pass, and 1 warranty card |
| Optional | PT-211 two-point extension fixture, various testing fixtures | |
| Dimension |
Around 780*420*1600mm(W×D×H) |
|
| Weight | Around 130kg | |
| Motor | AC Servo Motor | |
| Power | 1PH,AC220V,50/60Hz,10 or customized | |
Optional:
- Additional 1m Heighten Single
Column Additional - Additional 1m Heighten Double
Column Additional - Additional Consumable Sensors (1-500kgf/ 1000-2000kgf/ 5000-10000kgf
- External Computer
Professional testing software meets the relevant provisions of more than thirty national standards such as GB228-87 and GB228-2002. It can also conduct testing and data processing according to GB, ISO, JIS, ASTM, DIN, and various standards provided by users, and has good scalability.
Downloads
Data Sheet Link
