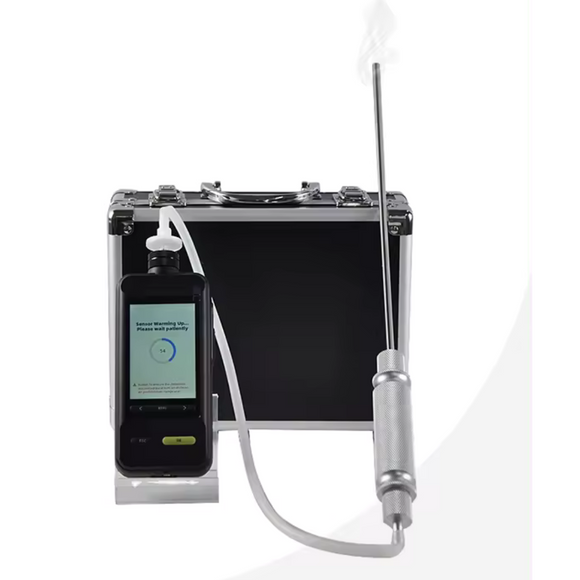

Oxygen Gas Detector SK1050E

Portable SKZ1050E-O2 Gas Detector

Features:

• 3.5-inch High-Definition Color Screen:
  • The outer casing is made of aviation wear-resistant material.
  • Adopts a 3.5-inch high-definition color screen with high resolution and a wide viewing angle.
• Flashlight Function:
  • Exclusive design with a built-in flashlight to illuminate dark environments, making underground work easier.
• Multi-Gas Detection:
  • Can simultaneously detect up to 1-4 gas concentrations with display mode switch for real-time gas concentration curves.
• Flexible and Adjustable Pumping System:
  • Built-in gas sampling pump with adjustable flow rate in ten steps, customizable for different environments.
• Multi-Layer Filter:
  • Three-layer filter unit efficiently filters oil, water, dust, and other impurities, ensuring reliable test results even in demanding industrial environments.
• Multiple Gas Display Units:
  • Display units can be switched, and concentration values are automatically converted by the system.
• Powerful and User-Friendly Operation:
  • Includes features such as timed shutdown, sensor overload protection, USB charging, and one-click screen capture for saving test data.
• Optional Functions:
  • Fall alarm function, 8G memory card for extensive data storage, PC software for data download and analysis, external Bluetooth printer, and more.

Specifications:

• Gas Detected: Oxygen (O₂)
• Detection Principle: Electrochemical principle
• Sampling Method: Built-in stable flow pump, adjustable in ten steps (0-500 mL/Min)
• Modular Structure: Can detect up to 1-4 kinds of gases
• Concentration Units: ppm, mg/m³, %VOL, %LEL
• Display: 3.5-inch color display, resolution 320*480
• Temperature and Humidity Detection Range:
  • Temperature: -20°C to 50°C, resolution: 0.1°C
  • Humidity: 0-99% RH, resolution: 1% RH (optional)
• Data Storage: Standard 16M capacity, optional 8G SD card for extended storage
• Communication and Data Download: USB port, optional PC software for Excel format download, Bluetooth printer support
• Wireless Transmission (Optional): Bluetooth, ZigBee, built-in DTU wireless module
• Print Options: Built-in or external Bluetooth printer
• Battery Capacity: 3800mA rechargeable polymer battery
• Filter Device: Multi-layer filter for efficient filtration
• Operating Temperature: -20°C to 50°C (optional flue gas sampling probe up to 600°C, 1200°C smoke concentration)
• Operating Humidity: 0-95% RH (no condensation)
• Explosion-Proof: Exic II CT3 Gc
• Alarm Mode: Buzzer, LED, and display prompt, including fault, pump abnormal, low battery, shutdown, and optional fall alarm
• Dimensions: 270*75*41mm
• Weight: 400g

Standard Accessories: Manual, warranty card, power charger, carrying case, water and oil filter, data cable

Optional Accessories: Bluetooth printer, pressure sensor, high temperature rod, metal extension rod, bendable rod, silicone hose, dry filter device, PC download software

Additional Information:

We offer gas detectors with various configurations, including built-in pumps and multiple sensors. For more information and to discuss specific requirements, please contact us.
