Product Description:

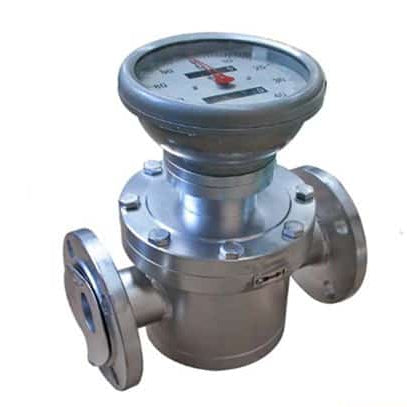

High-accuracy LC Series Oval Gear Flowmeter designed for measuring the flow of viscous, corrosive, and high-temperature liquids. Available in cast iron, cast steel, and stainless steel with analog, pulse, and digital output options. Ideal for petroleum, chemical, food, and pharmaceutical industries.
Product Highlights:
-
Flow Range: 0.03–340 m³/h (based on model & viscosity)
-
Accuracy: ±0.2% or ±0.5%
-
Output Signals: Pulse, 4–20mA, RS485
-
Materials: Iron casting, cast steel, 304/316 stainless steel
-
Viscosity Handling: Up to 2000 mPa·s
-
Temperature Range: -20°C to +200°C
-
Pressure Ratings: Up to 6.3 MPa
-
Display Types: Pointer, LCD, explosion-proof LCD
-
Applications: Petroleum, chemicals, food & beverage, pharmaceuticals, commerce, and health sectors.
Key Features:
-
High Precision Measurement:
Volumetric positive displacement design ensures stable, repeatable readings. -
Wide Viscosity Adaptability:
Handles liquids from 0.6 to 2000 mPa·s, including oils, acids, bases, and organic solvents. -
Multiple Materials & Configurations:
Choose between iron, cast steel, or stainless steel bodies to suit your medium. -
Output Flexibility:
Supports on-site mechanical reading or remote data transmission via analog (4–20mA), pulse, or RS485 protocols. -
Explosion-Proof Options:
Available in certified explosion-proof LCD types for hazardous environments. -
High-Temperature Ready:
Specialized models with heat-jacket and radiator structures for up to 200°C. -
Various Mounting Sizes (DN10–DN200):
Accommodates small-scale to industrial-scale operations.
Technical Specifications:
| Caliber (mm) | Viscosity Range | Flow Range (m³/h) |
|---|---|---|
| DN10–DN25 | 0.6–2 mPa·s / 2–2000 mPa·s | 0.03–6 |
| DN40–DN100 | 0.6–2 mPa·s / 2–2000 mPa·s | 3–100 |
| DN150–DN200 | 0.6–2 mPa·s / 2–2000 mPa·s | 45–340 |
-
Working Pressure: 1.6, 2.5, 4.0, or 6.3 MPa
-
Temperature Tolerance: Up to 200°C (high-temp models)
-
Accuracy:
-
Standard: ±0.5%
-
High Precision: ±0.2%
-
-
Signal Output Options:
-
GF-I / GF-II: Pulse output
-
MF: 4–20mA output (2-wire or 3-wire)
-
ELZ: LCD display with optional RS485
-
Available Models:
| Model | Description |
|---|---|
| LC-A | Standard iron casting |
| LC-B | Stainless steel (304) |
| LC-C | Stainless steel (316) |
| LC-E | Cast steel |
| LC-NA/NE/NB | High-viscosity type (iron/cast/stainless) |
| LC-TA/TE | High-temperature type |
| LC-U | Jacketed heating type |
| LC-13 | Transmitter only (Pulse/Analog Output) |
