DESCRIPTION

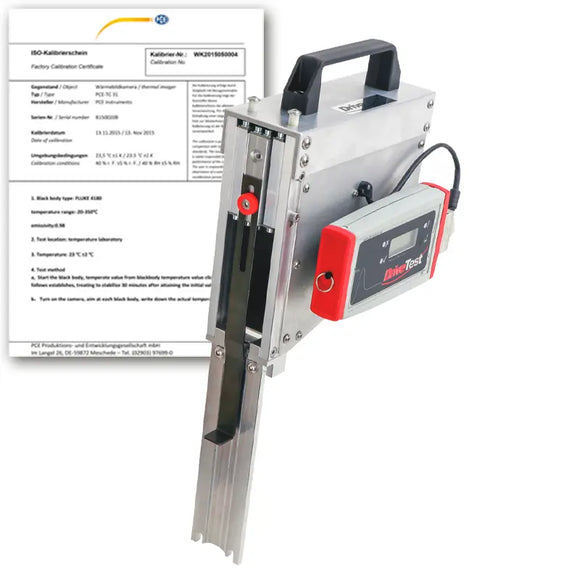

Closing Force Measuring Device
Closing force measurement for sliding roofs, automatic window lifters and tailgates
Closing force measurement for sliding roofs, automatic window lifters and tailgates
The closing force measuring device is an electronic measuring device for sliding roofs, automatic window lifters and tailgates in the automotive sector. Typical applications are manufacturing, development and production tests in the automotive industry. The closing force gauge with its low spring stiffness was developed to test soft elements that are clamped into a closing system. The device excels with easy handling for repetitive measurements. Its uncompromising design combines precision with practical robustness and ensures accurate readings even after years of use in harsh environments.
For measurement set-ups in testing and manufacturing, quick and easy execution is of great importance. For this purpose, software has been developed that drastically reduces the measurement procedure and the effort required for documentation. With just a few operating steps, the measurements can be transferred to a PC, evaluated, exported and documented. We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test sequence.
For measurement set-ups in testing and manufacturing, quick and easy execution is of great importance. For this purpose, software has been developed that drastically reduces the measurement procedure and the effort required for documentation. With just a few operating steps, the measurements can be transferred to a PC, evaluated, exported and documented. We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test sequence.
HIGHLIGHTS
- Support of relevant standards – 2000/4 EG, US Standard FMVSS 118, ECE-R 21; additional measurement
with low spring stiffness: 2 N/mm
- Precise measurements - due to friction-free guidance and platform load cell
- Robust design - durable aluminum ensures a long service life in tough use
- Professional, extensive PC software - PinchPilot leaves nothing to be desired
- Complete scope of supply - includes all necessary components for tailgates, windows and
Sunroofs packed in a high-quality transport case
- Accessories for every application - spacers (200 mm), force introductions (clamp and platform),
Monopod, Bumper Support Block, Window Support Block, Sunroof Support Block,
sunroof spacer
with low spring stiffness: 2 N/mm
- Precise measurements - due to friction-free guidance and platform load cell
- Robust design - durable aluminum ensures a long service life in tough use
- Professional, extensive PC software - PinchPilot leaves nothing to be desired
- Complete scope of supply - includes all necessary components for tailgates, windows and
Sunroofs packed in a high-quality transport case
- Accessories for every application - spacers (200 mm), force introductions (clamp and platform),
Monopod, Bumper Support Block, Window Support Block, Sunroof Support Block,
sunroof spacer
SPECIFICATION
| FM208 | |
| Application of force | on one side |
| Measuring range | 0 ... 200 N |
| Accuracy | +/– 3 N (0-100 N) or +/– 3 % (> 100 N) |
| Spring stiffness | 2 N/mm, +/–(10%) |
| Gap width | 30 mm / 1.1" |
| Area | 20 x 20 mm / 0.7 x 0.7" |
| Force sensor | DMS bridge |
| Dimensions | ca. 220 x 80 x 250 mm / 8.6 x 3.1 x 9.8" |
| Weight | ca. 2.5 kg / 5.5 lb |
| Display device SEB2.2 | |
| - Display device SEB2.2 data logger unit with LCD display | |
| and LED status indicators, control button, USB interface | |
| - Optional PC-controlled measurement | |
| - Lithium polymer battery | |
| - Real time clock | |
| - Memory for 100 measurements | |
| - Sensor and PC interface | |
| - Peak value display and effective power display | |
| - Rating display i. O./n. i. O. | |
| PC evaluation software PinchPilot | |
| - Multilingual (DE, EN, IT, FR, ES) | |
| - Graphic representation of the force curve | |
| - Calculation of the standard-relevant characteristic values | |
| - Evaluation according to different guidelines possible | |
| - Custom policy adjustable | |
| - Log printout | |
| - Data export (Excel, CSV, PDF) | |
| - Optional measuring point identification | |
| - System requirements software Software PinchPilot (see tab Software/App) | |
DELIVERY SCOPE
1 x Closing force measuring device FM208
1 x Display unit SEB2 separate with LCD display, LED status indicators, operating button and USB
interface
1 x 9 V block battery
1 x Accessory for each application: Spacer (200 mm), force inputs (clamp and platform),
monopod, bumper support block, window support block, sunroof support block,
sliding roof spacer
1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x USB stick with PC evaluation software PinchPilot
1 x Manual
1 x ISO calibration certificate
1 x Display unit SEB2 separate with LCD display, LED status indicators, operating button and USB
interface
1 x 9 V block battery
1 x Accessory for each application: Spacer (200 mm), force inputs (clamp and platform),
monopod, bumper support block, window support block, sunroof support block,
sliding roof spacer
1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x USB stick with PC evaluation software PinchPilot
1 x Manual
1 x ISO calibration certificate
SOFTWARE / APP
Description of software / technical requirements
For our measuring devices you need one of our software tools. Our software is used to evaluate the data obtained during closing force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.
- PC/Laptop Windows 7 or higher
- USB serial port or Bluetooth interface
- Measuring device
- for the following measuring devices: Original BIA Class 1, BIA 600, FM 100, FM 200, FM 202,
FM 205, FM 206, FM 207, FM 208, FM 300
PC software PinchPilot
Our "PinchPilot" software is used to evaluate the data obtained during closing force measurements. No additional software is required for daily work.
Data export
PinchPilot provides all the functions required for routine measurements. Should the data nevertheless be processed further in another room, there are various types of export to choose from:
Text export: measured values as a series of numbers; can be imported e.g. into Microsoft Excel
Image export: log or single diagram in EMF format; can be imported, e.g. into Microsoft Word Measurement data can be exported as ppdx (XML format) and imported with our other software tools for further processing
SQL database: A customer-specific SQL interface can be implemented on request
National Instruments DataPlugin (for import into Diadem or LabView)
Evaluation according to PinchPilot guidelines
The software evaluates the measurement results according to PinchPilot guidelines. These are created on the basis of applicable regulations (laws, standards, guidelines). They consist of a set of parameters that contain the permissible limit values. The measurement results obtained are evaluated accordingly. The permissible range is highlighted in color in the measurement diagram and allows a quick assessment of the measurement. We keep the PinchPilot guidelines up to date. Calibrations by us include an update of the software and thus also of the PinchPilot guidelines. With regular calibration, the user has the security of always checking according to the latest status. In addition to the assessment according to PinchPilot guidelines, the user has the option of creating their own guidelines.
Result documentation
There are two options for documenting measurements in paper form: The measurement log is detailed graphic documentation for a measurement point. While the measurement report is documentation for several measurement points in tabular form. This allows all measurements on an object (door, wagon, etc.) to be documented.
You can set the user language yourself: German, English, French, Italian and Spanish. Software upgrade costs will apply if no license is available for the downloaded version.
You can set the user language yourself: German, English, French, Italian and Spanish. Software upgrade costs will apply if no license is available for the downloaded version.
The following standards and guidelines can currently be evaluated:
EN 81-1 2000-4-EG
FMVSS118
APTA PR-M-S-18-10
ASME A17.1 2000
EN 14752:2005
EN 14752:2015
2001-85-EG / ECE R. 107 §35 e Abs.5 StVZO
EN14120 DIN 18650-1
EN 12453
EN 16005
EN 60335-2-103
ASR A1.7
ECE R-21
prEN 12650-1
For our measuring devices you need one of our software tools. Our software is used to evaluate the data obtained during clamping force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.
