Closing Force Measuring Device
Closing force measurement for automatic window regulators
Closing force measurement for automatic window regulators

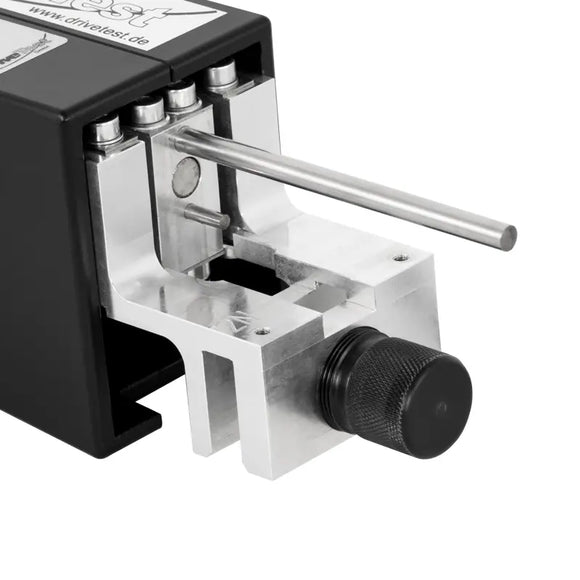

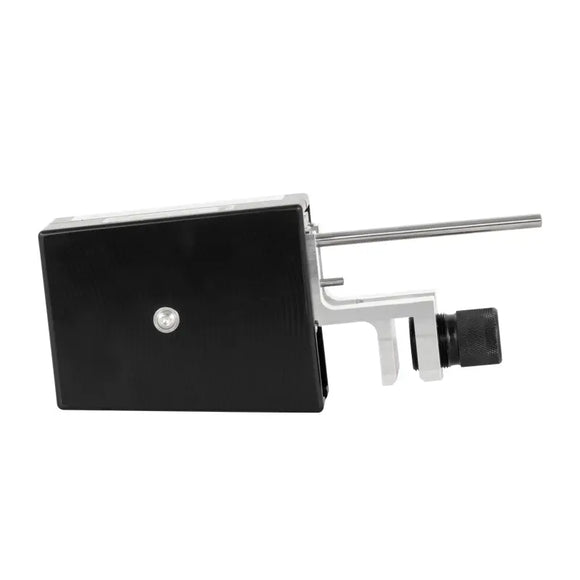

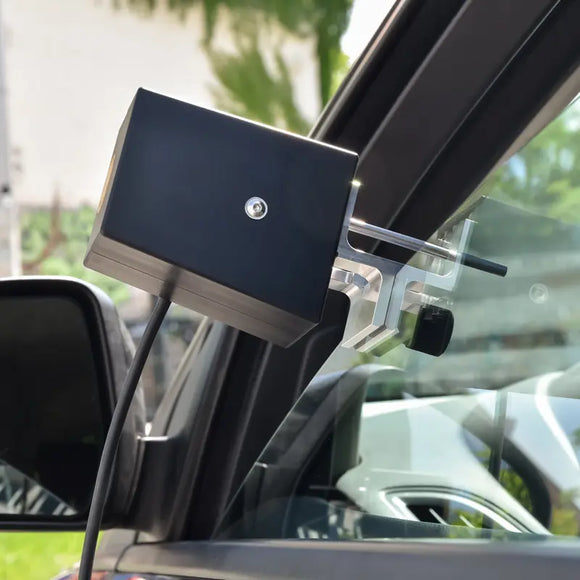

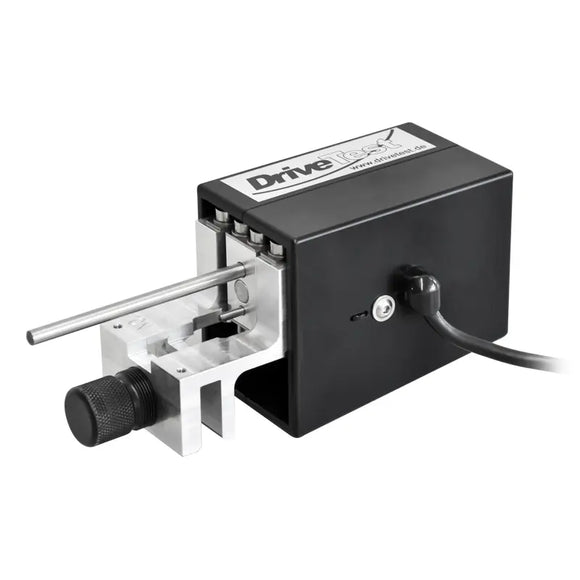

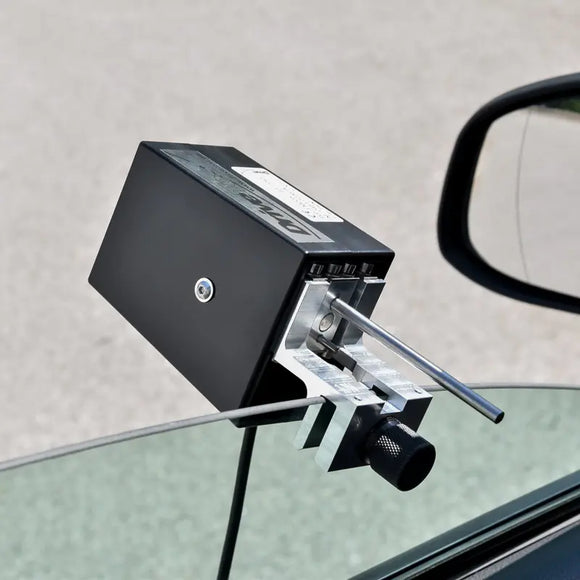

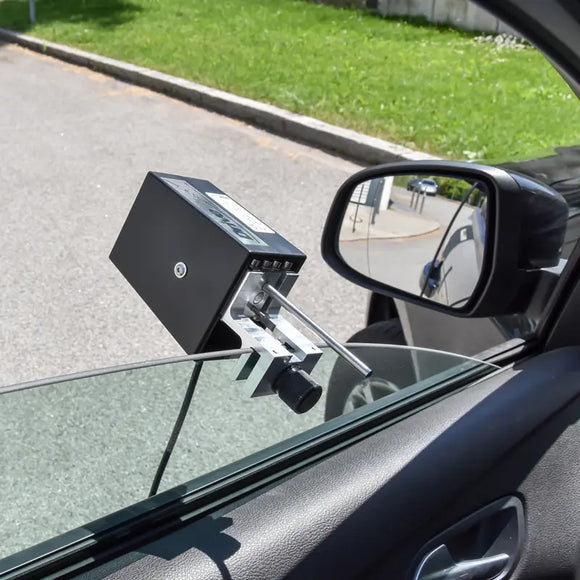

The closing force measuring device is an electronic closing force measuring device for power-operated windows in the automotive sector. Typical areas of application are testing and production in the automotive industry. For this purpose, we have developed a device that is easy to use for repetitive measurements. Due to the requirements of various common standards, we offer the device with different spring stiffnesses. It is also increasingly used by technical monitoring institutions. Its uncompromising design combines precision with practical robustness and ensures accurate measurements even after years of use in harsh environments.
For measurement set-ups in testing and production, quick and easy execution is of great importance. For this purpose, software has been developed that drastically reduces the measurement procedure and the effort required for documentation. With just a few operating steps, the measurements can be transferred to a PC, evaluated, exported and documented. We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test sequence.
For measurement set-ups in testing and production, quick and easy execution is of great importance. For this purpose, software has been developed that drastically reduces the measurement procedure and the effort required for documentation. With just a few operating steps, the measurements can be transferred to a PC, evaluated, exported and documented. We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test sequence.
HIGHLIGHTS
- Precise measurements - due to friction-free guidance and platform load cell
- Robust design - high-strength aluminum and POM ensure a long service life in tough applications
- Ease of use - single button operation or remote control via Microsoft® DLL -
Interface or National Instruments® LabVIEW library
- Professional, extensive PC software - PinchPilot leaves nothing to be desired
- Available in multiple spring rates - 2, 5, 10, 20, 65 N/mm
- Complete scope of delivery - including high-quality transport case
- Robust design - high-strength aluminum and POM ensure a long service life in tough applications
- Ease of use - single button operation or remote control via Microsoft® DLL -
Interface or National Instruments® LabVIEW library
- Professional, extensive PC software - PinchPilot leaves nothing to be desired
- Available in multiple spring rates - 2, 5, 10, 20, 65 N/mm
- Complete scope of delivery - including high-quality transport case
SPECIFICATION
| FM205/5 | |
| Application of force | on one side |
| Measuring range | 0 ... 75 N |
| Accuracy | +/– 3 N (0–100 N) or |
| +/– 3 % (>100 N) | |
| Spring stiffness | 5 N/mm |
| Gap width | Fmax. 5 mm / 0.19" |
| Area | 5 x 80 mm / 0.19 x 3.1" |
| Force sensor Cable length |
strain gauge bridge 1.5 m / 4.9 ft |
| Dimensions | 175 x 75 x 57 mm / 6.8 x 2.9 x 2.2" |
| Weight | ca. 400 g / 14 oz |
| Display device SEB2.2 | |
| - Display device SEB2.2 data logger unit with LCD display and LED status indicators, | |
| Control button, USB interface | |
| - Optional PC-controlled measurement | |
| - Lithium polymer battery | |
| - Real time clock | |
| - Memory for 100 measurements | |
| - Sensor and PC interface | |
| - Peak value display and effective power display | |
| - Rating display i. O./n. i. O. | |
| Spacers | |
| - Complete set for all opening widths according to EN 14752:2015 | |
| - Automatic detection of the spacers used | |
| - Automatic limit value adjustment according to opening width | |
| - Easy to use, quick assembly without tools | |
| - Robust design, low weight, POM | |
| - Together with BIA 600 sensor, SEB2 in a carrying case | |
| PC evaluation software PinchPilot | |
| - Multilingual (DE, EN, IT, FR, ES) | |
| - Graphic representation of the force curve | |
| - Calculation of the standard-relevant characteristic values | |
| - Evaluation according to different guidelines possible | |
| - Custom policy adjustable | |
| - Log printout | |
| - Data export (Excel, CSV, PDF) | |
| - Optional measuring point identification - System requirements software PinchPilot (see tab Software/App) |
|
DELIVERY SCOPE

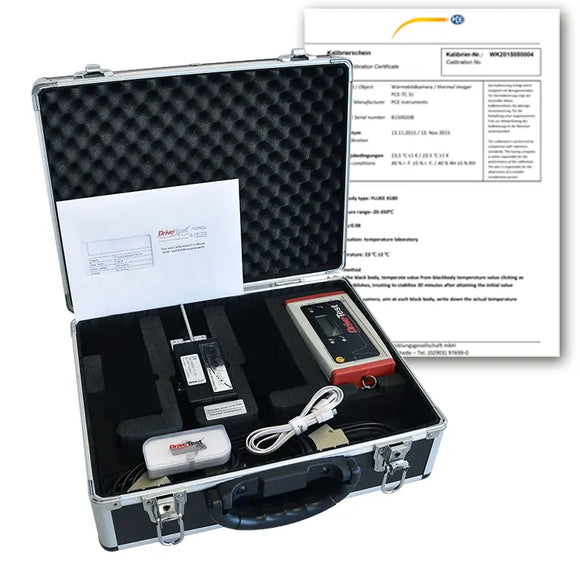

1 x Closing force measuring device FM205/5
1 x Sensor 5N/mm
1 x SEB2.2 indicator
1 x PinchPilot software
1 x ISO calibration certificate
1 x Sensor 5N/mm
1 x SEB2.2 indicator
1 x PinchPilot software
1 x ISO calibration certificate
SOFTWARE / APP
Description of software / technical requirements
For our measuring devices you need one of our software tools. Our software is used to evaluate the data obtained during closing force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.
- PC/Laptop Windows 7 or higher
- USB serial port or Bluetooth interface
- Measuring device
- for the following measuring devices: Original BIA Class 1, BIA 600, FM 100, FM 200, FM 202,
FM 205, FM 206, FM 207, FM 208, FM 300
PC software PinchPilot
Our "PinchPilot" software is used to evaluate the data obtained during closing force measurements. No additional software is required for daily work.
Data export
PinchPilot provides all the functions required for routine measurements. Should the data nevertheless be processed further in another room, there are various types of export to choose from:
Text export: measured values as a series of numbers; can be imported e.g. into Microsoft Excel
Image export: log or single diagram in EMF format; can be imported, e.g. into Microsoft Word Measurement data can be exported as ppdx (XML format) and imported with our other software tools for further processing
SQL database: A customer-specific SQL interface can be implemented on request
National Instruments DataPlugin (for import into Diadem or LabView)
Evaluation according to PinchPilot guidelines
The software evaluates the measurement results according to PinchPilot guidelines. These are created on the basis of applicable regulations (laws, standards, guidelines). They consist of a set of parameters that contain the permissible limit values. The measurement results obtained are evaluated accordingly. The permissible range is highlighted in color in the measurement diagram and allows a quick assessment of the measurement. We keep the PinchPilot guidelines up to date. Calibrations by us include an update of the software and thus also of the PinchPilot guidelines. With regular calibration, the user has the security of always checking according to the latest status. In addition to the assessment according to PinchPilot guidelines, the user has the option of creating their own guidelines.
Result documentation
There are two options for documenting measurements in paper form: The measurement log is detailed graphic documentation for a measurement point. While the measurement report is documentation for several measurement points in tabular form. This allows all measurements on an object (door, wagon, etc.) to be documented.
You can set the user language yourself: German, English, French, Italian and Spanish. Software upgrade costs will apply if no license is available for the downloaded version.
You can set the user language yourself: German, English, French, Italian and Spanish. Software upgrade costs will apply if no license is available for the downloaded version.
The following standards and guidelines can currently be evaluated:
EN 81-1 2000-4-EG
FMVSS118
APTA PR-M-S-18-10
ASME A17.1 2000
EN 14752:2005
EN 14752:2015
2001-85-EG / ECE R. 107 §35 e Abs.5 StVZO
EN14120 DIN 18650-1
EN 12453
EN 16005
EN 60335-2-103
ASR A1.7
ECE R-21
prEN 12650-1
