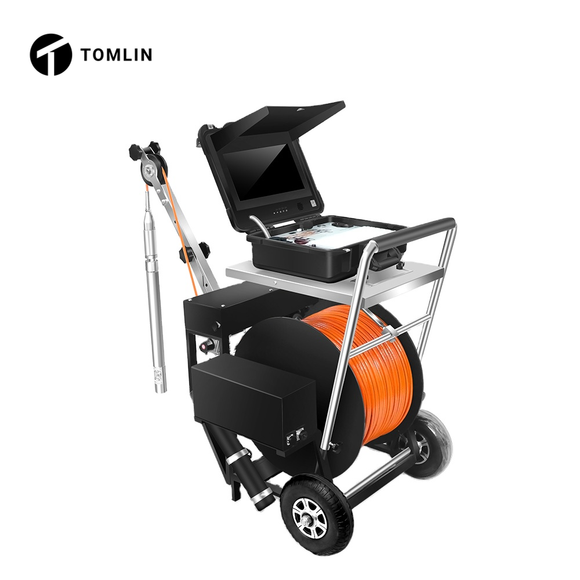

300m Borehole Dual Inspection Camera System – V13-BCSA

Deep Well & Borehole Video Inspection System

The TOMLIN V13-BCSA Borehole Inspection Camera is a complete, heavy-duty inspection solution designed for deep well, water well, drilling hole, and downhole inspections. Available with 200m to 500m automatic cable lengths, this system features a powerful 45mm dual-view camera head, intelligent DVR control unit, and an electrical winch with automatic coiling and uncoiling function.

Engineered for demanding field environments, the V13-BCSA delivers precise depth monitoring, high-resolution video recording, and seamless wireless transmission — making it ideal for groundwater surveys, borehole diagnostics, and industrial well inspection projects.

Key Features

45mm Dual-View Camera (Side & Down View)
360° Endless Rotation
IP68 Waterproof – Up to 50 Bars (725 PSI)
Cable Length Options: 200m–500m
Electrical Winch with Speed Adjustment & Brake Control
Automatic Coiling & Uncoiling Function
13” Industrial LCD Monitor with DVR Recording
Built-in 128GB SSD Storage + USB Support
On-Screen Depth Encoder, Temperature & Direction Display
Built-in WiFi Transmitter (30m Range)
Wireless Streaming to Android Devices & Tablets
AC110V–240V Power Supply + Built-in 7000mAh Battery

Main Components & Specifications

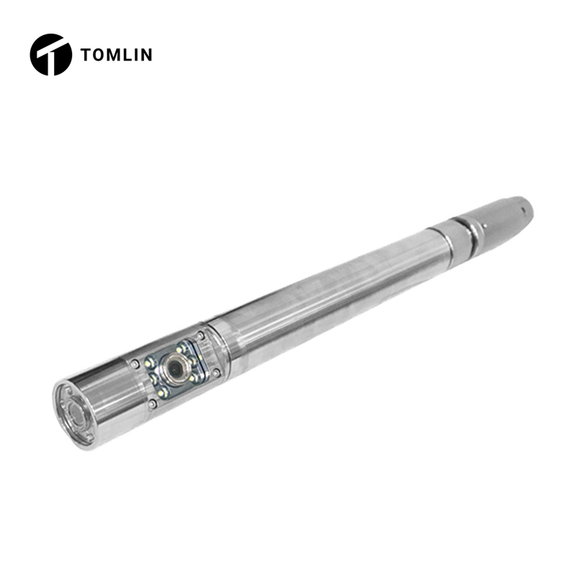

1. 45mm Dual-View Camera Head

• Diameter: Φ45mm

• Length: 570mm

• Material: Stainless Steel Housing

• Waterproof Rating: IP68

• Operating Depth: 50 Bars (725 PSI)

• Viewing Mode: Down View + Side View

• Rotation: 360° Endless Rotation

• Viewing Angle: 120°

• Resolution:

  • PAL: 720H × 576V

  • NTSC: 720H × 480V

• Horizontal Resolution: 700 TVL

• Lighting:

  • 6 High-Light LEDs (Down View)

  • 6 High-Light LEDs (Side View)

• Camera Weight: 6kg

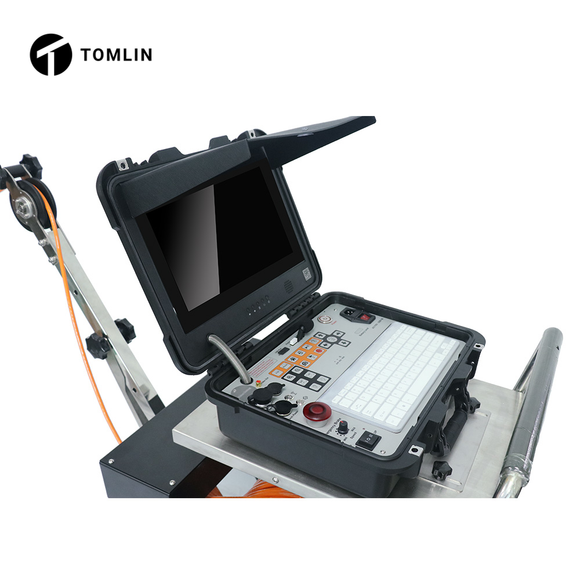

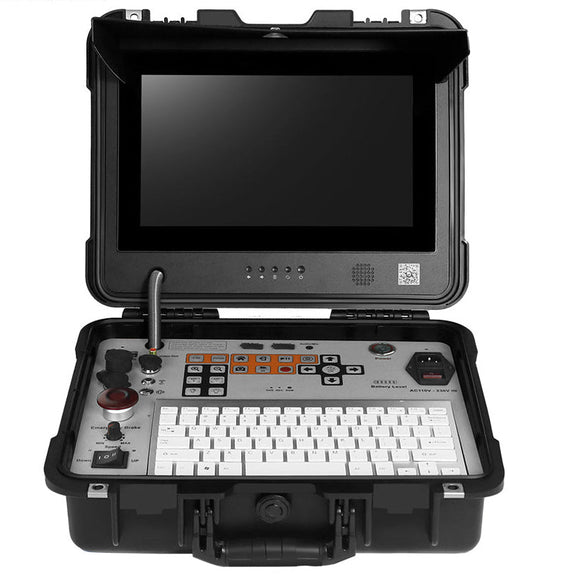

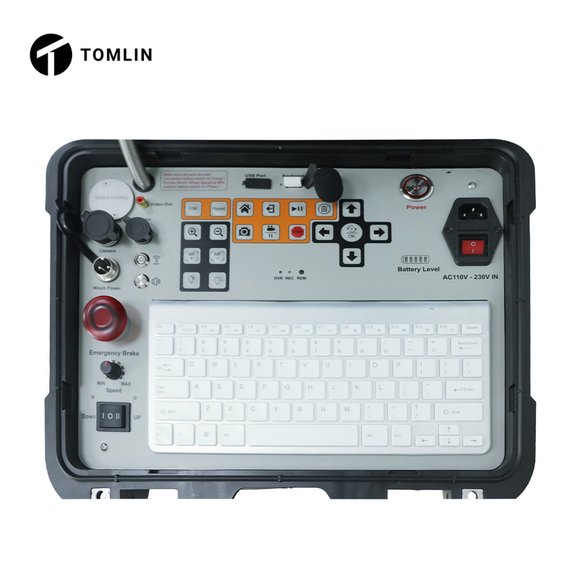

2. DVR Control Unit

• Monitor: 13” Industrial Color LCD

• Display Ratio: 4:3

• Resolution: 1024 × 768

• Menu Language: 9 Languages Optional

• Video Input Options: Borehole Camera / Pan & Tilt Camera

• Rotation Control: Clockwise & Counterclockwise Buttons

• Camera Select: Down/Side Toggle

• LED Brightness Adjustment

• Winch Control: Speed Adjustment, Up/Down Operation, Brake

• Recording: HD DVR Audio/Video Recording & Playback

• Storage: Built-in 128GB SSD or USB Device

• On-Screen Display: Depth Encoder, Temperature, Direction

• Built-in WiFi Transmitter (30m Range)

• Wireless Video Transmission to Android / Tablet / MID Devices

• Power Supply: AC 110V–240V

• Built-in Battery: 7000mAh

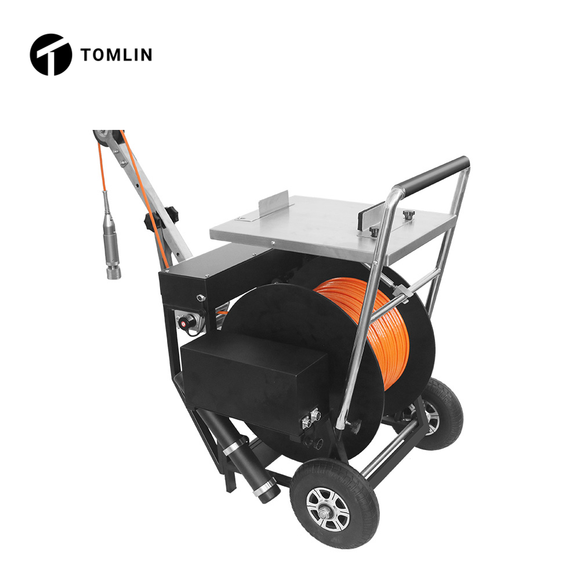

3. Electrical Cable Winch

• Winding Speed: 0–20m/min

• Adjustable Cable Speed

• Cable Type: Φ10mm Twisted Pair

• Cable Length Options: 200m–500m

• Power Supply: AC110V–230V / DC12–24V

• On-Screen Depth Encoder

• Electric Cable Rolling System

• Automatic Coiling & Uncoiling Function

Applications

The TOMLIN V13-BCSA is widely used in:

• Drilling hole inspection

• Deep well inspection

• Water well diagnostics

• Borehole inspection

• Downhole investigation

• Groundwater monitoring

• Geological survey projects

• Industrial well maintenance

This system allows operators to accurately assess casing conditions, cracks, blockages, sediment buildup, corrosion, and structural integrity — even at depths up to 500 meters.

Why Choose TOMLIN V13-BCSA?

The TOMLIN V13-BCSA combines durability, precision, and automation into one professional inspection platform. With automatic cable handling, dual-view imaging, and intelligent DVR monitoring, it provides reliable performance for demanding deep-well operations.

Downloads

Data Sheet Link
