Compact metric calibration block for checking miniature shear-wave probe index, time base, beam angle and gain during field ultrasonic inspection.
Key features
- 25 mm and 50 mm reference radii.

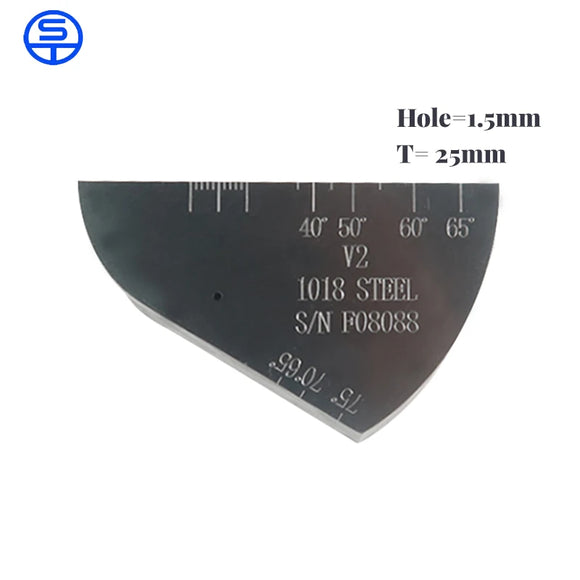

- 1.5 mm through-hole and engraved 35°–75° angle scales.
- Compact 75 × 43 × 25 mm format for field kits.
Applications
- Portable UT setup for weld inspection and maintenance shutdowns.
- Routine probe checks for mining, petrochemical and fabrication inspection teams.
- Practical NDT training and field verification.
Specifications
| Supplier model | FB-901-0007; IIW2/V2 |
|---|---|
| Dimensions | 75 × 43 × 25 mm |
| Radii | 25 mm and 50 mm |
| Hole diameter | 1.5 mm |
| Angle scales | 35°–75° |
| Materials | Carbon steel or stainless steel; stainless grade not specified |
Selection and standards
Supplier references EN 27963, DIN 54-120 and ISO 7963. Confirm the required edition and certification with the order.
Included and optional accessories
One calibration block in the selected configuration. Certificate scope, protective case and lead time should be specified with the quotation; inclusion is not confirmed by the price list.
Use a compatible ultrasonic instrument, probe and couplant, supplied separately.
