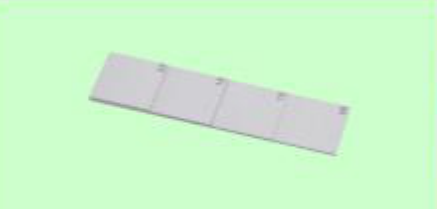

Thin carbon-steel reference blocks for checking ultrasonic thickness-gauge response at low wall thicknesses with a suitable probe.
Key features
- Two thin four-step options and one five-step option.
- 1018 carbon steel with metric thickness markings.
- Helps establish usable low-thickness performance for the selected gauge and probe.
Applications
- Thin-wall tube and sheet inspection setup.
- Low-thickness gauge checks during corrosion-monitoring work.
- Probe selection and thin-material measurement trials.
Specifications
| Material | 1018 carbon steel |
|---|---|
| DB-101-0003 | 0.8 / 1 / 1.5 / 2 mm; footprint 80 × 20 mm |
| B-101-0038 | 1 / 1.5 / 2 / 2.5 mm; footprint 80 × 20 mm |
| DB-101-0002 | 1 / 2 / 3 / 4 / 5 mm; footprint 100 × 20 mm |
Selection and standards
Use with a gauge and probe capable of resolving the selected thickness. This block does not extend an instrument's minimum measuring range.
Included and optional accessories
One calibration block in the selected configuration. Certificate scope, protective case and lead time should be specified with the quotation; inclusion is not confirmed by the price list.
Use a compatible ultrasonic instrument, probe and couplant, supplied separately.
