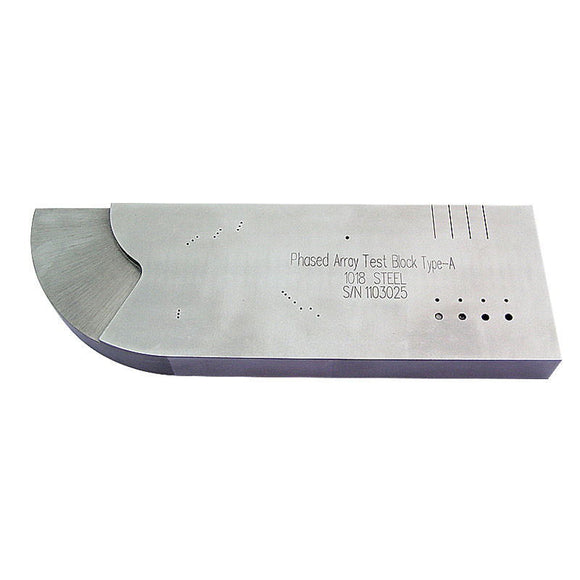

Type A reference block for initial setup and calibration of phased-array ultrasonic testing systems, including beam-angle verification, wedge-delay and sensitivity checks.
Key features
- 100 mm and 50 mm radii with multiple reference reflector types.
- Through-holes, flat-bottom holes and EDM notches for different setup tasks.
- Supports DAC/TCG setup when its geometry meets the inspection procedure.
Applications
- PAUT setup for welded fabrication, pressure equipment and piping inspection.
- Wedge-delay and sensitivity calibration before phased-array scans.
- Advanced UT training and procedure development.
Specifications
| Supplier model | FB-901-0019, Type A |
|---|---|
| Dimensions | 300 × 100 × 25 mm |
| Radii | 100 mm and 50 mm |
| Through-holes | 19 × Ø1 mm; 1 × Ø2 mm |
| Ø2 mm flat-bottom holes | Depths 2, 4, 6 and 8 mm |
| Ø4 mm flat-bottom holes | Depths 1, 3, 5 and 7 mm |
| Additional flat-bottom holes | 3 × Ø2 mm × 3 mm deep, machined into the 50 mm radius |
| EDM notches | Depths 0.1, 0.2, 0.3 and 0.4 mm; width 0.5 mm; length 25 mm |
| Materials | Carbon steel or stainless steel; stainless grade not specified |
Selection and standards
Confirm suitability against the applicable PAUT procedure. The price list does not state a dedicated compliance standard for Type A.
Included and optional accessories
One calibration block in the selected configuration. Certificate scope, protective case and lead time should be specified with the quotation; inclusion is not confirmed by the price list.
Use a compatible ultrasonic instrument, probe and couplant, supplied separately.
