Wind Turbine Inspection Robot – 6WD HD Blade Inspection Crawler

Product Description

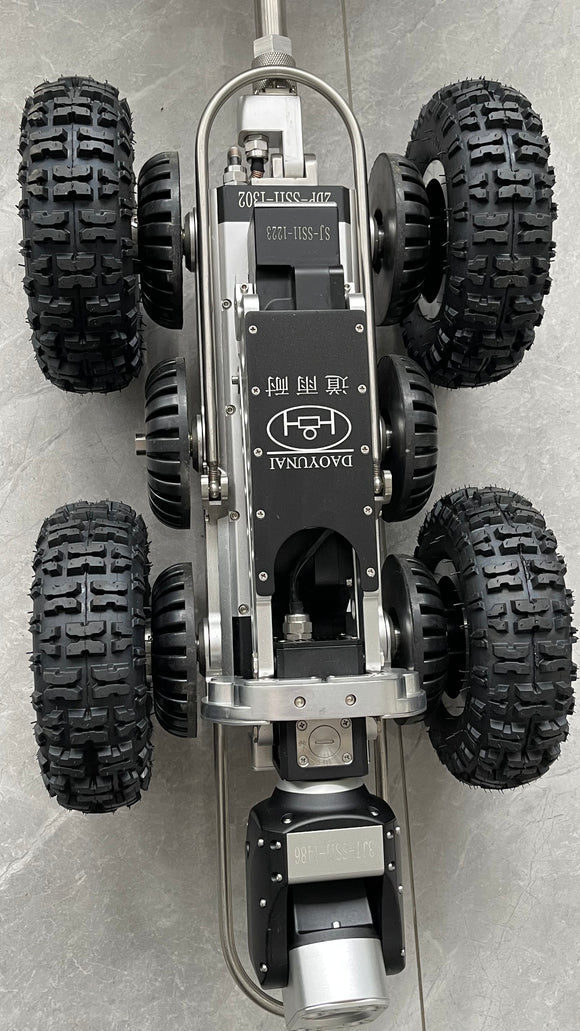

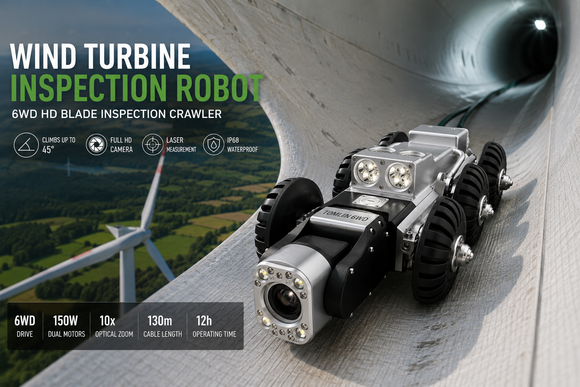

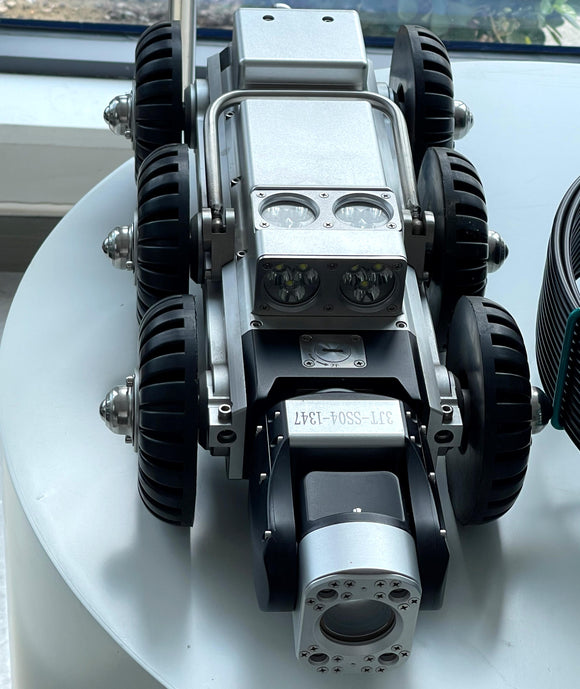

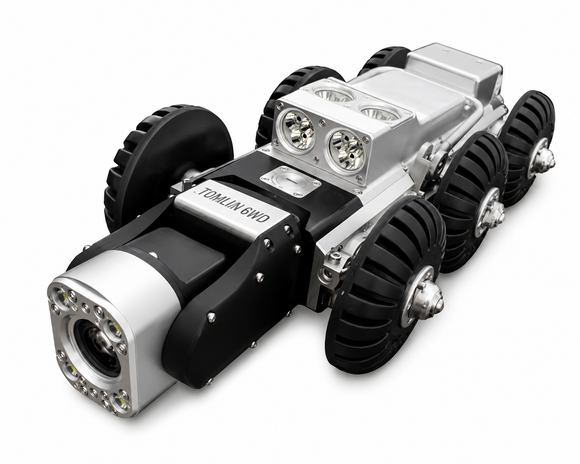

The Tomlin Wind Turbine Inspection Robot is a professional 6-wheel drive crawler engineered for the internal inspection, maintenance and condition assessment of wind turbine blades.

Designed to navigate narrow blade cavities, internal shear webs and composite structures, the crawler provides high-definition visual inspections while keeping operators safely outside the blade. Its compact aluminium chassis, powerful dual-motor drive system and specialist wheel design enable smooth operation on inclined internal blade surfaces and along structural webs.

Featuring a Full HD PTZ camera with 360° pan, 180° tilt, 10x optical zoom and integrated laser measurement, the system allows inspectors to accurately identify cracks, bond line defects, delamination, laminate damage, resin defects, contamination and manufacturing imperfections without dismantling the blade.

The rugged IP68 crawler combines powerful LED illumination, long operating time, wired or wireless controls and a 130m inspection cable, making it an ideal solution for wind farm operators, blade manufacturers, maintenance contractors and inspection specialists.

Key Features

• Full HD 1080P PTZ inspection camera
• 360° continuous pan rotation
• 180° tilt rotation
• 10× optical zoom
• Auto and manual focus
• Integrated laser rangefinder
• 6-wheel drive crawler
• Dual 150W drive motors
• Climbs slopes up to 45°
• Special composite blade drive wheels
• Auxiliary guide wheels for blade web inspection
• Front and rear HD cameras
• 16 high-output LED lights
• Full aluminium corrosion-resistant body
• IP68 waterproof and dustproof
• Up to 12 hours operating time
• 130m inspection cable
• Industrial touchscreen controller
• Android tablet control
• Wired and wireless operation
• Real-time distance counter

Designed For

The crawler is specifically designed for inspection of:

• Wind turbine blades
• Internal blade cavities
• Shear webs
• Leading edge sections
• Trailing edge sections
• Composite laminates
• Bond lines
• Adhesive joints
• Blade manufacturing inspections
• Preventative maintenance
• Damage assessment
• Composite structure inspections

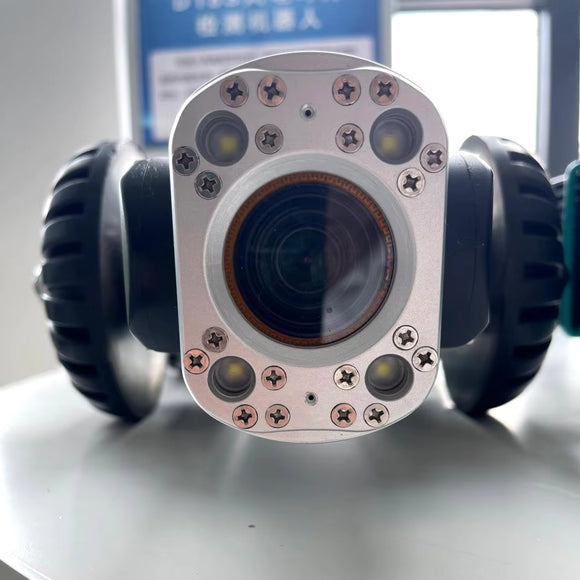

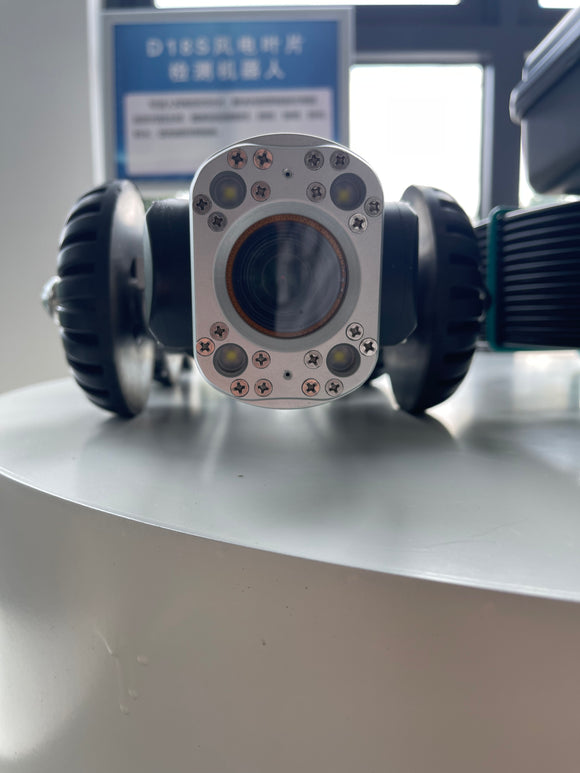

Full HD PTZ Inspection Camera

The robot features a professional inspection camera designed specifically for confined composite structures.

Camera Features

• Full HD 1920 × 1080 resolution
• 2.14MP image sensor
• PTZ camera
• 360° continuous pan
• 180° tilt
• 10× optical zoom
• Auto focus
• Manual focus
• One-touch camera reset
• 0.7 Lux low-light sensitivity
• Modular camera assembly
• Wear-resistant optical window

The PTZ camera enables operators to inspect every surface inside the blade without repositioning the crawler, significantly reducing inspection time while improving defect detection.

Integrated Laser Measurement

The built-in laser rangefinder allows inspectors to accurately measure the dimensions of defects including:

• Cracks
• Delamination
• Bond failures
• Surface damage
• Impact defects
• Composite imperfections

Intelligent Lighting System

Powerful integrated lighting provides excellent image quality even inside completely dark turbine blades.

Lighting

• 10 front high-output LEDs
• 6 upper high-brightness LEDs
• Independent lighting control
• Uniform illumination
• Reduced reflections on composite surfaces

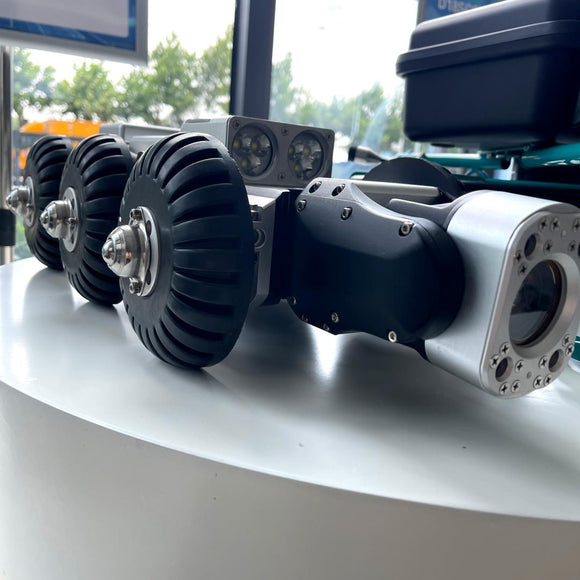

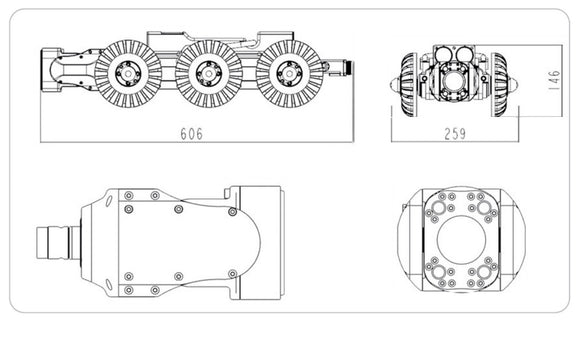

Heavy-Duty 6WD Crawler

The crawler has been purpose-built for demanding wind turbine inspections.

Chassis Features

• Six-wheel drive
• Dual 150W drive motors
• Full aluminium alloy chassis
• Corrosion-resistant construction
• IP68 waterproof and dustproof
• Special rubber drive wheels
• Auxiliary guide wheels
• Smooth differential steering
• Zero-radius turning
• Forward and reverse operation
• Variable speed control
• Maximum climbing angle of 45°

Cable Reel System

The inspection system includes a heavy-duty cable reel designed for long-distance blade inspections.

Features

• 130m inspection cable
• Reinforced high-strength cable
• Cable tensile strength exceeding 200kg
• Manual cable rewind
• Real-time distance counter
• Stable communication throughout the inspection

Control System

Operators can choose between two control platforms depending on application requirements.

Industrial Control Console

• 13-inch high-brightness touchscreen
• Rugged ABS protective case
• Physical joystick
• Touchscreen operation
• Keyboard and mouse support
• USB connectivity
• Internal rechargeable battery
• External 110–220V AC operation

Android Tablet Control

• Wireless control
• Wired control
• Android operating system
• Portable lightweight design
• Long battery life

Long Operating Time

Powered by a high-capacity 60V 18Ah lithium battery pack, the system provides up to 12 hours of continuous operation, allowing multiple blade inspections from a single charge.

Applications

Ideal for:

• Wind farm maintenance
• Wind turbine servicing
• Blade manufacturing
• Composite inspection
• Renewable energy maintenance
• Offshore wind farms
• Onshore wind farms
• Quality assurance
• Insurance inspections
• Engineering consultants
• Asset management
• Preventative maintenance programmes

Technical Specifications

What's Included

• Wind Turbine Inspection Robot
• Full HD PTZ Camera
• 130m Inspection Cable
• Manual Cable Reel
• 13-inch Industrial Touchscreen Control Console
• Android Tablet Controller
• 60V 18Ah Lithium Battery
• Battery Charger
• Power Adapter
• User Manual
