Overview

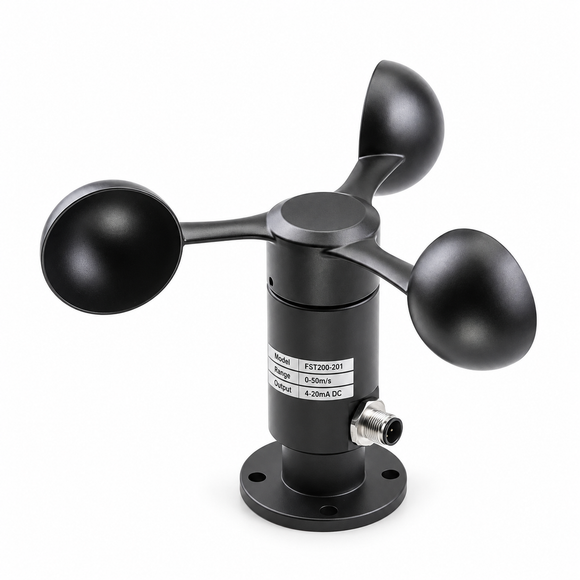

The FST200-201 is an industrial cup-anemometer wind-speed sensor for permanent outdoor monitoring. Its 4–20 mA output can be connected to compatible alarm controllers, PLCs, data loggers and SCADA systems.
Key specifications
- Measuring range: 0.5–50 m/s
- Output: 4–20 mA
- Accuracy: ±3% FS
- Housing: aluminium alloy
- Connection: M12 connector with 1.5 m cable
Applications
- Crane and construction-site wind monitoring
- Mining, ports and material-handling equipment
- Weather and environmental monitoring
- PLC, SCADA and alarm-controller installations
System compatibility
The sensor is suitable for 4–20 mA monitoring equipment and is the recommended standalone sensor option for the FST200-211 wind-speed alarm controller, subject to final configuration confirmation.
Delivery scope
- FST200-201 wind-speed sensor
- M12 connection and 1.5 m cable
Documentation and supply
- Firstrate supplies a general technical datasheet rather than a model-specific datasheet.
- CE and RoHS documentation is available.
- A factory test report is available on request; this is not an accredited calibration certificate.
- One-year manufacturer warranty.
- Typical supplier lead time: 7–10 working days after payment.
Special-order product. Final configuration and included components are confirmed at quotation. Price includes 15% VAT; international freight and optional certification charges are quoted separately.
