Name: Water Analysis Meter Photometer PCE-CP 30
Brand: PCE
SKU: PCE-CP 30
Price: 12000.0 ZAR
Availability: InStock

Parameters:
Alkalinity
Chlorine
Cyanuric acid
pH
Total hardness
Calcium hardness
Active oxygen
Chlorine dioxide
Bromine
Ozone
Hydrogen peroxide
PHMB (polyhexanide)
Urea

***Reagnet Kits Sold Separately

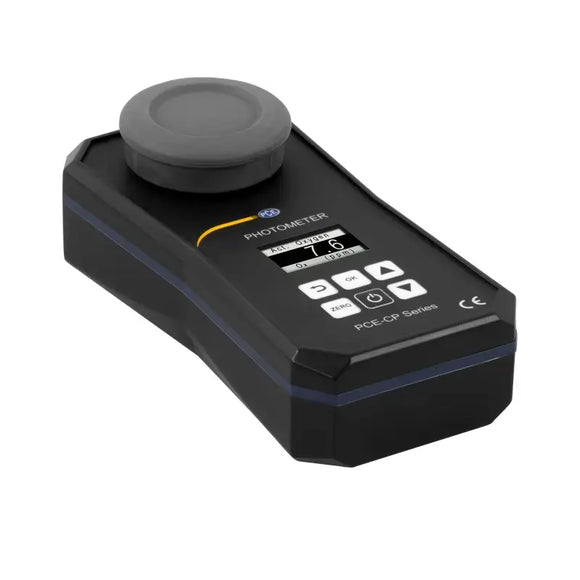

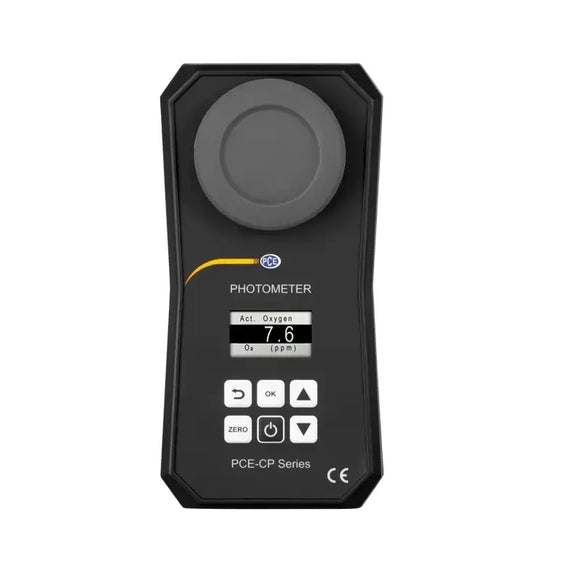

Water analysis meter PCE-CP 30

Multi-parameter photometer with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values / Up to 13 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / Storage of measured values

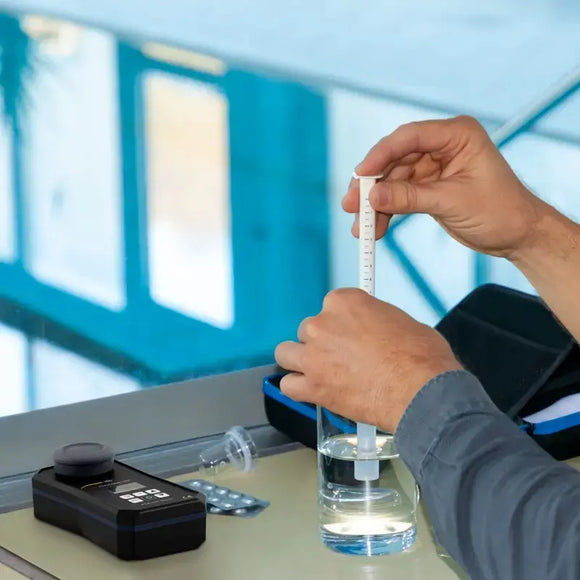

The multi-parameter water analysis meter is a mobile measuring device for liquid analysis. This means that the most varied of measurements can be carried out with the multi-parameter water analysis meter. With this multi-parameter water analysis meter, for example, it is possible to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the multi-parameter water analysis meter, a water sample of 10 ml must be placed in a cuvette. The LED built into the multi-parameter water analysis meter generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.

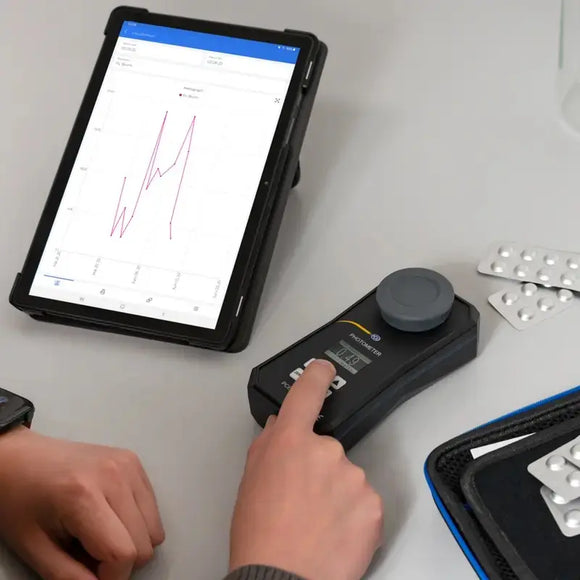

Each measurement is automatically saved by the multi-parameter water analysis meter. The stored measured values can then be read out, for example, via a mobile device via the Bluetooth interface built into the multi-parameter water analysis meter. A free app is available to analyze the measured values from the multi-parameter water analysis meter. It is also possible to establish a Bluetooth connection between the multi-parameter water analysis meter and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the multi-parameter water analysis meter, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the multi-parameter water analysis meter is also free of charge.

Highlights

- Up to 13 selectable parameters
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)

Specification

Alkalinity
Measuring range	0… 30 mg / l
	30… 60 mg / l
	60… 100 mg / l
	100… 200 mg / l

Accuracy	3 mg / l
	7 mg / l
	12 mg / l
	18 mg / l

Resolution	1 mg / l

Chlorine
Measuring range	0.00 ... 2.00 mg / l
	2.00 ... 3.00 mg / l
	3.00 ... 4.00 mg / l
	4.00 ... 8.00 mg / l

Accuracy	0.10 mg / l
	0.23 mg / l
	0.75 mg / l
	1.00 mg / l

Resolution	0.01 mg / l

Cyanuric acid
Measuring range	0… 15 mg / l
	15… 50 mg / l
	50… 120 mg / l
	120… 160 mg / l

Accuracy	1 mg / l
	5 mg / l
	13 mg / l
	19 mg / l

Resolution	1 mg / l

pH
Measuring range	6.50 ... 8.40 pH
Accuracy	0.11 pH
Resolution	0.01 pH

Total hardness
Measuring range	0… 30 mg / l
	30… 60 mg / l
	60… 100 mg / l
	100… 200 mg / l
	200 ... 300 mg / l
	300 ... 500 mg / l

Accuracy	3 mg / l
	5 mg / l
	10 mg / l
	17 mg / l
	22 mg / l
	58 mg / l

Resolution	1 mg / l

Calcium hardness
Measuring range	0… 25 mg / l
	25… 100 mg / l
	100 ... 300 mg / l
	300 ... 500 mg / l

Accuracy	8 mg / l
	22 mg / l
	34 mg / l
	45 mg / l

Resolution	1 mg / l

Active oxygen
Measuring range	0.0 ... 5.0 mg / l
	5.0… 15.0 mg / l
	15.0 ... 25.0 mg / l
	25.0 ... 30.0 mg / l

Accuracy	0.5 mg / l
	1.3 mg / l
	3.8 mg / l
	5.0 mg / l

Resolution	0.1 mg / l

Chlorine dioxide
Measuring range	0.00 ... 2.00 mg / l
	2.00 ... 6.00 mg / l
	6.00 ... 10.00 mg / l
	10.00 ... 11.40 mg / l

Accuracy	0.19 mg / l
	0.48 mg / l
	1.43 mg / l
	1.90 mg / l

Resolution	0.01 mg / l

Bromine
Measuring range	0.0 ... 2.5 mg / l
	2.5… 6.5 mg / l
	6.5 ... 11.0 mg / l
	11.0 ... 13.5 mg / l

Accuracy	0.2 mg / l
	0.6 mg / l
	1.7 mg / l
	2.3 mg / l

Resolution	0.1 mg / l

Ozone
Measuring range	0.00… 1.00 mg / l
	1.00 ... 2.00 mg / l
	2.00 ... 3.00 mg / l
	3.00 ... 4.00 mg / l

Accuracy	0.07 mg / l
	0.17 mg / l
	0.51 mg / l
	0.68 mg / l

Resolution	0.01 mg / l

Hydrogen peroxide - small measuring range (LR)
Measuring range	0.00 ... 0.50 mg / l
	0.50… 1.50 mg / l
	1.50 ... 2.00 mg / l
	2.00 ... 2.90 mg / l

Accuracy	0.05 mg / l
	0.12 mg / l
	0.36 mg / l
	0.48 mg / l

Resolution	0.01 mg / l

Hydrogen peroxide - large measuring range (HR)
Measuring range	0… 50 mg / l
	50… 110 mg / l
	110… 170 mg / l
	170… 200 mg / l

Accuracy	5 mg / l
	6 mg / l
	11 mg / l
	13 mg / l

Resolution	1 mg / l

PHMB (polyhexanide)
Measuring range	5… 60 mg / l
Accuracy	5 mg / l
Resolution	1 mg / l

Urea
Measuring range	0.00 ... 0.30 mg / l
	0.30… 0.60 mg / l
	0.60… 1.00 mg / l
	1.00… 1.50 mg / l
	1.50 ... 2.50 mg / l

Accuracy	0.05 mg / l
	0.06 mg / l
	0.09 mg / l
	0.12 mg / l
	0.19 mg / l

Resolution	0.01 mg / l

Further specification

Calibration	Zero point calibration
Light source	503 nm / 570 nm / 620 nm LED
Light detector	Photodiode
Power supply	4 x 1.5V AA batteries
Dimensions of the cuvette	36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
Menu languages	English, German, French, Spanish and Italian
Storage	Automatic storage of measured values and readout
Storage space	256 values
interface	Bluetooth connection with app and PC software
Automatic shutdown	After 300 seconds of inactivity
Operating conditions	5 … 45°C / 41 ... 113°F, 20 ... 90% RH non-condensing
Storage conditions	5 … 45°C / 41 ... 113°F, 20 ... 90% RH non-condensing
Dimensions	165 x 95 x 50 mm / 6.5 x 3.7 x 2 in
Weight	230 g / < 1 lb

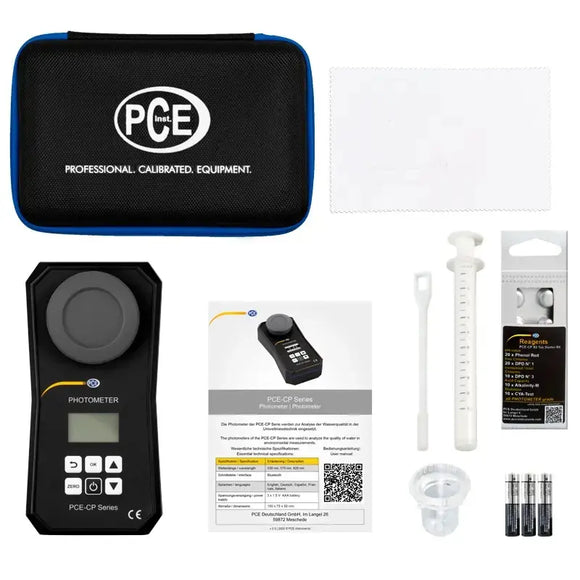

Delivery Scope

1 x Multi-parameter water analysis meter PCE-CP 30 incl. Cuvette
1 x Replacement cuvette
1 x Light protection cover
1 x Microfiber cloth
1 x Plunger
1 x 10 ml dosing pipette
3 x AAA batteries
1 x Quick start guide
1 x Service bag
1 x Free app
1 x Free PC software
1 x Free cloud service
1 x Reagent starter kit (20x pH, 20x free chlorine, 10 x combined / total chlorine, 10x alkalinity, 10 x cyanuric acid)
