Description
K series is equipped with a number of detection functions, with advanced
technology , and comprehensive functions , which assists the inspectors to
complete the inspection work efficiently.
| Category | Specification | Details |
|---|---|---|
| Host | Dimension | 350 × 155 × 59 mm |

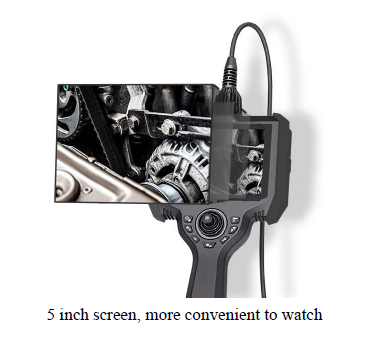

| Display | 5 inch industrial LCD screen | |
| Output Port | HDMI video output, Type-C, TF card slot | |
| Storage | 32G | |
| Power | Special rechargeable lithium battery pack, online charging, battery life ≥ 4 hours | |
| IP Grade | IP54 | |
| Working Temperature | -10°C to 50°C | |
| Storage Temperature | -20°C to 60°C | |
| Relative Humidity | Max. 95%, No condensation | |
| System | Operating System | Multifunctional operating system |

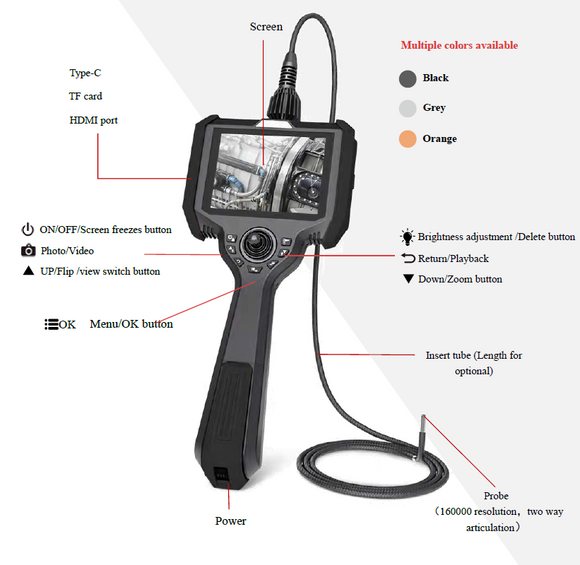

| Operation Method | Button navigation, dual camera and video buttons | |
| Support Function | Freeze, zoom, photo, flip, video playback, analog ruler functions | |
| File Format | Image: JPEG (JPG), Video: AVI | |
| Support Language | Chinese, English, German, French, Russian, Spanish, Italian, Polish, Japanese, Ukrainian, and other languages | |
| Packing Case | Weight | 3.9 kg |
| L × W × H | 47.9 × 38.7 × 15.5 cm |
Camera and Probe

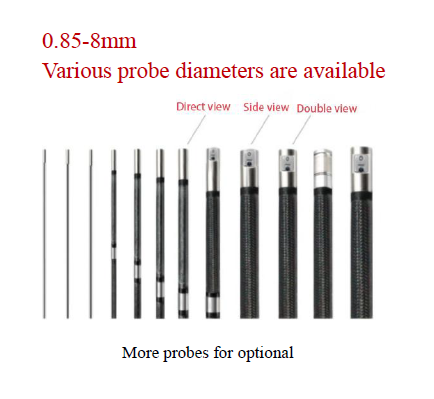

There are several length and diameter for K18 series for you to chose
according to your requirement.
| Category | Specification | K1810 | K1820 | K1830 |
|---|---|---|---|---|
| Lens | Direction | Direct view | Direct view | Direct view |
| View Angle | 120° | 120° | 120° | |
| DOF | 3 mm – 70 mm | 3 mm – 70 mm | 3 mm – 70 mm | |
| Pixel | 160,000 | 160,000 | 160,000 | |

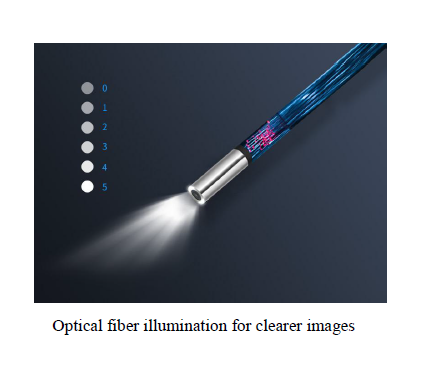

| Illuminating System | Rear high-power LED fiber optic transmission | Rear high-power LED fiber optic transmission | Rear high-power LED fiber optic transmission | |
| Probe | Front Metal Part (L) | 5 mm ± 0.5 mm | 5 mm ± 0.5 mm | 5 mm ± 0.5 mm |
| Diameter (D) | 1.8 mm | 1.8 mm | 1.8 mm | |
| Articulating | 180° two-way articulating | 180° two-way articulating | 180° two-way articulating | |
| Length when bending at 90° | 18 mm ± 2 | 18 mm ± 2 | 18 mm ± 2 | |
| Bending Angle (α) | 160° ± 10° | 160° ± 10° | 160° ± 10° | |
| Brightness of Illumination | 1 m: ≥10,000 Lux | 1 m < L ≤ 2 m: ≥8,000 Lux | 1 m < L ≤ 2 m: ≥8,000 Lux | |
| Working Temperature | -20°C to 70°C | -20°C to 70°C | -20°C to 70°C | |
| Inserting Tube | Length | 1 m | 2 m | 3 m |
| Material | Flexible (tungsten braided tube) | Flexible (tungsten braided tube) | Flexible (tungsten braided tube) |
Packing List
| No. | Item |
|---|---|
| 1 | Host |
| 2 | Battery |
| 3 | Packing Case |
| 4 | Memory Card |
| 5 | Card Reader |
| 6 | Tripod |
| 7 | Type-C Cable |
| 8 | HDMI Cable |
| 9 | Charger |
| 10 | Warranty Card |
| 11 | User Manual |
| 12 | Guarantee Card |
