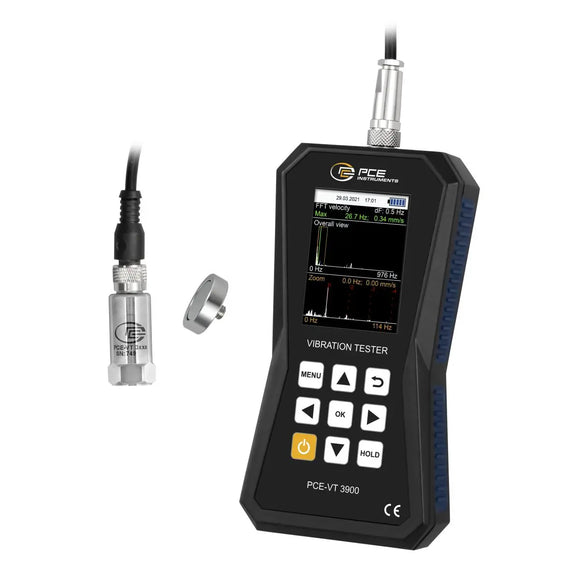

Vibration Meter – PCE-VT 3900

R 36,500.00

Tax includedShipping calculated at checkout

PCE SKU: PCE-VT 3900

Calibration certificate options

Delivery
8–14 working days

Description Features Specifications Applications Included Calibration Downloads Shipping

The PCE-VT 3900 supports machine condition checks with vibration readings, frequency analysis and repeatable inspection routes. Recorded results transfer to a computer for review and CSV export.

  • Acceleration, velocity and displacement measurement
  • RMS, peak and peak-to-peak readings
  • FFT analysis with 2,048 lines
  • Route-based inspections and ISO 10816-3 condition evaluation
  • Rechargeable battery and micro-USB connection
Parameter Specification
Acceleration 0–399.9 m/s²; resolution 0.1 m/s²; accuracy ±2%
Acceleration bandwidth 10 Hz–10 kHz / 1 kHz–10 kHz
Velocity 0–399.9 mm/s; resolution 0.1 mm/s; ±2% at 160 Hz; 10 Hz–1 kHz
Displacement 0–3.9 mm; resolution 1 µm; ±2% at 160 Hz; 10–200 Hz
FFT bandwidth Acceleration: 10 Hz–8 kHz; velocity: 10 Hz–1 kHz
Memory 2,160,000 values; intervals 1 second–12 minutes
Battery 3.7 V, 2,500 mAh lithium polymer
Protection IP52
Dimensions 165 × 85 × 32 mm

Maintenance inspections of rotating machinery and recurring vibration surveys.

Meter, vibration sensor, spiral cable, magnetic adapter, micro-USB cable, software and instructions on USB stick, quick-start guide and service bag.

Select the calibrated variant for a CAL-V-I ISO certificate. Calibration point: 159.2 Hz, 10 mm/s, 14.1 m/s² and 0.028 mm.

PCE-VT 3900 datasheet (PDF)

Delivery: 8–14 working days
