Overview

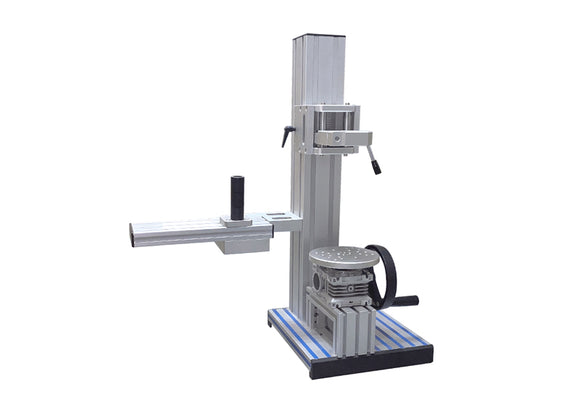

The Mikrometry EST-TT2 is a vertical handwheel-operated torque test stand for controlled testing of torque screwdrivers, rotational components and compatible ETT-series torque instruments.
Key Features
- Maximum torque: 100 N·m
- Clockwise and counter-clockwise rotation without angular limit
- 9° angular travel per handwheel revolution
- 430 mm maximum adjustable slider height
- 45 mm slider stroke
- Stable aluminium frame
- Controlled reducer-assisted loading
Applications
- Torque screwdriver testing
- Rotational component and rotor checks
- Repeatable assembly torque measurement
- Laboratory and production quality control

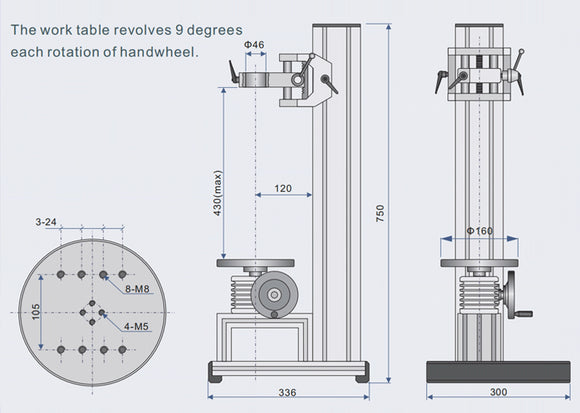

Specifications
| Maximum torque | 100 N·m |
|---|---|
| Angular travel | Clockwise or counter-clockwise, no limit |
| Angular rate | 9° per handwheel revolution |
| Throat | 120 mm |
| Maximum slider height | 430 mm |
| Slider stroke | 45 mm |
| Dimensions | 336 × 330 × 750 mm |
| Weight | 19 kg |
Important
This listing is for the EST-TT2 test stand only. The torque tester, sensor and application-specific fixtures are sold separately.
