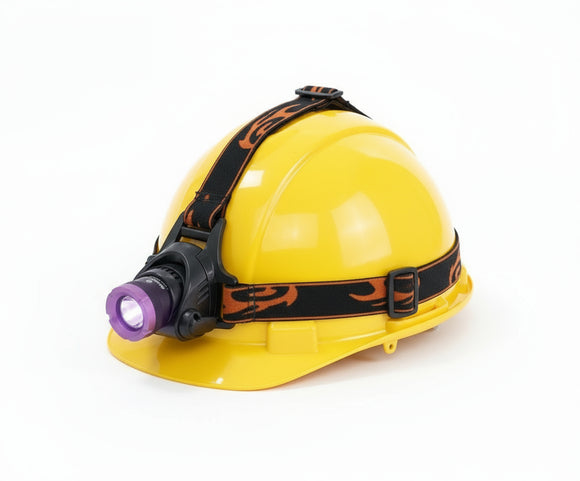

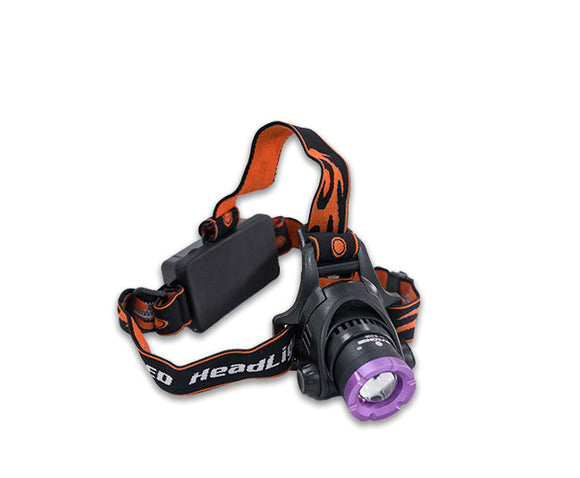

SL3100 Adjustable 365 nm UV-A LED Headlamp

Product Description:

The SL3100 is a compact, head-worn UV LED flashlight designed for non-destructive testing (NDT) applications such as fluorescent penetrant (PT) and magnetic particle inspection (MP). With a zoomable lens and rotating top head, the SL3100 offers flexible, hands-free UV illumination in challenging environments.

Delivering up to 10 000 uWcm2 UV intensity at 38 cm and powered by dual 18650 lithium batteries, it provides 3.5 hours of continuous use. The front head zooms in and out to adjust the beam from 20 mm to 100 mm, while the top head rotates 90°, allowing full illumination control.

Compact, rugged, and built for field use, the SL3100 is ideal for mining, maintenance, inspection, and industrial operations where visibility and mobility are essential.

Key Features:

• 365nm Nichia UV LED with optical lens

• Head-worn design allows hands-free operation

• Up to 10 000 uWcm2 UV intensity (beam at 100 mm)

• Adjustable beam area: 20 mm to 100 mm at 38 cm distance

• 90° rotating head for angled inspection coverage

• Low visible light emission (<2FC)

• Mechanical cooling system for stable UV output

• Constant current driver ensures consistent intensity as battery drains

• 3.5 hours of continuous runtime with 2 x 18650 lithium batteries

• Ideal for fluorescent MP, PT, mining, and field inspection

Technical Specifications:

• Model: SL3100 adjustable UV LED headlamp

• UV Wavelength: 365–370nm

• UV Intensity (38 cm):

  • 10 000 uWcm2 (beam at 100 mm)

  • 5 000 uWcm2 (beam at 130 mm)

• LED: 1 x 365nm UV LED (Nichia), lifespan: 30 000 hours

• Battery: 2 x 18650 lithium battery, 4400mAh total

• Runtime: 3.5 hours continuous

• UV Intensity Stability: >80%

• Irradiated Area (38 cm): 20–200 mm

• Size: 40 x 38 mm

• Weight: 200 g (without accessories)

Industries Used In:

• Non-destructive testing (NDT)

• Magnetic particle inspection (MPI)

• Fluorescent penetrant inspection (FPI/PT)

• Mining equipment and shaft inspection

• Maintenance and plant operations

• Field inspection in tight or hard-to-reach areas

• Forensic, leak detection, and portable quality control
