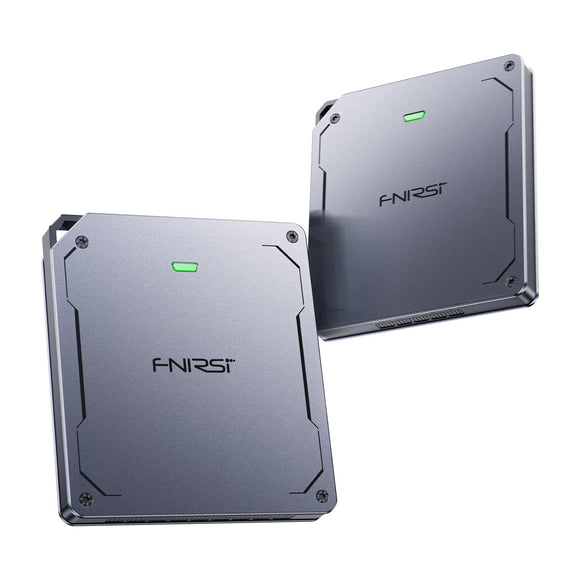

Compact digital logic analysers for timing measurements, serial protocol decoding and embedded-system debugging. Select 16 or 32 channels to suit the application.
Features
- 4 Gbit hardware memory and USB 3.0 connectivity
- Buffer, Stream and Roll acquisition modes
- 120+ protocol decoders and custom protocol support
- Four 3.3 V PWM outputs; CSV and BIN data export
Specifications
| Models / digital channels | DLA-16 Plus: 16; DLA-32 Plus: 32 |
|---|---|
| Maximum buffer sampling | Both: up to 1 GSa/s with up to 8 channels; DLA-16: 500 MSa/s at 16 channels; DLA-32: 250 MSa/s at 32 channels |
| Maximum stream sampling | DLA-16: 125 MSa/s at 16 channels; DLA-32: 50 MSa/s at 32 channels |
| Hardware memory | 4 Gbit |
| Host connection | USB 3.0 / USB Type-C |
| PWM outputs | 4 channels; 3.3 V; 1 Hz to 20 MHz |
| Advanced serial / parallel triggers | DLA-32 Plus |
| Dimensions | Approximately 90 x 81 x 11.5 mm |
Applications
Microcontroller development, serial-bus troubleshooting, digital timing analysis and electronics education.
Supplied package
Selected analyser, USB data cable and test leads/accessories supplied for the selected configuration. A host computer is required and is not included.
Availability
Supplier order: estimated delivery 8–14 working days, subject to availability. Local stock is not currently held.
