Underground Water Leak Detector for Pipelines | Acoustic Leak Locator PQ125 Series

R 21,300.00

Tax includedShipping calculated at checkout

PQWT Barcode: 4250348733641

Model Variants: PQ125A

Shipping
Ships in 5-10 business days

Warranty
1 year standard warranty

Description Shipping

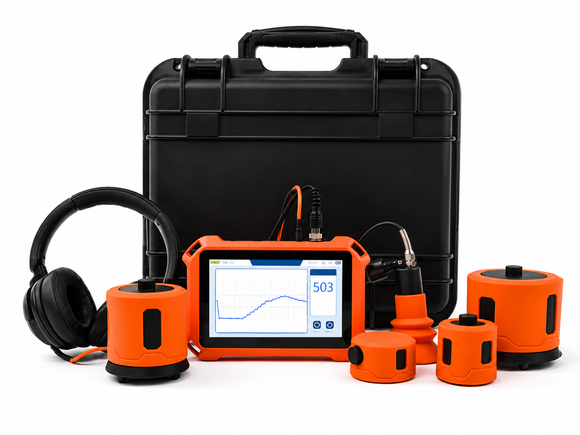

PQWT PQ125E Intelligent Pipeline Water Leak Detector

Professional Multi-Sensor Water Leak Detection System for Municipal, Industrial & Residential Pipelines

The PQWT PQ125E is the most advanced model in the PQ125 Series, combining multiple acoustic sensors with tracer gas leak detection technology to accurately locate underground water leaks in virtually any environment. Featuring AI-assisted waveform analysis, intelligent noise filtering, and a large 7-inch touchscreen display, the PQ125E is designed for professional leak detection across municipal water networks, industrial facilities, commercial buildings, and residential plumbing systems.

Unlike conventional leak detectors, the PQ125E allows technicians to adapt to different pipe materials, burial depths, and environments by selecting the most suitable sensor for the application.

Key Features

  • AI-assisted leak detection with intelligent waveform analysis
  • 7-inch high-resolution colour touchscreen
  • Multi-sensor platform for indoor, outdoor and tracer gas detection
  • Acoustic resonance and dual-membrane sensing technology
  • Advanced noise filtering for improved accuracy
  • Adjustable gain and volume settings
  • USB data transfer to computer
  • Lightweight portable design
  • Rechargeable 7000mAh lithium battery
  • Up to 8 hours operating time

Applications

Ideal for locating leaks in:

  • Municipal water distribution networks
  • Residential plumbing systems
  • Commercial buildings
  • Fire protection pipework
  • Industrial process water systems
  • Underground pipelines
  • Plastic and metal pipe installations

Sensor Configuration

The PQ125E includes five specialised sensors allowing detection in almost any scenario.

DMR-H40 Dual-Membrane Sensor

Designed for confined indoor environments where high contact sensitivity is required.

Suitable for:

  • Wall leaks
  • Floor leaks
  • Tight spaces
  • Pipe galleries

DMR-V59 Dual-Membrane Sensor

A lightweight portable sensor optimised for general indoor leak detection.

Suitable for:

  • Buildings
  • Residential plumbing
  • Mechanical rooms

RCS-S3 Acoustic Resonance Sensor

Designed for outdoor shallow buried pipelines.

Recommended for:

  • Pipe diameters below 100 mm
  • Burial depths up to 3 metres

RCS-L6 Acoustic Resonance Sensor

Heavy-duty outdoor sensor for larger buried pipelines.

Recommended for:

  • Pipe diameters above 100 mm
  • Burial depths up to 6 metres

TLS-H8 Tracer Gas Leak Sensor

Uses tracer gas diffusion technology to detect escaping gas from underground leaks.

Maximum detection depth:

  • Up to 8 metres

Ideal where acoustic methods become difficult due to:

  • Heavy traffic noise
  • Loose soil
  • Deep pipe installations
  • Plastic pipelines

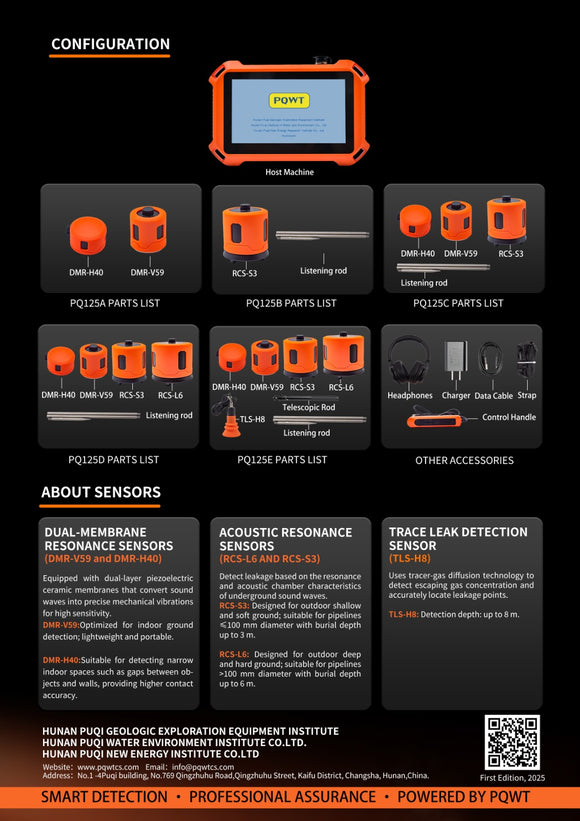

Package Includes

  • PQWT Host Machine
  • DMR-H40 Sensor
  • DMR-V59 Sensor
  • RCS-S3 Sensor
  • RCS-L6 Sensor
  • TLS-H8 Tracer Gas Sensor
  • Listening Rod
  • Telescopic Rod
  • Headphones
  • Charger
  • USB Data Cable
  • Control Handle
  • Carry Strap

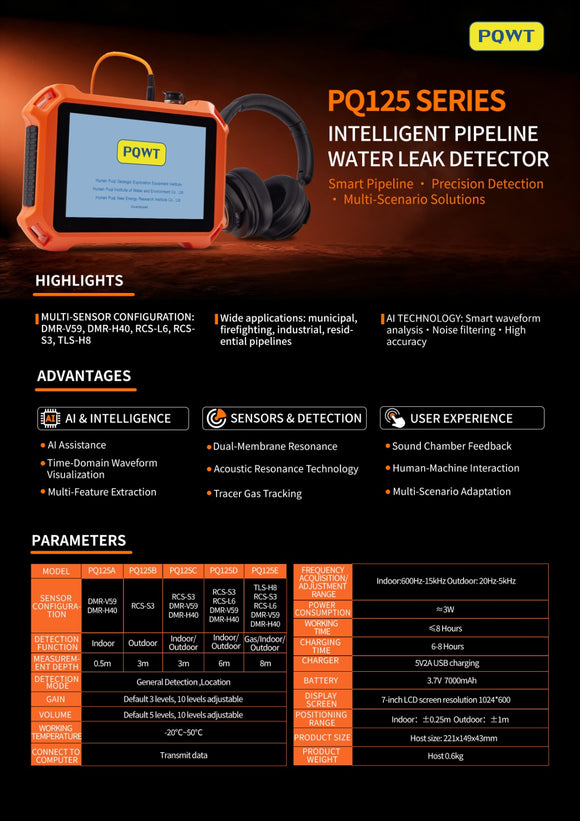

Technical Specifications

Specification Value
Model PQ125E
Detection Functions Gas / Indoor / Outdoor
Maximum Detection Depth 8 m
Detection Mode General Detection & Precise Location
Gain Adjustment 10 Levels
Volume Adjustment 10 Levels
Frequency Range Indoor: 600 Hz–15 kHz Outdoor: 20 Hz–5 kHz
Positioning Accuracy Indoor ±0.25 m Outdoor ±1 m
Display 7" LCD (1024 × 600)
Battery 3.7V 7000mAh Lithium
Operating Time Up to 8 Hours
Charging Time 6–8 Hours
Charging 5V/2A USB
Power Consumption Approx. 3W
Operating Temperature -20°C to +50°C
Data Interface USB Data Transfer
Host Dimensions 221 × 149 × 43 mm
Host Weight 0.6 kg
Feature PQ125A PQ125B PQ125C PQ125D PQ125E
Best For Indoor Plumbing Outdoor Pipelines Indoor & Outdoor Professional Leak Detection Complete Leak Detection Solution
Indoor Leak Detection ✅ ❌ ✅ ✅ ✅
Outdoor Leak Detection ❌ ✅ ✅ ✅ ✅
Shallow Buried Pipes (Up to 3m) ❌ ✅ ✅ ✅ ✅
Deep Buried Pipes (Up to 6m) ❌ ❌ ❌ ✅ ✅
Tracer Gas Leak Detection ❌ ❌ ❌ ❌ ✅
DMR-H40 Sensor ✅ ❌ ✅ ✅ ✅
DMR-V59 Sensor ✅ ❌ ✅ ✅ ✅
RCS-S3 Sensor ❌ ✅ ✅ ✅ ✅
RCS-L6 Sensor ❌ ❌ ❌ ✅ ✅
TLS-H8 Tracer Gas Sensor ❌ ❌ ❌ ❌ ✅
Maximum Detection Depth 0.5 m 3 m 3 m 6 m 8 m
Recommended User Plumbers Water Utilities Contractors Leak Detection Specialists Professional Survey Teams


Why Choose the PQ125E?

The PQ125E provides exceptional flexibility by combining multiple acoustic technologies with tracer gas detection in a single platform. Whether you're locating leaks inside commercial buildings, tracing underground municipal water mains, or finding difficult leaks in deep buried pipelines, the PQ125E gives technicians the correct sensor for every application.

Its AI-assisted processing, intelligent noise suppression and professional-grade sensor suite make it suitable for water authorities, plumbing contractors, leak detection specialists, maintenance teams and industrial facilities seeking fast, accurate and repeatable leak location.

Shipping: 5-10 business days
