Overview

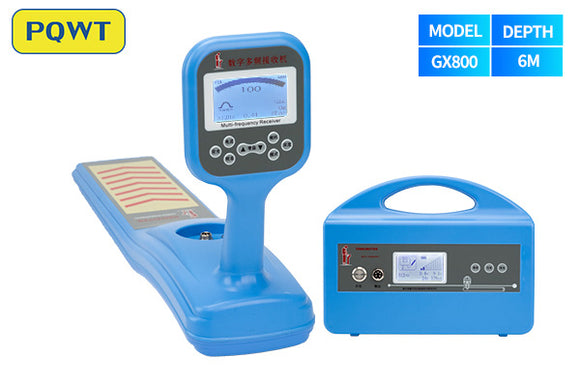

The PQWT-GX800 is a professional underground utility locator for tracing metallic pipelines and cables, measuring burial depth and helping locate cable faults. Its low-frequency and radio-frequency electromagnetic system is intended for municipal, industrial and utility-maintenance work.
Key Features
- Low-frequency and RF electromagnetic pipeline and cable locating
- Direct, coupling and inductive transmitter modes
- Path tracing, depth measurement and cable-fault positioning
- 100 dB manually adjustable receiver gain
- Graphical signal strength, current indication and audio guidance
- Suitable for energised and non-energised cable routes
Applications
- Underground power-cable route tracing
- Metal water, gas and heating-pipeline locating
- Municipal utility surveys before excavation
- Industrial-site underground service mapping
- Cable insulation-fault investigation
Specifications
| Model | PQWT-GX800 |
|---|---|
| Detection principle | Low-frequency and RF electromagnetic induction |
| Published target-detection depth | Approximately 5–6 m maximum, dependent on target and site conditions |
| Published digital depth measurement | Up to 2.5 m |
| Transmitter modes | Direct, coupling and inductive |
| Receiver battery life | More than 8 hours continuous use |
| Receiver size / weight | 70 × 20 × 11 cm / 3 kg including battery |
| Transmitter size / weight | 16 × 16 × 39 cm / 4 kg including battery |
| Warranty | 1 year |
Detection performance depends on the target, installation geometry, nearby services, soil conditions and return current.
Included and Optional Accessories

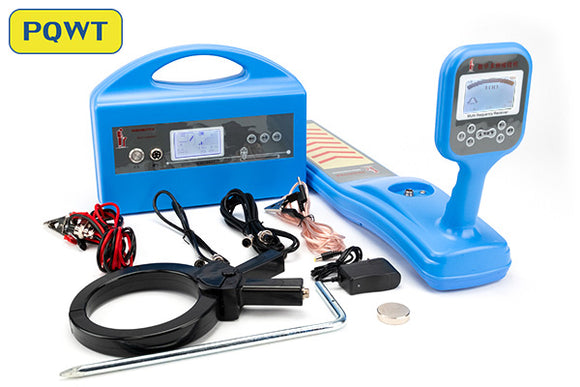

The manufacturer information confirms a transmitter and receiver. Exact leads, clamp, probes, charger and carrying-case contents remain subject to supplier confirmation.
