Overview

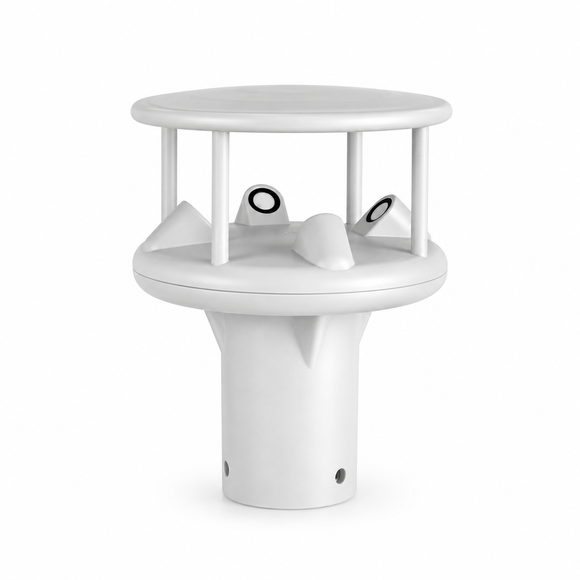

The FST200-208 is a solid-state ultrasonic sensor for continuous wind-speed and wind-direction monitoring without moving parts. It is intended for weather, environmental, infrastructure, ventilation and industrial monitoring installations.
Key specifications
- Wind speed: 0–50 m/s
- Wind direction: 0–360°
- Accuracy: ±0.3 m/s or ±3% from 0–30 m/s; ±5% from 30–50 m/s
- Wind-direction accuracy: ±2°
- Output: RS485 or 4–20 mA, configuration dependent
- Supply: 12–24 V DC
- Operating temperature: -20 to 60°C
- Protection: IP66 quoted
Ordering
This is a configurable, special-order product. Output, cable, calibration documentation, price and lead time are confirmed at quotation.
Documentation and supply
- Firstrate supplies a general technical datasheet rather than a model-specific datasheet.
- CE and RoHS documentation is available.
- A factory test report is available on request; this is not an accredited calibration certificate.
- One-year manufacturer warranty.
- Typical supplier lead time: 7–10 working days after payment.
Special-order product. Final configuration and included components are confirmed at quotation. Price includes 15% VAT; international freight and optional certification charges are quoted separately.
