Product Description:
Ultrafast Installation. Zero Downtime. Precision Flow Monitoring.

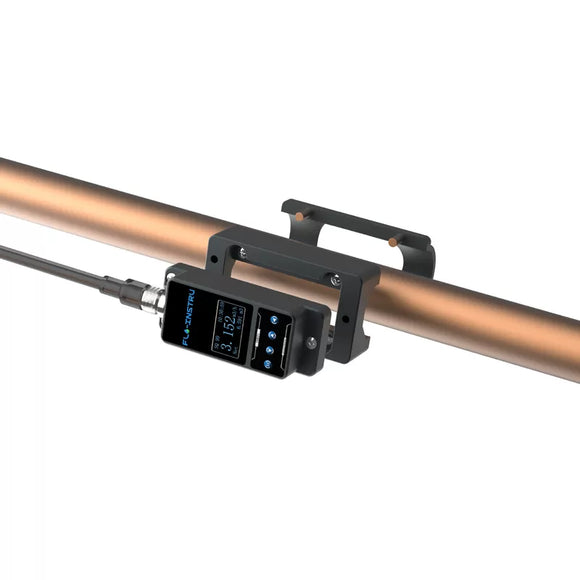

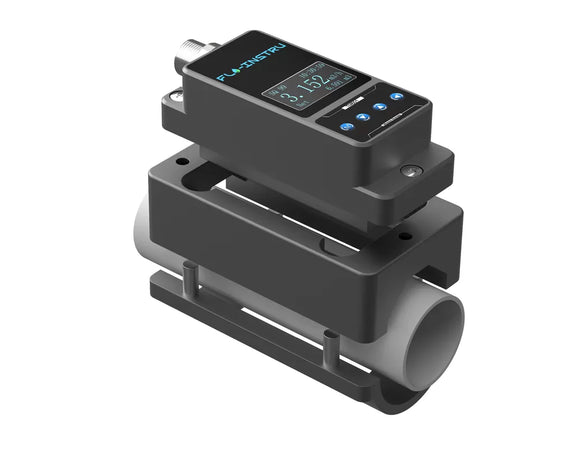

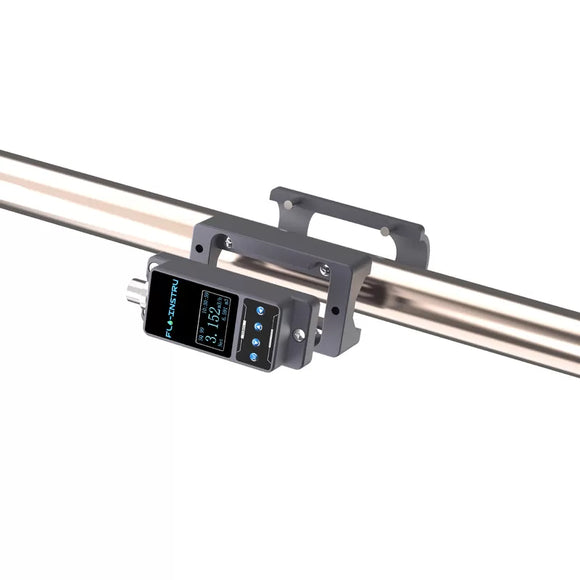

The TM601 Clamp-On Ultrasonic Flowmeter is purpose-built for the ultrasonic cleaning industry, delivering high-precision flow measurement with no interruption to production. With a compact, lightweight design and simple clamp-on mounting, installation is completed in just one minute, without modifying your pipeline or halting operations.
The TM601 features a bright OLED display (128×64 px) for easy readability even in low-light conditions, and is compatible with a broad range of pipe materials—including stainless steel, carbon steel, PVC, PPR, and more.
Key Features & Benefits:
-
1-Minute Installation:
Get up and running fast—no system shutdowns, pipe cutting, or process interruptions required. -
No Pipe Modifications:

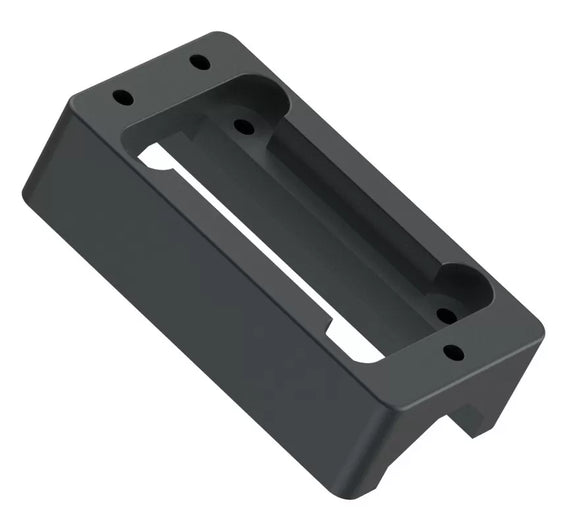

Clamp-on design enables external installation with zero pressure loss or leakage risk. -
Tool-Free Simplicity:
Only a Phillips-head screwdriver is needed—no special tools or technical expertise required. -

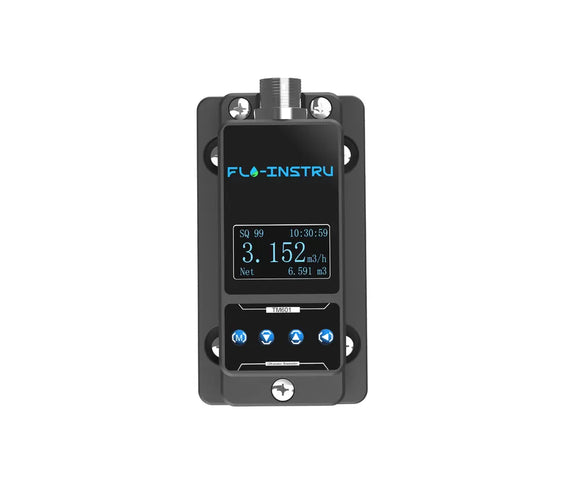

OLED Display:
High-contrast screen ensures clear readings in dark or dimly lit environments. -
Wide Pipe Compatibility:
Works with stainless steel, carbon steel, copper, PVC, PVDF, HDPE, PPR, PPH, and more. -
High Accuracy & Fast Response:
Accurate flow detection with a response speed of up to 0.03 m/s—suitable for both standard and precision monitoring applications.
Ideal For Use In:
-
Ultrasonic Cleaning Machines
-
Manufacturing Equipment Monitoring
-
Industrial Washing Systems
-
Compact Flow Monitoring Setups
-
Environments Requiring Fast Setup & Minimal Downtime
Specifications
| Velocity Rate | 0.328 ft/s～±16ft/s(0.1m/s～±5m/s) |
| Accuracy | ±2.0% |
| Pipe Size | DN4 DN8 DN10 DN15 DN20 DN25 DN32 |
| DN40 DN50 DN65 DN80 DN100 DN125 DN200 | |
| Liquid | Regular water,sea water,cooling/hot water,alcohol.. |
| Pipe Material | PVC,stainless steel,carbon steel,copper.… |
| Power Supply | 9～36V DC,maximum 500mA |
| Communication | Support MODBUS protocol,RS485 |
| Analog Output | 4-20mA,Maximum 750Ω |
| Alarm Output | OCT upper and lower limit alarm function (optional) |
| Display | OLED 128*64 dot-matrix display screen |
| Key Panel | Four touch buttons |
| Flow Unit | Support metric unit selection,Cubic Meters(m³),Liters(l),USA Gallons(gal). |
| Time Unit | /hour,/min,The factory default unit is cubic meters per hour. |
| Daily,Monthly,and Annual Flow Totalizer | |
| Temperature | Ambient:14F～+122F(-10℃～+50℃) |
| Liquid:14F～+122F(-10℃～+50℃) | |
| Ambient Humidity | RH 0～95%,No condensation |
| Housing Material | Aluminum alloy,CNC machined processing |
| Protection Rate | IP54 |
| Cable Length | 6.6ft (2m)standard |
The Pipe Size Range and Flow Range Reference Table
| DN | OD | OD Range | Inch | Flow Range |
| DN4 | OD9.53 | 95mm-10.5mm | 1/8" | 0.003～0.142 m³/h |
| 0.047～2.374 I/min | ||||
| 0.013～0.627 gal/min | ||||
| DN8 | OD12.7 | 12.4mm-13.1mm | 1/4" | 0.011～0.570 m³/h |
| 0.190～9.496 I/min | ||||
| 0.050～2.509 gal/min | ||||
| DN10 | OD15 | 14.5mm-15.4mm | 3/8" | 0.026～1.282 m³/h |
| 0.427～21.366 l/min | ||||
| 0.113～5.644 gal/mir | ||||
| DN15 | OD20 | 16.5mm-23.0mm | 1/2" | 0.046～2.279 m/h |
| 0.760～37.984 l/min | ||||
| 0.201～10.034 gal/min | ||||
| DN20 | OD25 | 25.0mm-30.0mm | 3/4" | 0.103～5.128 m/h |
| 1.709～85.464 l/min | ||||
| 0.452～22.577 gal/min | ||||
| DN25 | OD32 | 32.0mm-35.0mm | 1" | 0.182～9.116 m³/h |
| 3.039～151.935 l/min | ||||
| 0.803～40.137 gal/min | ||||
| DN32 | OD40 | 38.0mm-45.0mm | 1-1/4" | 0.285～14.244 m³/h |
| 4.748～237.399 l/min | ||||
| 1.254～62.714 gal/min | ||||
| DN40 | OD50 | 48.0mm-54.0mm | 1-1/2" | 0.410～20.511 m³/h |
| 6.837～341.854 l/min | ||||
| 1.806～90.309 gal/min | ||||
| DN50 | OD63 | 58.0mm-64.0mm | 2" | 0.729～36.464 m³/h |
| 12.155～607.741 l/min | ||||
| 3.211～160549 gal/mir | ||||
| DN65 | OD75 | 72.0mm-78.0mm | 2-1/2" | 1.140～56.976 m³/h |
| 18.992～949.595 I/min | ||||
| 5.017～250.857 gal/mir | ||||
| DN80 | OD90 | 80.0mm-92.0mm | 3" | 1.641～82.045 m/h |
| 27.348～1367.417 l/min | ||||
| 7.225～361.234 gal/mir | ||||
| DN100 | OD110 | 108.0mm-116.0mm | 4" | 2.917～145.858 m³/h |
| 48.619～2430.963 I/min | ||||
| 12.844～642.194 gal/min | ||||
| DN125 | OD140 | 132.0mm-142.0mm | 5" | 4.558～227.903 m³/h |
| 75.968～3798.380 l/min | ||||
| 20.069～1003429 gal/min | ||||
| DN200 | OD220 | 218.0mm-228.0mm | 8" | 11.669～583.431 m³/h |
| 194.477～9723.852 I/min | ||||
| 51.376～2568.778 gal/min |
