Description
The digital temperature indicator is used for processing signals from Pt100 temperature sensors or thermocouples (type J, K). The measurement results are shown on the large 5-digit LED-display of the temperature indicator. Depending on the actual values, the temperature can be shown in three different colours, which makes it easier to evaluate them.
The temperature indicator can also output signals via its two open collector outputs, when a threshold value is exceeded. This allows the usage of external alarm systems in combination with the temperature indicator. The threshold values and other konfiguration settings can be set by using the free software LPCon and the optional PCE-PD 14 programming adapter. The temperature indicator is available with different measuring units, inputs and power supplies. You can select the particular parameters further below.
Highlights
- Accuracy: ± (0.2 % FS + 1 dgt.)
- IP 65 protection on the front
- for Pt100 sensors or thermocouples
- connection via screw terminals
- 24 V power supply sytem for sensors and transducers
- 5-digit, three-coloured LED display
- two open connector outputs
Specification
| Input (selectable) | PT100 : -50 ... +400 °C Thermocouple type J: -50 ... +1200 °C Thermocouple type K: -50 ... +1370 °C |
| Measuring current | < 300 µA |
| Accuracy | ± (0.2 % FS + 1 dgt.) |
| Scale | 2 points |
| Averaging time | 0.5 ... 20 s |
| Outputs | 2x open collector outputs, 30 V, 20 mA |
| Display | 5-digit 7-segment LED display, height: 14 mm, three-coloured |
| Display range | -19999 ... 99999 |
| Environmental temperature | During operation: -10 °C ... 55 °C During Storage: -25 °C ... +85 °C |
| max. humidity | 95 % non-condensing |
| Dimensions | 96 mm x 48 mm x 64 mm |
| Panel installation | 92 mm x 45 mm (according to DIN standard) |
| Power supply (selectable) |
85 ... 253 V AC/DC 20 ... 40 V AC/DC |
| Power consumption | < 6 VA |
| Protection class | Front: IP 65 |
| Weight | < 250 g |

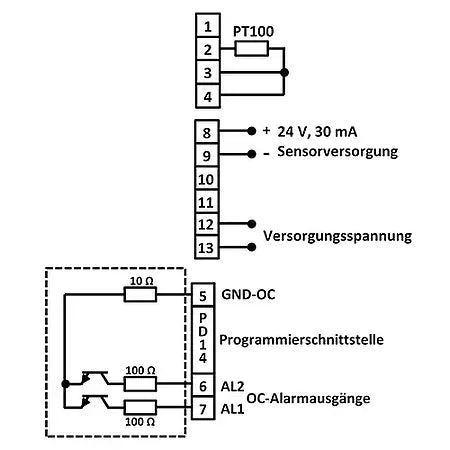

| Mounting | Mounting clips with screws, Connection via screw terminals (connection plan on the housing) |
| Housing | Solid plastic |
|
|
|
Delivery Scope
1 x mounting clips
1 x gasket seal
1 x instruction manual
