Overview

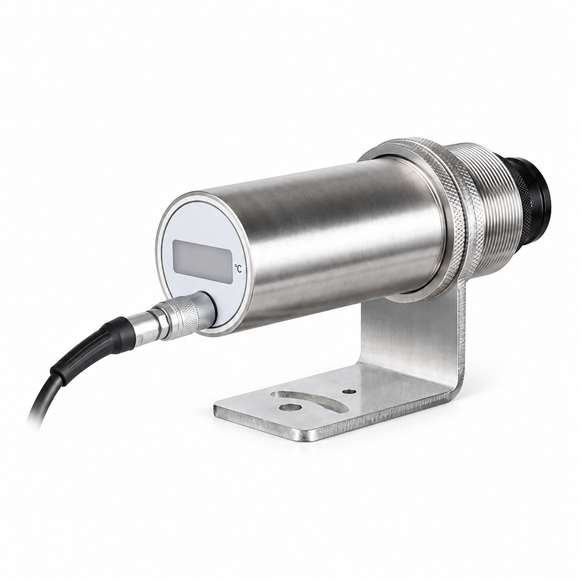

The FST600-407 is a fixed shortwave infrared temperature sensor with coaxial laser aiming for continuous high-temperature industrial process monitoring.
Quoted configuration
- Temperature range: 600–2000°C
- Spectral range: 1.6 μm or 1 μm, configuration dependent
- Optical resolution: 100:1
- Accuracy: ±1% of measured value quoted
- Output: 4–20 mA
- Supply: 10–30 V DC
- Protection: IP65 quoted
- Cable: 1.5 m quoted
Applications
- High-temperature industrial processes
- Metals, furnaces and heat treatment
- Continuous non-contact temperature monitoring
Ordering
This listing is for the supplier-quoted 600–2000°C configuration. Other ranges are quoted separately.
Documentation and supply
- Firstrate supplies a general technical datasheet rather than a model-specific datasheet.
- CE and RoHS documentation is available.
- A factory test report is available on request; this is not an accredited calibration certificate.
- One-year manufacturer warranty.
- Typical supplier lead time: 7–10 working days after payment.
Special-order product. Final configuration and included components are confirmed at quotation. Price includes 15% VAT; international freight and optional certification charges are quoted separately.
