Overview

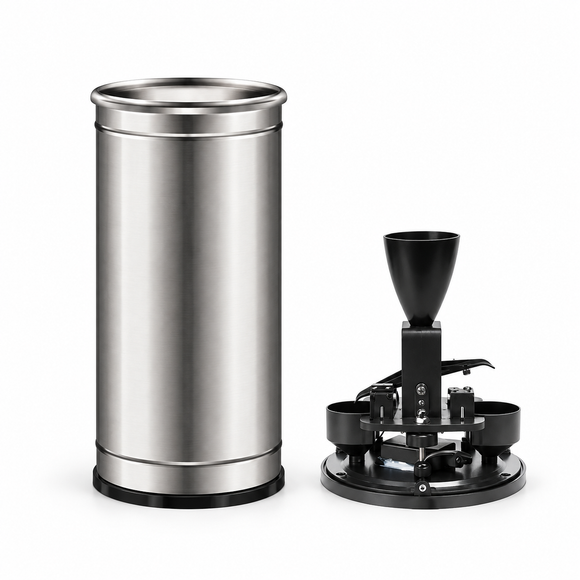

The FST100-2008 is a tipping-bucket rain gauge for automated rainfall monitoring in weather, agricultural and environmental systems.
Key specifications
- Rainfall intensity: up to 4 mm/min; quoted maximum pass-through intensity 8 mm/min
- Resolution: 0.2 mm
- Accuracy: within ±3% quoted
- Output: RS485
- Supply: 12–24 V DC
- Operating temperature: -10 to 50°C
Ordering
This is a special-order product. Mounting, cable, calibration documentation, price and lead time are confirmed at quotation.
Documentation and supply
- Firstrate supplies a general technical datasheet rather than a model-specific datasheet.
- CE and RoHS documentation is available.
- A factory test report is available on request; this is not an accredited calibration certificate.
- One-year manufacturer warranty.
- Typical supplier lead time: 7–10 working days after payment.
Special-order product. Final configuration and included components are confirmed at quotation. Price includes 15% VAT; international freight and optional certification charges are quoted separately.
