Product Description

The Tomlin TC-K22A is a professional robotic pipe inspection crawler designed for the inspection of large-diameter pipelines, stormwater networks, sewers, culverts and industrial process pipes.

Featuring a rugged 4-wheel motorised crawler, Full HD camera system and an automatic 120m cable reel, the TC-K22A provides reliable remote inspections where conventional push cameras cannot operate. The compact crawler is capable of navigating pipelines larger than 300mm in diameter, delivering high-definition video while maintaining excellent traction and stability.

The system is operated via a 10.4-inch Android tablet controller with wireless remote control and is powered by a high-capacity rechargeable lithium battery for extended field operation. With an IP68-rated crawler body, 250mm lifting capability and climbing ability of up to 45°, the TC-K22A is engineered for demanding municipal, industrial and utility inspection applications.

Key Features

• Four-wheel robotic pipe inspection crawler
• Suitable for pipelines from 300mm diameter and larger

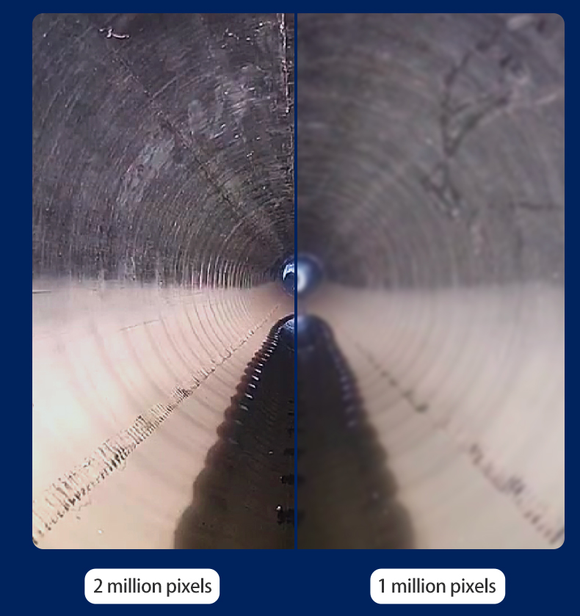

• Full HD 1920 × 1080 inspection camera
• 2MP CMOS imaging sensor
• Automatic electric cable reel
• 120m inspection cable
• 10.4-inch Android tablet controller
• Wireless remote control

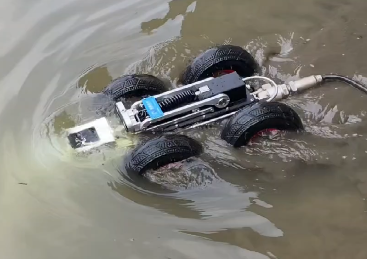

• IP68 waterproof crawler
• Up to 250mm camera lifting height
• Climbs slopes up to 45°
• Rechargeable 48V lithium battery system
• Designed for municipal and industrial inspections

Typical Applications

• Sewer inspections
• Stormwater pipelines
• Large-diameter drainage systems
• Culvert inspections
• Industrial process pipelines
• Water infrastructure inspections
• Utility asset condition surveys
• Municipal pipeline maintenance
• Pre-commissioning inspections
• Pipeline rehabilitation assessments

Technical Specifications

What's Included

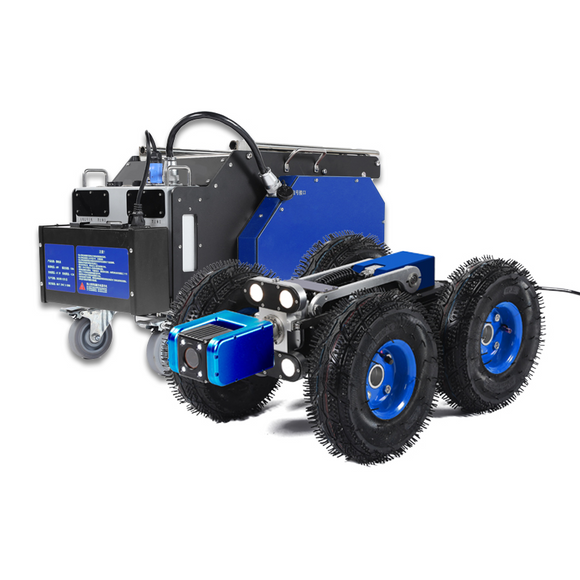

• Four-wheel robotic crawler
• Full HD inspection camera
• Automatic 120m cable reel
• 10.4-inch Android tablet controller
• Wireless remote control
• 48V lithium-ion battery pack
• Battery charger
• Operating accessories
• User manual

Why Choose the TC-K22A?

The TC-K22A bridges the gap between conventional push cameras and premium robotic crawler systems by offering professional inspection capability in a compact, easy-to-deploy package. Its motorised crawler, automatic cable reel and Full HD imaging make it ideal for inspecting large pipelines where long inspection distances, superior traction and high-quality video are essential.

Designed for municipal contractors, utility providers and industrial maintenance teams, the TC-K22A delivers dependable performance for routine inspections, asset condition assessments and pipeline maintenance projects.

Optional Accessories

The TC-K22A can be configured with optional accessories to suit specific inspection requirements, including different wheel sets, cable lengths and additional crawler attachments (availability dependent).
