Product Description
Overview

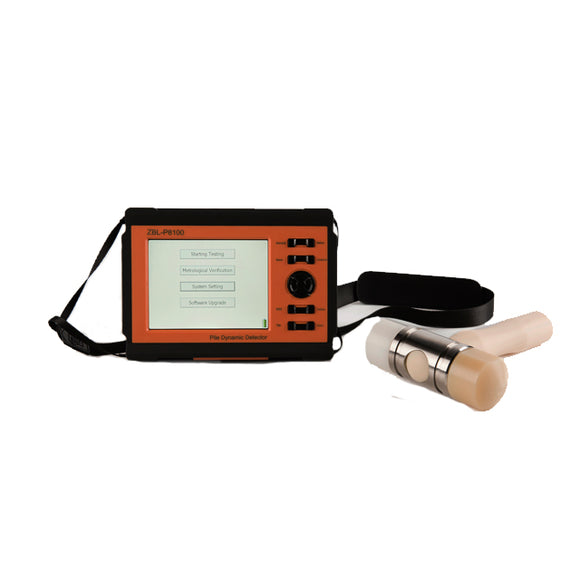

The ZBL-P8100 Low Strain Pile Integrity Tester is designed to evaluate the structural soundness of concrete piles using reflected wave technology. Suitable for both cast-in-place and precast piles, it can detect defects, cracks, and discontinuities by analyzing waveforms generated from impact response.
Equipped with dual data acquisition channels, touchscreen operation, and advanced signal processing, it supports both hammer and accelerometer probes for maximum flexibility in the field.
Key Features
-
Tests pile integrity, defect location, and continuity
-
Dual-channel data acquisition for comprehensive analysis
-
Adjustable waveform magnification and sampling intervals
-
Built-in lithium battery or optional AC/DC power supply
-
Key + touchscreen user interface
-
Supports various probes and sensors for pile and foundation testing
-
Wi-Fi connectivity and USB output
Technical Specifications
| Specification | Value |
|---|---|
| Control Mode | A8 Embedded Platform |
| Data Storage | ≥24 GB |
| Operation | Key + Touchscreen |
| Magnification Options | 1.25, 1.0, 20, 50, 100 |
| A/D Resolution | True 24-bit A/D |
| Sampling Interval (μs) | 1–6000 (adjustable) |
| Max Sampling Length | 4096 |
| Trigger | Signal Trigger |
| Noise Level (mV) | ≤1 |
| Dynamic Range (dB) | ≥84 |
| Amplifier Frequency Range (Hz) | 10–10K |
| Channels | 2 |
| Sensitivity (mV/g) | ≥100 |
| Probe Frequency Range (Hz) | 0.5–9000 |
| Time Value Error | ≤1% |
| Gain Error | ≤1% |
| Port | Double USB |
| Wi-Fi | Yes |
| Power (Internal) | Built-in Lithium Battery |
| Power (External) | 220V AC/DC |
| Operating Temp | -10°C to +50°C |
| Humidity Range | <90% RH |

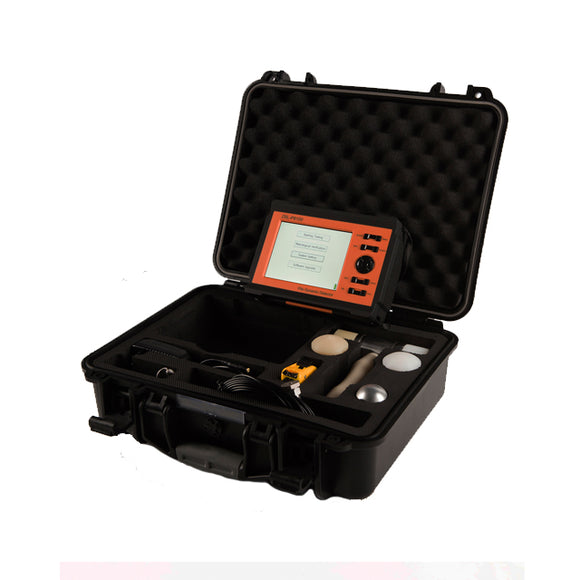

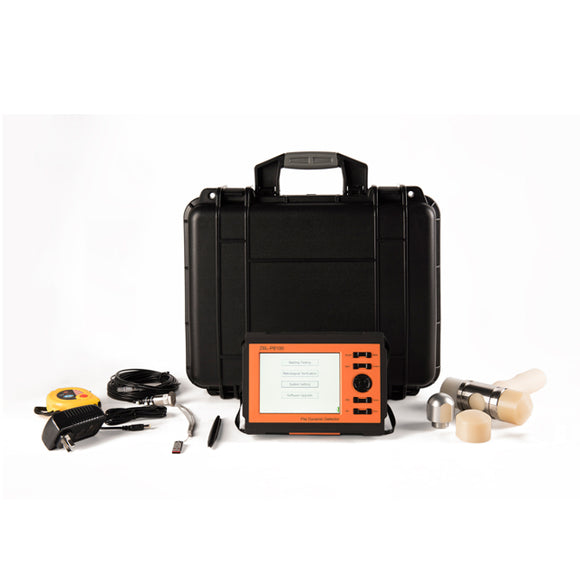

Standard Delivery Includes
-
Main Unit
-
Accelerometer or Hammer Probe
-
Signal Cable
-
Charger
-
USB Drive
-
Carrying Case
-
User Manual
