Overview

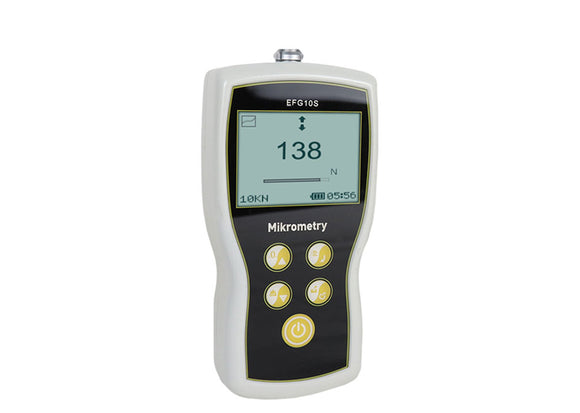

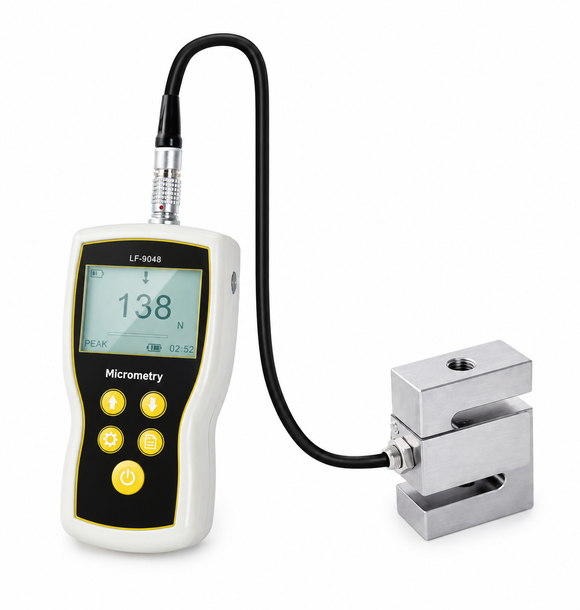

The EFG10S-S is a complete digital force-gauge set comprising the EFG10S indicator and an external S-type sensor. The sensor measures both tension (pull) and compression (push).
Applications
- Pull-force and tensile testing
- Push-force and compression testing
- Component insertion and extraction testing
- Production fixtures and test stands
Key specifications
- Accuracy: ±0.2% of full scale
- Track, peak, auto-peak and first-peak modes
- Sampling rate: up to 2 kHz
- Memory: 1,000 readings
- USB and RS-232 communication
- Rechargeable battery
Available capacities
1 kN, 2 kN, 5 kN, 10 kN and 20 kN.
Included equipment

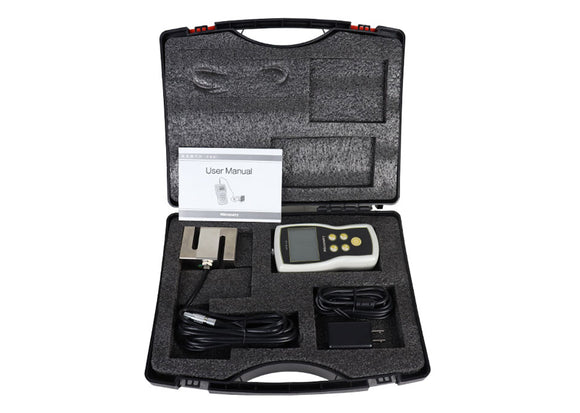

EFG10S indicator, selected S-type sensor, charger, data cable, operating manual and manufacturer certificate.
