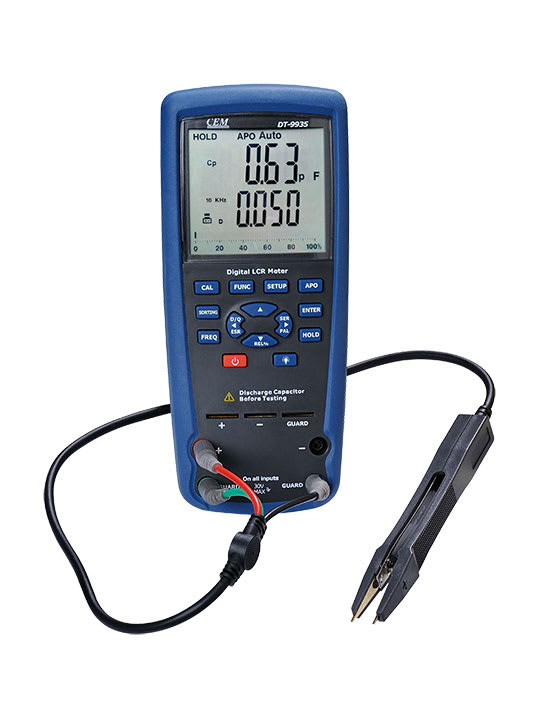

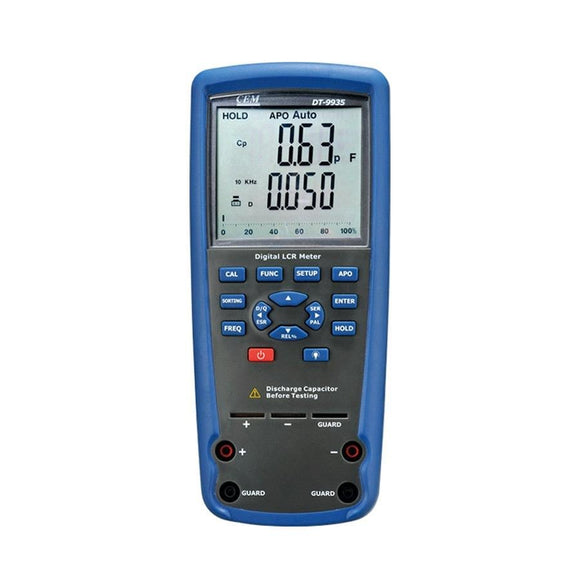

The CEM DT-9935 is a dedicated professional LCR meter for precision component measurement, automatically identifying and measuring inductance, capacitance and resistance together with quality factor, dissipation factor and phase angle.
Key Features
- Automatic L, C and R measurement selection
- Inductance range: 20 µH to 2000 H
- Capacitance range: 20 pF to 20 mF
- Resistance / DC resistance: 20 Ω to 2000 MΩ
- Measures Q (quality factor), D (dissipation factor) and phase angle θ
- Test frequency up to 10 kHz
- Output test frequency up to 100 kHz
- Supports high-accuracy four- or five-terminal Kelvin measurements
- Auto power-off and low-battery indication
Model: CEM DT-9935
Specifications
| Specification | Details |
|---|---|
| Inductance | 20 µH to 2000 H |
| Capacitance | 20 pF to 20 mF |
| Resistance / DC resistance | 20 Ω to 2000 MΩ |
| Additional parameters | Q, dissipation factor (D), phase angle (θ) |
| Test frequency | Up to 10 kHz |
| Output test frequency | Up to 100 kHz |
| Measurement connection | Kelvin measurement support |
Datasheet
Download the CEM DT-9935 datasheet (PDF)
Applications
- Component inspection and incoming quality control
- Capacitor, inductor and resistor measurement
- Electronics repair and production testing
- Laboratory and educational measurement
