Overview

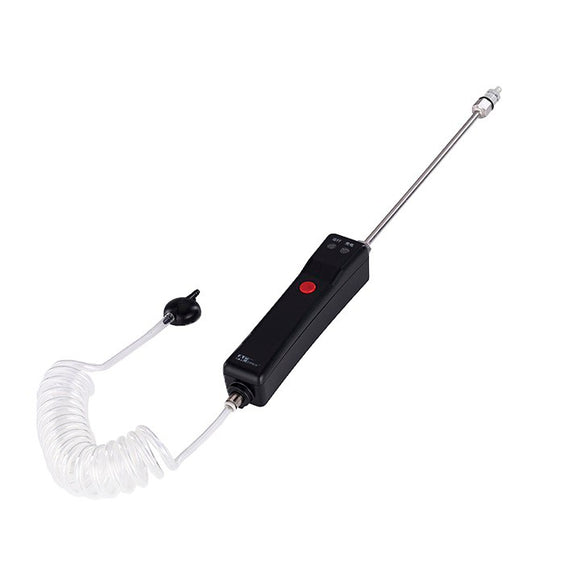

The AGH1000B is a handheld gas sampling pump for use with a compatible portable gas detector. It draws a sample through a suitable probe or hose to support remote checks. The pump does not measure gas concentration on its own.
Key features
- Nominal sampling flow of 500 ml/min.
- Sampling-blockage alarm.
- Replaceable filter and quick-plug connection design.
- Rechargeable battery with status and charging indicators.
Applications and selection
For remote sampling during industrial inspections, wastewater and utilities work, and site-approved entry assessments when paired with a suitable detector. Confirm detector compatibility, connector, hose material, line length and sample transit time for the selected gas. Choose a detector with an integrated pump when a separate sampling accessory is not appropriate.
Specifications
| Model | AGH1000B |
|---|---|
| Nominal flow | 500 ml/min |
| Power | Rechargeable 3.7 V, 2,200 mAh lithium battery |
| Enclosure protection | IP55 |
| Operating temperature | −10 to +55 °C |
| Operating humidity | 10–95% RH, non-condensing |
| Operating pressure | 80–120 kPa |
| Body material | ABS |
| Indication | Status, charging and sampling blockage |
Standards and compliance
For use in a classified hazardous area, confirm the exact pump approval marking and certificate as well as the detector and accessory requirements. Follow the manufacturer instructions for filters, sampling lines and blockage checks.
Included and optional accessories
One AGH1000B sampling pump. A gas detector is not included. Confirm the charger, connector, probe and hose packing list with the quotation. Suitable sampling accessories and replacement filters should be specified for the intended detector and gas.
Compare the gas detection range
This page: AGH1000B external sampling pump. Each detector listing is a separate gas configuration. The pump is an accessory and requires a compatible detector.
| Instrument / gases | Model | Sampling |
|---|---|---|
| Oxygen (O2) | AGH5200 | Diffusion |
| Carbon monoxide (CO) | AGH5200 | Diffusion |
| Hydrogen sulphide (H2S) | AGH5200 | Diffusion |
| Ammonia (NH3) | AGH5200 | Diffusion |
| Sulphur dioxide (SO2) | AGH5200 | Diffusion |
| Nitrogen dioxide (NO2) | AGH5200 | Diffusion |
| Four-gas: LEL / O2 / CO / H2S | AGH6200 | Diffusion |
| Four-gas: CO / O2 / NH3 / NO2 | AGH6200 | Diffusion |
| Dual-gas: H2S / SO2 | AGH6200 | Diffusion |
| Six-gas: LEL / O2 / CO / H2S / SO2 / CO2 | AGH6600 | Built-in pump |
| Four-gas: CO / O2 / NH3 / NO2 | AGH6600 | Built-in pump |
| Dual-gas: H2S / SO2 | AGH6600 | Built-in pump |
| Gas sampling pump | AGH1000B | External pump; detector required |
This comparison is not a universal compatibility list. Confirm detector compatibility, sensor ranges, sampling accessories and certificate scope for the application. Browse gas detection and environmental safety equipment.
Datasheet
Download the AGH1000B manufacturer datasheet (PDF)
Applications
- Remote sampling from confined or inaccessible spaces
- Pre-entry atmosphere checks
- Sampling through tubing before personnel exposure
- Industrial hygiene and gas-monitoring support
