Portable Desktop Spectrophotometer TS8260

R 132,600.00

Tax includedShipping calculated at checkout

3nh SKU: TS8260

Shipping
Ships in 5-10 business days

Warranty
1 year standard warranty

Description Shipping

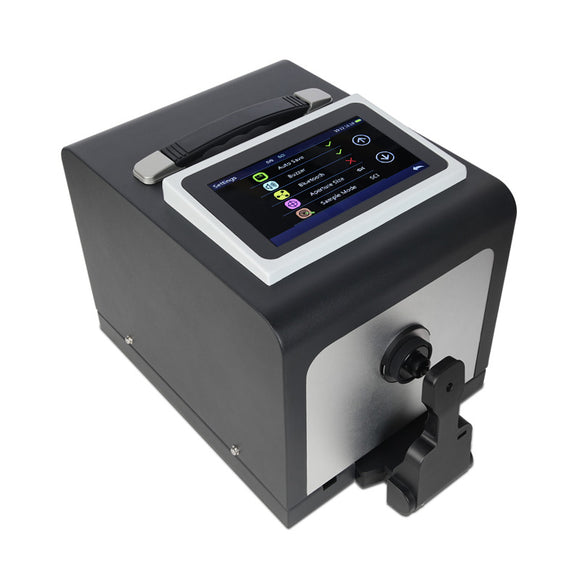

3nh TS8260 Portable Desktop Spectrophotometer

The 3nh TS8260 Portable Desktop Spectrophotometer combines high-accuracy colour measurement with a compact and versatile benchtop design. It is ideal for laboratory, production and quality-control applications where accurate and repeatable colour measurement is required.

The TS8260 uses D/8° optical geometry with SCI/SCE measurement, a Φ40 mm integrating sphere and a full-spectrum LED plus UV light source. Switchable 8 mm and 4 mm measuring apertures provide flexibility for different sample sizes.

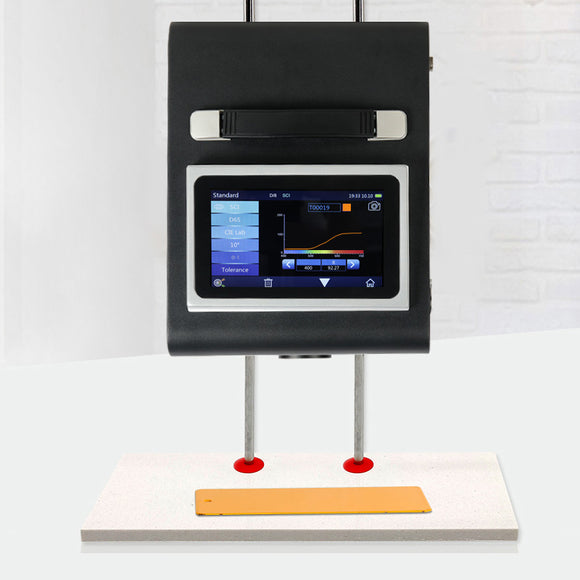

Its unique sample mounting system allows both horizontal and vertical measurement, while built-in camera positioning makes it easy to accurately locate the area being measured.

Key Features

  • Portable desktop design

  • D/8° optical geometry

  • SCI and SCE measurement

  • UV included/excluded measurement

  • Φ40 mm integrating sphere

  • Full-spectrum balanced LED + UV light source

  • Flat grating spectroscopic system

  • Double-row 40-group silicon photodiode sensor

  • 400–700 nm wavelength range

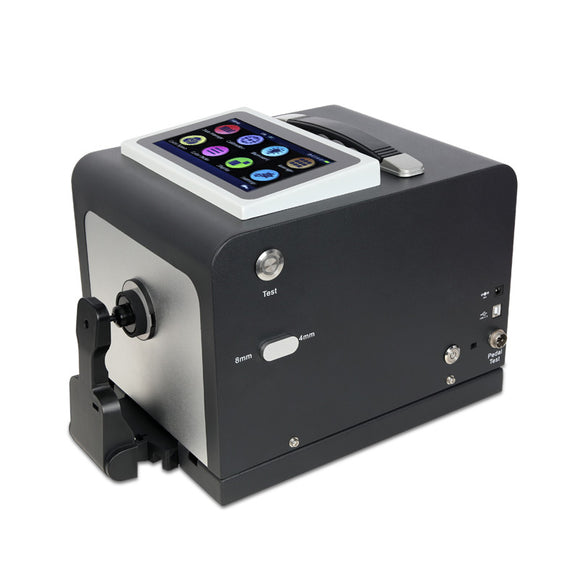

  • Switchable 8 mm and 4 mm measuring apertures

  • Horizontal or vertical sample measurement

  • Built-in camera positioning

  • Fast measurement from approximately 1.5 seconds

  • Repeatability ≤ΔEab 0.02

  • Inter-instrument agreement ≤ΔEab 0.15

  • 7-inch capacitive touchscreen

  • PASS/FAIL colour QC

  • USB and Bluetooth 5.0 connectivity

  • PC colour management software

  • Suitable for fluorescent samples

Applications

Ideal for colour measurement and quality control of:

  • Paints and coatings

  • Plastics

  • Textiles and garments

  • Printing and dyeing

  • Electronics

  • Ceramics

  • Fluorescent materials

  • Manufactured components

  • Laboratory samples

  • Incoming and outgoing QC inspection

Technical Specifications

Specification TS8260
Optical Geometry D/8°, SCI/SCE
Integrating Sphere Φ40 mm
Light Source Full-spectrum LED + UV
Spectroscopic System Flat grating
Sensor Double-row 40-group silicon photodiode array
Wavelength Range 400–700 nm
Wavelength Interval 10 nm
Spectral Bandwidth 10 nm
Reflectance Range 0–200%
MAV Aperture Φ8 mm measurement / Φ10 mm external
SAV Aperture Φ4 mm measurement / Φ5 mm external
Measurement Time Approx. 1.5 seconds; SCI+SCE approx. 3.2 seconds
Repeatability ΔEab ≤0.02*
Inter-Instrument Agreement ΔEab ≤0.15*
Observer Angles 2° / 10°
Display 7-inch TFT capacitive touchscreen
Connectivity USB, Bluetooth 5.0, trigger interface
Storage 1,000 standards / 30,000 samples
Dimensions 370 × 240 × 260 mm
Weight Approx. 7.8 kg
Power AC 24 V, 3 A
Operating Environment 0–40°C, 0–85% RH non-condensing

*Under the manufacturer's specified measurement conditions.

Colour Measurement

Supports CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, βxy, DIN Lab99 and Munsell colour spaces.

Colour difference formulas include ΔEab, ΔEuv, ΔE94, ΔEcmc, ΔE00, DIN ΔE99 and ΔE Hunter.

Additional colour indices include whiteness, yellowness, metamerism, staining fastness, colour fastness, colour strength, opacity and 8° glossiness.

Standard Accessories

Power adapter, USB cable, user guide, PC software, white and black calibration cavity, 8 mm aperture and 4 mm aperture.

Optional Accessories

  • Micro printer

  • Foot switch

  • Rotating bracket

Downloads

Data Sheet Link

Shipping: 5-10 business days
