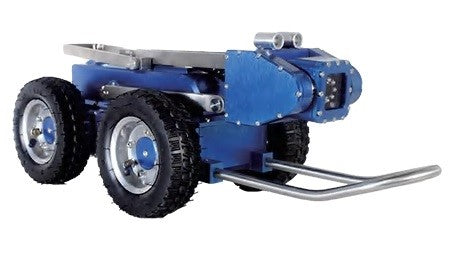

The K18 pipeline inspection robot is used for environmental inspection of
municipal pipelines, drainage pipes, sewage pipe tunnels, culvert ventilation pipes, etc ., and
supports inspection of pipes over 300 mm. Convenient and efficient operation, easy to use.
Features:
- The machine body is made of stainless steel with an airtight protective shell, featuring an IP68 waterproof design, making it suitable for submersion.

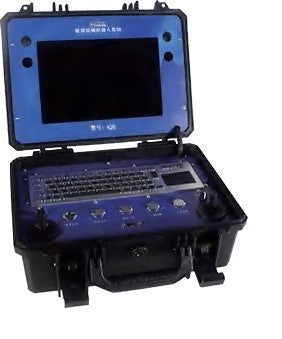

- It is operated in conjunction with a control box: an integrated industrial computer with a 10.1-inch high-definition color LCD screen, singlebutton control for forward and backward movements, 2-megapixel high-definition camera for infrared recording, and work condition information entry.
- The device can control a rotating camera and comes standard with a 100-meter cable reel, which aids in real-time monitoring of the working distance.
Technical Features:
|
Parameter |
Specification |
|
Applicable diameter |
Above 300 mm |
|
Obstacle crossing ability |
≤ 50 mm |
|
Camera |
1920 × 1080 resolution, 5 megapixels |
|
Lifting Height |
210 mm |
|
Size |
245 (W) × 215 (H) × 700 (L) mm |
|
Climb ability |
< 30° easy to climb |
|
Vehicle rotation |
360° |
|
Waterproof level |
IP68 |
|
Drivewheel width |
150 mm |
|
Work distance |
100 meters, no dead angle to work |
|
Camera rotation |
Capable of up to 120° vertical rotation |
|
Measuring meter |
Manual meter counter |
|
Net weight |
15.6 kg |
