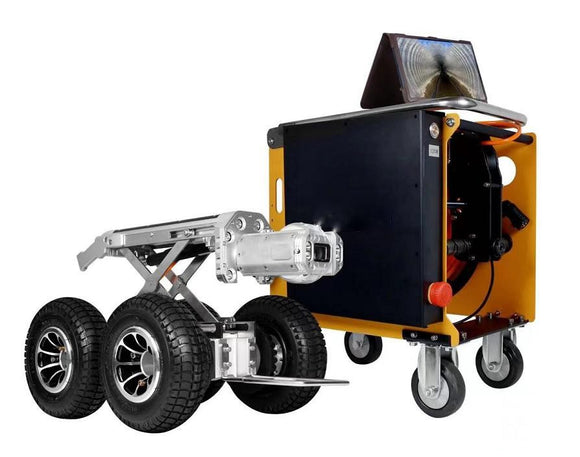

The pipe inspection crawler has intelligent wheels as platform, high definition
camera, high brightness LED lights, 10.4” Android tablet, full function software. For
different requirements, it could load sonde, mechanical arm, root cutter, gas detector
and other professional tools, to work in the pipes, underwater and other complex
conditions.
It has been widely used in pipe detection, mine inspection, tunnel inspection,
earthquake rescue, fir rescue, power inspection, anti-terrorism and other fields.
Features
1) Application pipes: from 200mm to 2000mm(20cm-2m), all materials
2) Powerful drive and high speed: 2 x 80W motors imported from Switzerland. Hollow
design of chassis gives it better obstacle climbing capacity. Max speed 35m per minute.

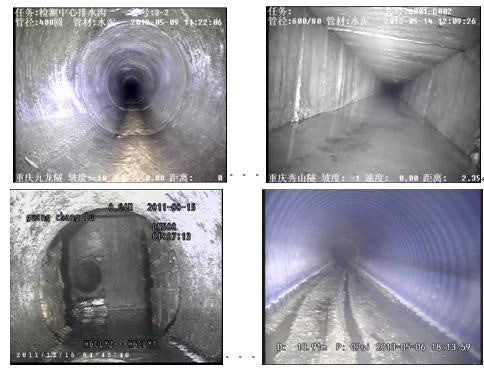

3) High definition picture, high brightness lights: With SONY CCD sensor, Pan 360° Tilt
270°, auto focus, 120 times zoom, adjustable LED lights, 10.4” touch screen, it could show
the live conditions in the pipes.
4) Easy to operate: Android operation system, stable and easy to use. The user could
input the information of pipes and defects with the keyboard; Cable drum with wheel sets
is easy to carry; Camera head has electrical lifting function.
5) Touch screen: It could be operated by touch screen, all in one design.
6) Safety design: Crawler with anti-explosion certificates, IP68 waterproof, working in 10
meters water, indicate the situation of crawler on screen. High sensitivity sensor to
prevent the crawler turned over in the pipe.
7) Smart design help to reduce the defective rate: The cable socket of crawler to cable
drum does not bear the pulling force; 1pc screw to fix the wheel; 4pcs pulleys around the
cable to protect the cable.8) Software: Developed by ourselves, powerful but easy to use.
9) Power supply: AC 110V to 240V, and DC 48V. Li-ion battery optional.
|
Category |
Item |
Specification |
|
Camera head |
Front camera |
SONY CCD sensor, FHD picture, auto focus |
|
Resolution |
1920 x 1080 pixels |
|
|
Rotation Pan |
360° Tilt 270° |
|
|
Zoom |
10 times optical, 12 times digital |
|
|
Lights |
Main 4pcs high brightness LED lights and auxiliary 14pcs subsidiary lights to make it clear in dark pipes. |
|
|
Laser range finder |
To measure the width of leakage (optional) |
|
|
Rear camera |
CCD sensor, color picture, 1920 x 1080 pixels. High brightness LED lights. |
|
|
Waterproof level |
IP68 |
|
|
Crawler |
Tire |
6pcs 75mm, 4pcs 130mm, 4pcs 200mm, 4pcs 230mm |
|
Application pipe |
Φ200 to Φ2000mm |
|
|
Drive |
6-wheels drive. Traction ≥80W, max 6700 RMP |
|
|
Climbing capacity |
≤45° |
|
|
Extension |
Connection for mechanical arm, sonde |
|
|
Lifting & platform |
1. Hollow design of platform 2. Stable X-shape lifting design, lifting height 200mm |
|
|
Wheel sets |
With 1pc screw, easy to install and remove |
|
|
Electric clutch |
Easy to take the crawler from pipes when it has defects |
|
|
Aviation socket |
The socket will not bear the pulling force, so the defective rate is much lower. |
|
|
Max speed |
35 meter per minute |
|
|
Waterproof level |
IP68 |
|
|
Dimension
|
545L x 180W x 165H mm (with 75mm tires) |
|
|
Weight |
18kg |
|
|
Control system
|
Display |
10.4” tablet, 2000 x 1600 pixels, built-in GPS module; human-machine interface could indicate the status of crawler in the pipes. Adjust the speed of crawler, forward, back, swerve, camera rotation, lifting, and brightness. |
|
Software |
It could show the status of crawler in the pipe, such as climbing, tilt, cable length, pressure in the crawler, height of crawler and so on. |
|
|
Control method |
Touch screen |
|
|
Recording |
It could pause the video recording to take a photo and resume to recording. |
|
|
Storage |
6G flash, 128G memory |
|
|
Indication |
It could indicate time, distance, inspection information and others simultaneously. |
|
|
Anti-shock |
Yes |
|
|
Weight |
≤1kg |
|
|
Cable reel
|
Cable drum |
AC/DC power supply. (Li-ion battery optional, 48V 20mAh, can work 6 hours) With meter counter to record the cable length. Accuracy ≤ +0.05% With wheels and brake, easy to carry. Four pulleys to protect the cable. |
|
Cable length |
Standard 120m. Max length 200m. |
|
|
Cable diameter |
Φ7.5mm |
|
|
Remote control
|
Remote control |
Could control the direction, speed, zooms, rotation, lifting, and brightness of crawler. Wireless distance 10m. Built-in GPS module. |
|
Report software |
Software (optional) |
Pipevide report software. |
