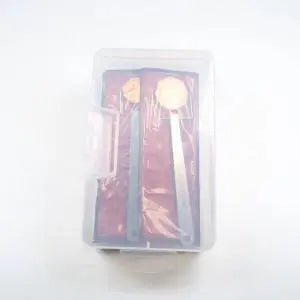

PIE Shaped Magnetic Particle Field Indicator Set

Product Name: PIE Shaped Magnetic Particle Field Indicator Set

Short Description: The PIE shaped magnetic particle field indicator is an essential tool for non-destructive testing using magnetic particle inspection. It comes in three different models to suit a variety of inspection needs and is designed to provide clear and accurate indications of the magnetic field distribution.

Product Features:

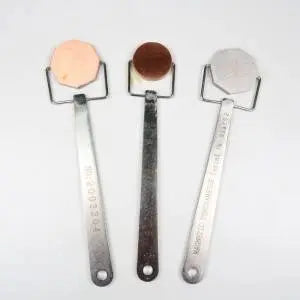

• Model 1 Indicator: Comprised of eight triangular pieces with one brass side and an eight-line surface on the other. Ideal for displaying magnetic leakage fields when sprayed with magnetic suspension.
• Model 2 Indicator: Similar in shape to Model 1 but features brass surfaces on both sides, allowing for versatility in handling and use during continuous magnetic inspection.
• Model 3 Indicator: Consists of four triangular pieces with a brass surface on one side and a four-wire surface with two round dots on the other. This model is especially useful for checking the performance and application methods of magnetic suspension and flaw detection equipment.

Applications:

• Used extensively in the fields of automotive, aerospace, and manufacturing to inspect for surface and near-surface discontinuities in ferromagnetic materials.
• Assists in determining the appropriate settings and operational methods for magnetic particle inspection equipment.
• Enables adjustment of magnetic field strengths and visualization of defect detection capabilities to ensure equipment efficacy.

ending on the inspection requirements and surface characteristics of the workpiece.

The PIE shaped magnetic particle field indicator is not only robust but also easy to handle, making it a preferred choice for professionals seeking reliable and efficient magnetic field indicators for thorough inspections.
