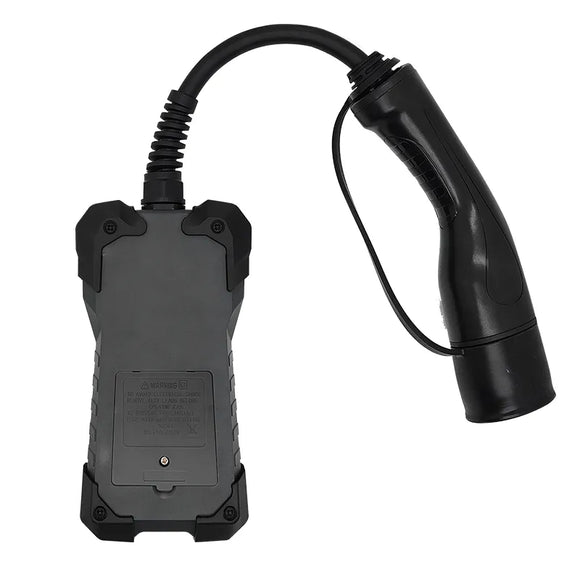

The PEAKMETER PM701E is a professional Type 2 EVSE test adaptor for commissioning, periodic inspection and fault finding on AC electric-vehicle charging stations. It simulates vehicle connection and charging states while providing safe measurement access for a compatible installation tester, multimeter or oscilloscope.
Key features

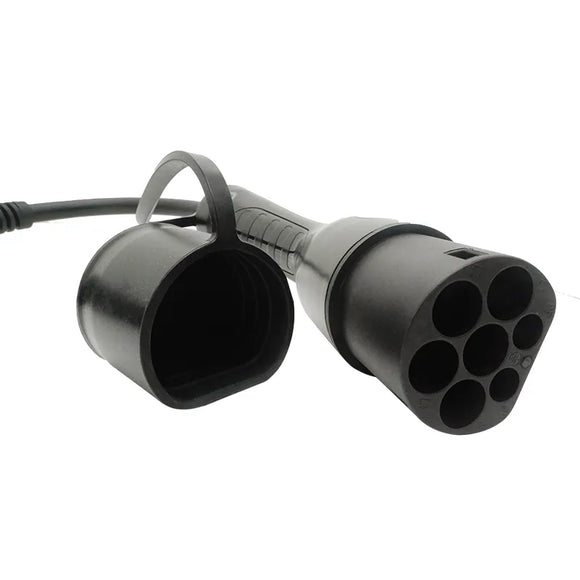

- Type 2 charging-station interface
- Simulation of charging states A, B, C and D
- 13 A, 20 A, 32 A and 63 A cable/current coding simulation
- Protective-earth pre-test and CP/PP signal access
- CP and PE fault simulation

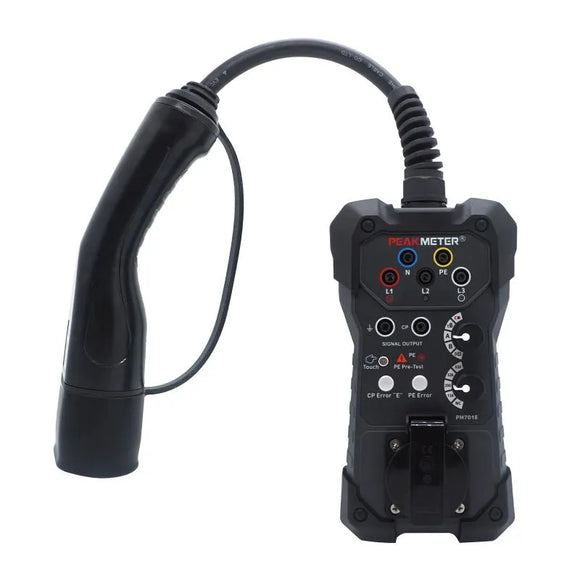

- 4 mm measurement terminals for single- and three-phase systems
- IP54 enclosure and CAT III 600 V rating
Applications
- Type 2 AC EV charger commissioning
- Routine EVSE electrical safety inspection
- Control-pilot and proximity-pilot troubleshooting
- Protective-earth and RCD verification with suitable test equipment
- Maintenance of domestic, commercial and public charging stations
Specifications
| Test object | Type 2 AC charging station |
|---|---|
| Charging-state simulation | A / B / C / D |
| Supported systems | Single-phase and three-phase |
| Measurement outputs | 4 mm terminals and European socket |
| Fuse | 10 A / 250 V |
| Ingress protection | IP54 |
| Safety rating | IEC/EN 61010-1, IEC/EN 61010-2-030; CAT III 600 V |
| Protocol standards | IEC/EN 61851-1; IEC/HD 60364-7-722 |
Included accessories
User manual and carry bag. A compatible installation tester or multimeter is required for numerical electrical measurements.
Important test limitation
The PM701E is an EVSE test adaptor and simulator, not a standalone multifunction installation tester. It does not itself provide a 6 mA DC / Type B RCD test function. Where that test is required, use it with suitable test equipment or select a tester/adaptor combination specifically supporting 6 mA DC residual-current testing.
