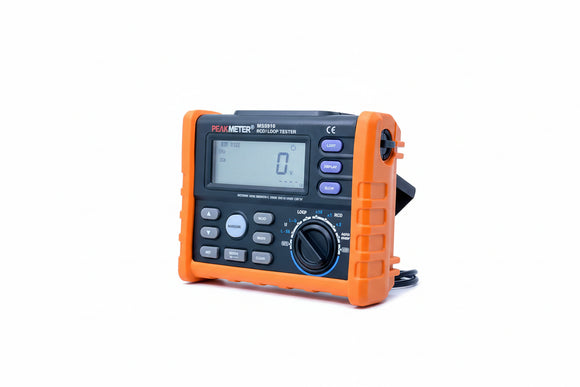

The PEAKMETER MS5910 combines residual-current-device testing and earth-fault loop resistance measurement in one portable professional instrument. It is designed for electrical installation inspection, commissioning, fault finding and periodic safety verification.
Key features
- Measures RCD trip-out current and trip-out time
- Measures contact voltage and loop resistance
- Selectable RCD test levels including 10 mA, 30 mA, 100 mA, 300 mA and 500 mA
- 0.5×, 1× and 5× RCD test-current multipliers
- AC voltage measurement up to 440 V
- Automatic and manual ranging
- Stored test results with USB 2.0 PC transfer
- Backlit display, automatic power-off and low-battery warning
- Over-temperature protection for field safety
Typical applications
- Electrical installation commissioning
- RCD and earth-leakage protection verification
- Earth-fault loop assessment
- Residential, commercial and industrial maintenance
- Fault finding following nuisance tripping or protection failures
Technical summary
| RCD test-current levels | 10 / 30 / 100 / 300 / 500 mA |
|---|---|
| Test-current multipliers | 0.5× / 1× / 5× |
| AC voltage | Up to 440 V |
| Frequency | DC, 45–65 Hz |
| Data interface | USB 2.0 |
| Power | 6 × 1.5 V AA batteries |
| Safety | IEC/EN 61010-1; CAT III 600 V / CAT II 1000 V |

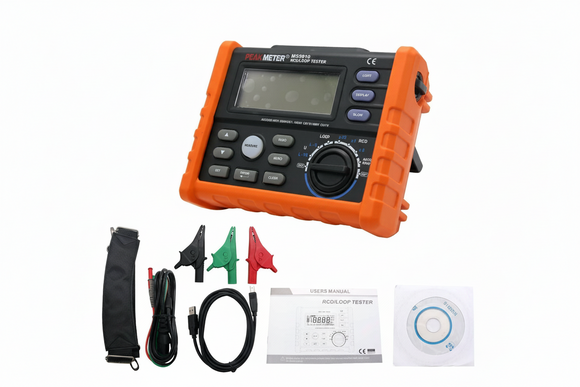

Standard accessories
Test lead, colour-coded crocodile clips, USB cable, PC software, carrying bag, lanyard and user manual.
Technical Datasheet
Download ITS Technical Datasheet - MS5910
Applications
- RCD trip testing and electrical safety verification
- Loop resistance and prospective fault-current checks
- Commissioning of residential, commercial and industrial installations
- Maintenance troubleshooting on distribution circuits
