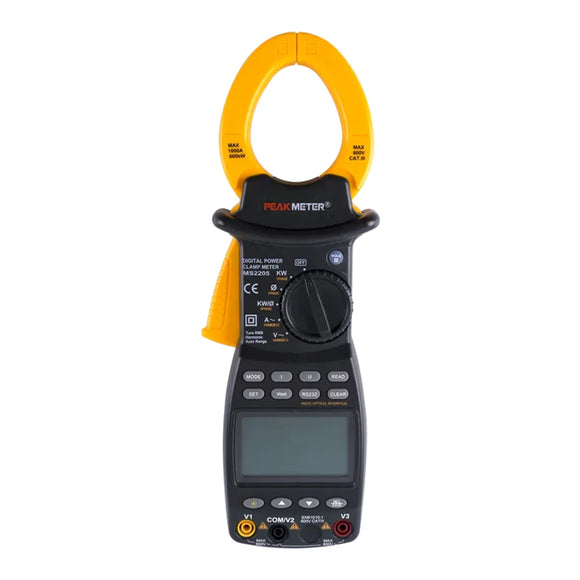

The PEAKMETER MS2205 is a professional True RMS power clamp meter for analysing single-phase and three-phase electrical systems. In addition to voltage, current and power measurements, it measures individual harmonics up to the 20th order and stores results for transfer to a Windows PC.
Key features
- Single-phase and three-phase power analysis
- True RMS AC voltage and current measurements
- Measures active, apparent and reactive power
- Power factor and frequency measurement
- Harmonic analysis from the 1st to the 20th order
- 100-group onboard data storage

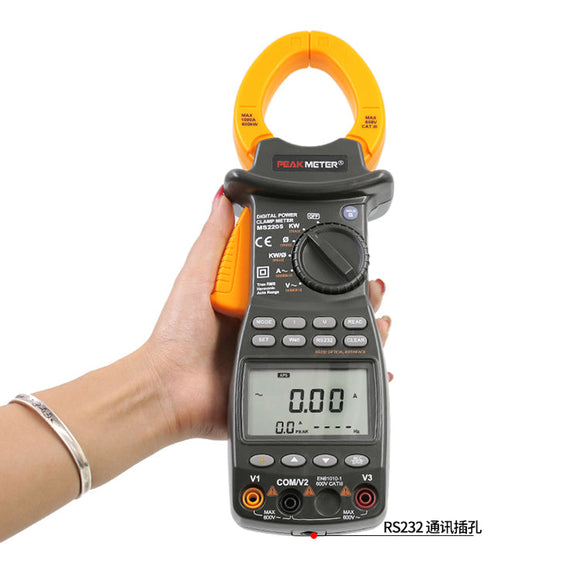

- RS232 interface with PC data-recording software
- Automatic and manual ranging
- Backlit 6000-count display
- 50 mm clamp jaw
Typical applications
- Industrial three-phase distribution-system diagnostics
- Solar inverter and photovoltaic power-system assessment
- Motor, generator and variable-load investigation
- Power-factor and harmonic troubleshooting
- Electrical commissioning and preventive maintenance
Technical summary
| AC voltage | 80 V / 180 V / 400 V / 600 V |
|---|---|
| AC current | 20 A to 1000 A |
| Active power | Up to 600 kW |
| Power factor | 0.3 to 1.0 |
| Frequency | 30 Hz to 1000 Hz |
| Harmonic analysis | 1st to 20th order, 45–65 Hz fundamental |
| Safety rating | CAT III 600 V |
| Interface | RS232, Windows PC software |
Standard accessories
Test leads, alligator clips, RS232 interface cable, PC software, carrying case and user manual. Final supplied configuration is subject to confirmation with the quotation.
Calibration
Optional CNAS calibration is available through Peakmeter's qualified external calibration partner. A CNAS calibration report is already available for the MS2205 model. If a certificate for the specific supplied serial-numbered unit is required, calibration must be ordered before dispatch and is quoted separately.
