Product Description
Overview
The ZD-410 and ZD-41 Concrete Thickness Gauges are designed for non-destructive measurement of concrete structures and other non-ferromagnetic materials. Ideal for inspecting cast-in-situ concrete slabs, walls, beams, columns, wood, and ceramics, these instruments offer precise thickness detection with a high-sensitivity receiving system and a mini receiver probe.
With user-friendly operation, a high-resolution display, and large data storage, these tools provide reliable real-time thickness readings and allow easy data transfer via USB for advanced analysis.
Key Features
-
High-sensitivity receiving system and mini probe for accurate detection
-
No need for coupling agents during measurement
-
Supports ordinary and compensated thickness inspection
-
Real-time display of test values
-
Stores up to 200,000 measurement points
-
USB data export to PC
-
Supports external probes for extended applications
-
Rechargeable lithium battery with long standby time
-
Easy-to-use interface with backlit display
Model Comparison
| Specification | ZD-41 | ZD-410 |
|---|---|---|
| Test thickness range (mm) | 20–999 | 20–450 |
| Measurement modes | Ordinary + Compensated | Ordinary only |
| Accuracy (mm) | ±1 (20–200 mm) | ±1 (20–200 mm) |
| ±2 (201–450 mm) | ±2 (201–450 mm) | |
| ±3 (451–600 mm) | — | |
| ±6 (601–999 mm) | — | |
| Data storage | 200,000 measuring points | — |
| Display resolution | 320×240 pixels | 320×240 pixels |
| Data communication | USB | USB |
| Main unit battery life | >26 hours | >26 hours |
| Probe battery life | >24 hours | >24 hours |
Physical Specifications
| Component | ZD-41 | ZD-410 |
|---|---|---|
| Main Unit | 219×92×106 mm, 700 g | Same |
| Launch Probe | Ø100×110 mm, 700 g | Same |
| Telescopic Rod | Ø28–470 mm (1.5 m) + 0.5 m ext | 400 g |

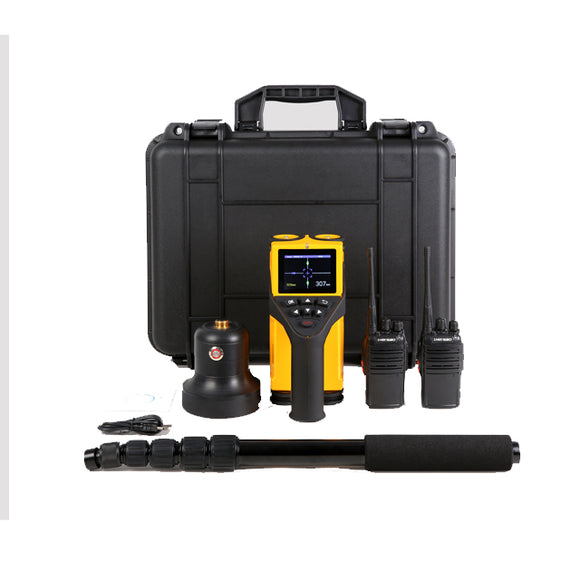

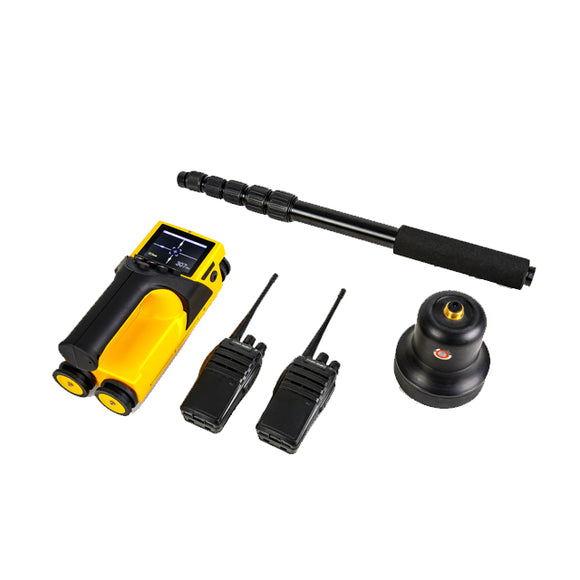

Standard Delivery Includes
-
Main Unit
-
Probe
-
USB Probe
-
Extension Rod
-
Charger
-
CD Software
-
User Manual
-
Carrying Case
-
Wireless Interphones
