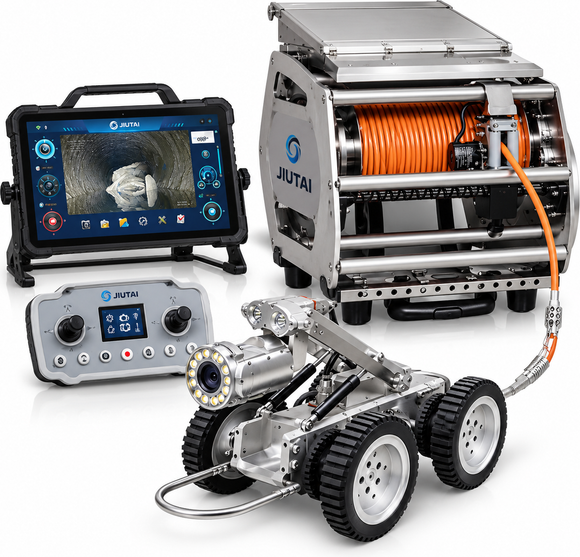

A professional pipeline crawler system for municipal sewer, drainage and industrial inspections. Front and rear cameras, an electric camera lift, powered reel and portable controller support live viewing, recording and inspection reports.
Features
- Pan-and-tilt front camera with 360° endless rotation and 220° tilt
- 10× zoom, autofocus and adjustable lighting
- Electric camera lift and interchangeable wheel sets
- Front and rear camera views with video and photo capture
- Powered cable reel with automatic payout and automatic or manual winding
- Inspection-report generation
Specifications
| Model | GT108 |
|---|---|
| Pipe diameter | 200–2,500 mm, depending on wheel and lift configuration |
| Cable options | 100–300 m |
| Front camera configurations | 2 MP or 4 MP |
| Camera movement | 360° endless rotation; 220° tilt |
| Zoom / focus | 10× zoom; autofocus |
| Rear camera | Included |
| Protection | IP68 crawler and camera |
| Travel speed | 0–25 m/min |
| Controller | 10.1-inch HD control system |
| Storage | 32 GB; supports up to 1 TB |
| Cable diameter | 7.8 mm |
| Wheel options | 100 / 150 / 200 mm |
| Power supply | 110 / 220 V |
| Optional functions | 512 Hz transmitter and laser measurement |
Applications
- Municipal sewer and stormwater surveys
- Wastewater and industrial pipeline inspection
- Blockage investigation and recorded condition assessments
