Product Description

The S1500 Series Portable Multi-Channel Thermocouple Data Logger is a powerful and intelligent temperature monitoring solution that supports up to 16 channels and multiple thermocouple types simultaneously. Designed for industrial applications, it allows real-time data viewing on the device’s 5-inch touchscreen as well as through a web browser via RJ45 LAN.

With high-speed sampling (as fast as 1 second), massive storage capacity, and versatile data export options (USB flash drive, SD card, or Ethernet), the S1500 provides reliable, efficient, and flexible data logging for a wide range of industries.

Key Features

  • Multi-Channel Input: Available in 8, 12, and 16-channel models

  • Supports Multiple Thermocouple Types: K, J, E, T, R, S, N, B, C

  • Wide Temperature Range: -270°C to 1820°C (depending on thermocouple type)

  • High-Speed Sampling: Up to 1-second intervals

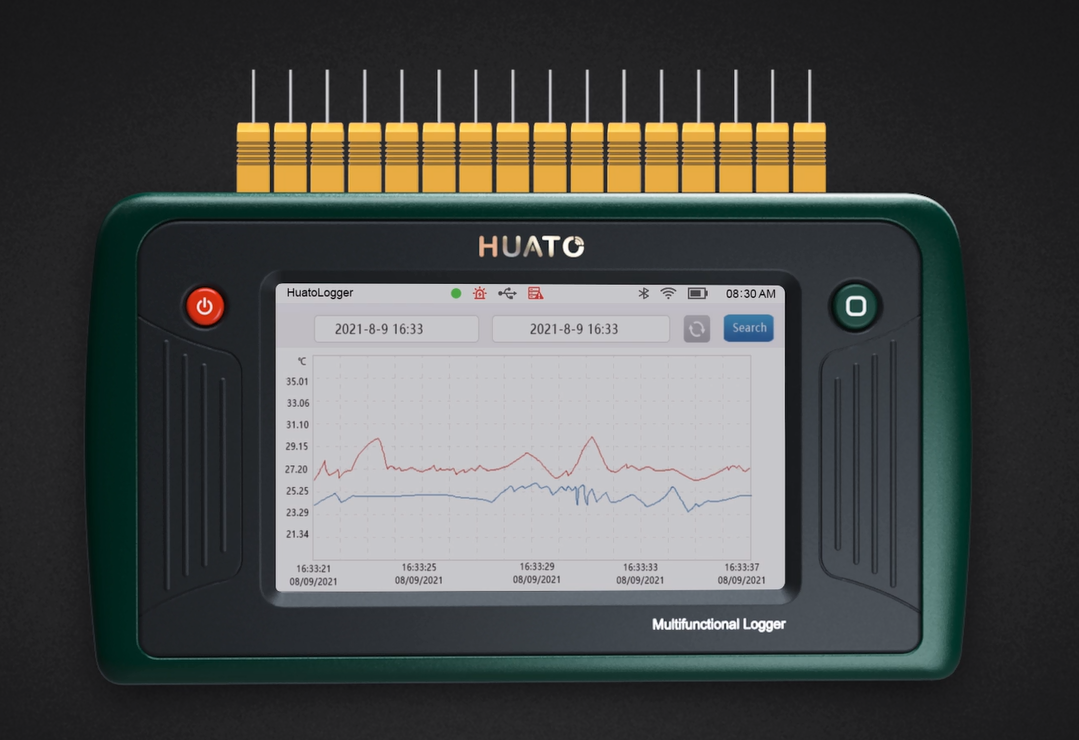

  • Real-Time & Historical Data Curves: Directly view trends on-screen or via LAN web page

  • Large Storage Capacity: Up to 10 million records (8-channel model)

  • Flexible Data Export: USB flash drive & SD card support

  • RJ45 Ethernet Connectivity: Real-time online monitoring, fast data transfer

  • Rechargeable 5000mAh Battery: Long-lasting portable performance

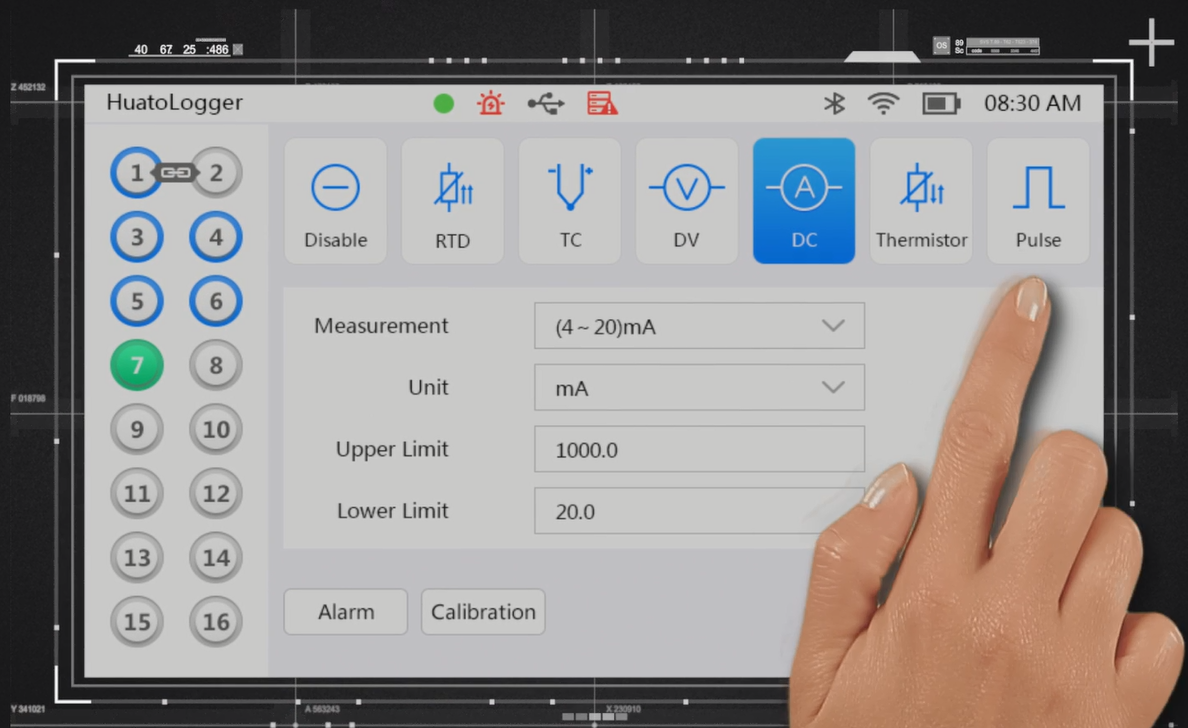

  • 5-inch Capacitive Touchscreen: 800 × 480 resolution, user-friendly interface

Model Options

  • S1508T – 8 Channels thermocouple input

  • S1512T – 12 Channels thermocouple input

  • S1516T – 16 Channels thermocouple input

Technical Specifications

Feature Details

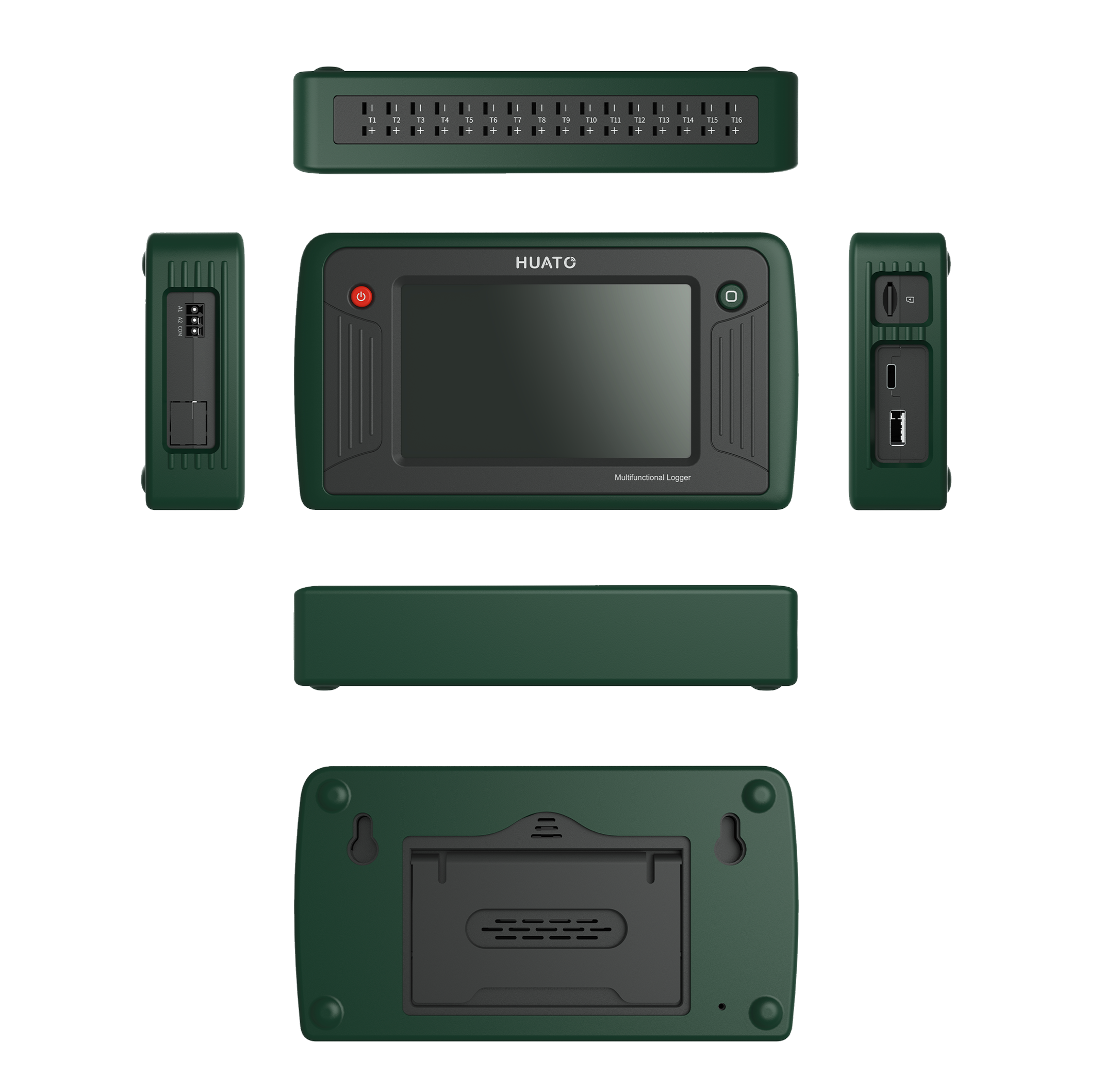

Dimensions 189.3 × 103.5 × 39 mm (with protective sleeve)
Display 5" capacitive touchscreen, 800 × 480 resolution
Channels 8 / 12 / 16 universal input
Storage Capacity 8 million total records; single file up to 100,000 records
Internal Memory 32GB
Data Export USB 2.0 flash drive, SD card (up to 32GB)
Ethernet RJ45, 10M/100Mbit/s, full/half duplex
Battery 5000mAh rechargeable
Sampling Rate 1s minimum
Recording Format CSV
Operating Temperature -10 to 50°C
Storage Temperature -20 to 60°C
Humidity Range 5%–95% RH (non-condensing)
Material PC/ABS + TPE housing

Thermocouple Input Ranges & Accuracy

  • K: -270 ~ 1370°C | ±0.5°C

  • J: -200 ~ 760°C | ±0.5°C

  • E: -270 ~ 978°C | ±0.5°C

  • T: -270 ~ 400°C | ±0.5°C

  • R/S: -50 ~ 1760°C | ±2°C

  • N: -270 ~ 1300°C | ±0.5°C

  • B: 50 ~ 1820°C | ±2°C

  • C: 0 ~ 2320°C | 425°C以下 ±4.5°C, 425–2320°C ±1.0%

Applications

The S1500 Series is widely used in:

  • Industrial workshops & process monitoring

  • Automobile manufacturing & testing

  • Semiconductor & electronics industries

  • Electrical equipment testing

  • IoT-based monitoring systems
