Overview
The EST-FG2 is a motorized force-test stand for controlled-speed tension and compression testing. It is available in vertical and horizontal configurations.
Applications
- Repeatable push and pull testing
- Insertion and extraction force
- Spring compression testing
- Fatigue and destructive testing
Specifications
- Maximum load: 650 N
- Stroke: 220 mm
- Speed: 30–720 mm/min
- Displacement resolution: 0.01 mm
- Manual, cycle, demonstration and locating modes
- USB, RS-232 and set-point outputs
- Power supply: 100–240 VAC
Models
- EST-FG2V: vertical configuration

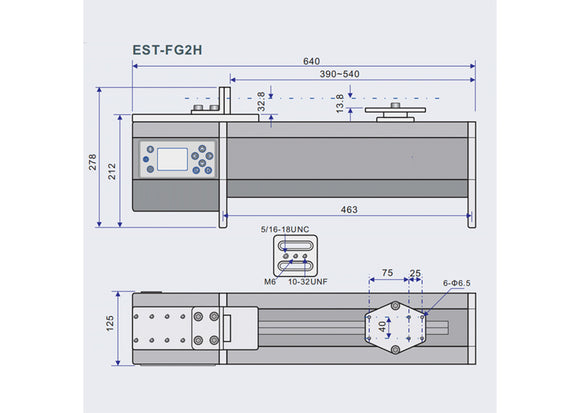

- EST-FG2H: horizontal configuration
A compatible force gauge and application-specific grips are required.
