Overview
Mikrometry S Type Tension and Compression Load Cells for tensile rigs.
Key Features
- S-shaped load cell for tension and compression
Applications
Use this S-type sensor in an aligned force-measurement assembly for tensile loads, suspended loads or bidirectional component testing. Pair it with a compatible indicator or transmitter. Check rated capacity, mounting threads and sensor calibration when replacing a load cell in an existing system.
- Tensile rigs
- hanging load measurement
- external force-gauge sensor replacement

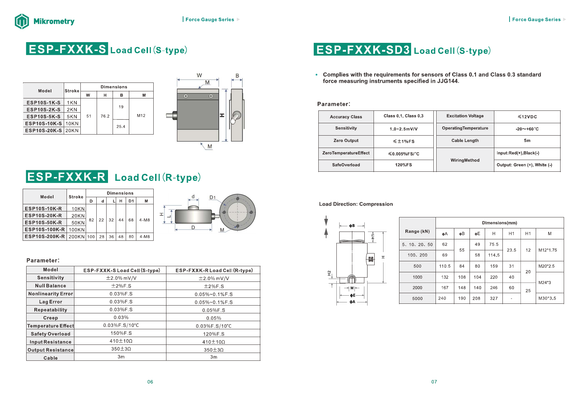

Specifications
| Technical specification |
|---|
| 1–20 kN capacity options |
| 3 m cable |
| 150% FS safe overload |
Models and Options
| SKU | Model / configuration |
|---|---|
| ITS-MIK-S-1KN | 1 kN |
| ITS-MIK-S-2KN | 2 kN |
| ITS-MIK-S-5KN | 5 kN |
| ITS-MIK-S-10KN | 10 kN |
| ITS-MIK-S-20KN | 20 kN |
Included and Optional Accessories
EFGS force gauge and compatible indicators. Confirm the selected package; optional equipment is quoted separately.
