Overview

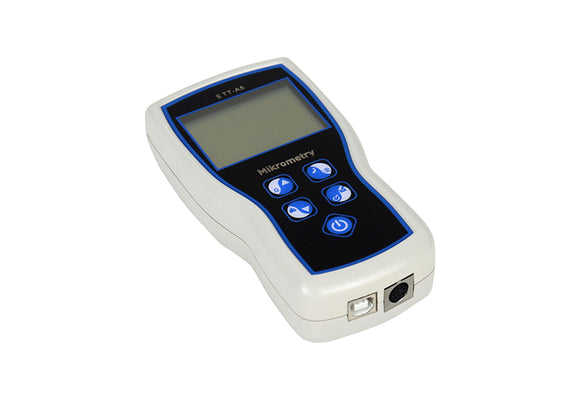

Mikrometry ETTA Digital Torque Gauge for screwdriver torque checks.
Key Features
- Digital torque measurement with chuck
- tracking and peak modes
- USB and RS232
Applications
Use the ETTA for torque checks on screwdrivers and small rotating components, within the selected sensor range. A suitable fixture holds the specimen and transmits torque to the sensor. Match the drive connection, measuring range and loading arrangement to the tool or assembly under test.
- Screwdriver torque checks
- small component rotational resistance
- manual assembly torque testing
Specifications
| Technical specification |
|---|
| Accuracy ±0.3% |
| 2 kHz sampling |
| 1,000 records |
| chuck 1–10 mm for ETTA1/5 and 2–13 mm for ETTA10 |
| Resolution 0.0001 / 0.0005 / 0.001 N·m according to capacity |
| 128 × 160 LCD |
| overload capacity 120% FS |
| 3.6 V NiMH battery |
| 5 V 1 A adapter, AC 100–240 V input |
| 145 × 73 × 34 mm |
| 0.7 kg |
Models and Options
| SKU | Model / configuration |
|---|---|
| ETTA1 | 0.05–1 N·m |
| ETTA5 | 0.25–5 N·m |
| ETTA10 | 0.5–10 N·m |
Included and Optional Accessories
EST-TT1 stand; ATT joint simulators and calibration accessories. Confirm the selected package; optional equipment is quoted separately.
Resolution by Model
| Model | Resolution |
|---|---|
| ETTA1 | 0.0001 N·m |
| ETTA5 | 0.0005 N·m |
| ETTA10 | 0.001 N·m |
