Overview

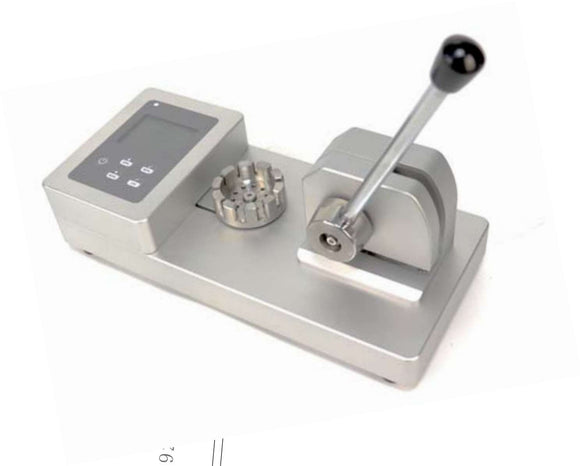

Mikrometry ETPT1000 Wire Terminal Pull Tester for crimp pull-off testing.
Key Features
- Dedicated wire-terminal pull test instrument with peak capture
Applications
Designed for wire-terminal pull-off testing during wiring-harness production and incoming inspection. The test assesses retention of a crimped terminal by applying tensile load to the wire and termination. Select a suitable terminal position and wire grip, and compare results with the applicable assembly specification.
- Crimp pull-off testing
- wiring harness quality control
- terminal retention checks

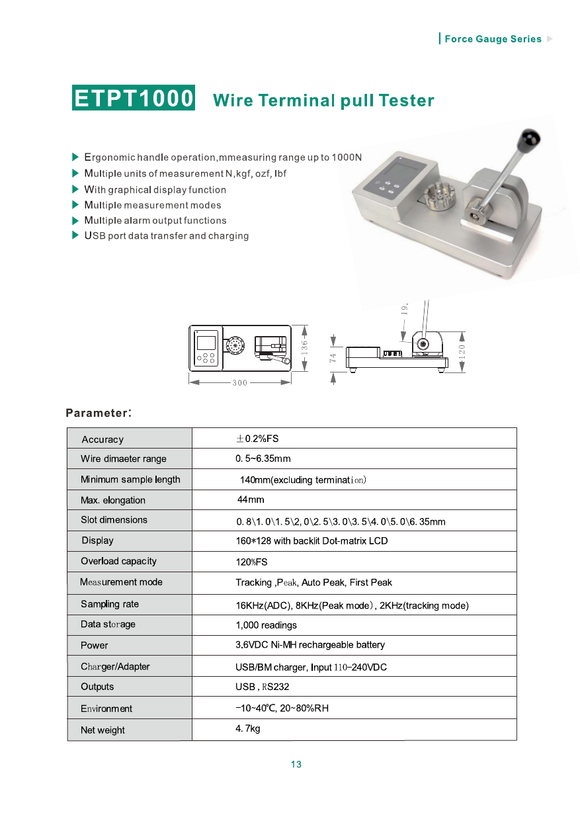

Specifications
| Technical specification |
|---|
| Capacity 1,000 N |
| wire diameter 0.5–6.35 mm |
| minimum sample length 140 mm excluding terminal |
| accuracy ±0.2% FS |
| USB/RS232 |
| 4.7 kg |
| Elongation stroke 44 mm |
| terminal slots 0.8, 1, 1.5, 2, 2.5, 3, 3.5, 4, 5 and 6.35 mm |
| safe overload 120% FS |
| tracking, peak, auto peak and first peak modes |
| 16 kHz ADC, 8 kHz peak and 2 kHz tracking |
| 1,000 readings |
| 3.6 V NiMH battery |
Models and Options
| SKU | Model / configuration |
|---|---|
| ETPT1000 | ETPT1000 |
